Additional Information
CPU Support Intel
CPU Socket FCLGA 4189-4/5(Socket P4/P5 or P+)
Solution 2U Server and Up
Dimensions 113.0 x 82.0 x 66.0 mm
Weight 440 g
Material Aluminum Fin stack with Heat Pipe embedded
Fan Dimension 60 x 60 x 25 mm
Speed At Duty Cycle 0~20%: 1700 ± 200 RPM
At Duty Cycle 50%: 4000 ± 15% RPM
At Duty Cycle 100%: 8000 -0 / +500 RPMRated Voltage 12V
Bearing 2 Ball Bearing
Power At Duty Cycle 0~20%: 1.20 W
At Duty Cycle 50%: 2.520 W
At Duty Cycle 100%: 9.60 WAir Flow At Duty Cycle 0~20%: 9.86 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 49.32 CFMNoise Level At Duty Cycle 0~20%: 19.32 dBA
At Duty Cycle 50%: 37.89 dBA
At Duty Cycle 100%: 54.26 dBAAir Pressure At Duty Cycle 0~20%: 0.860 mm-H2O
At Duty Cycle 50%: 4.760 mm-H2O
At Duty Cycle 100%: 21.50 mm-H2OLead Wire Pin Out Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)Thermal Grease Shin-Etsu 7762 Pre-printed
*All product specifications and product images are subject to change without notice.

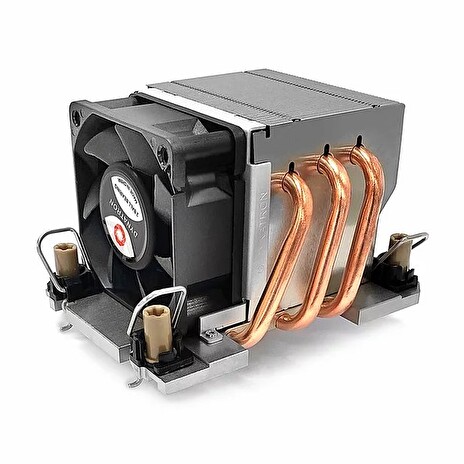

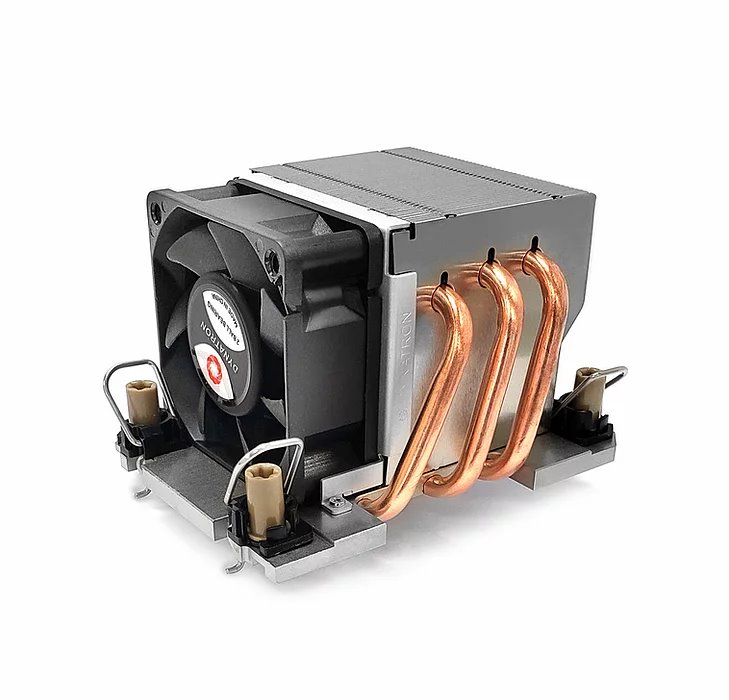

Dynatron N5 - 2U Active Cooler for Intel 4189, up to 205W
Záruka: 24 měsíců | PN: N5 | Kód: 3181580 | CZ distribuce
Additional Information
CPU Support
Intel
CPU Socket
FCLGA 4189-4/5(Socket P4/P5 or P+)
Solution
2U Server and Up
Dimensions
113.0 x 82.0 x 66.0 mm
Weight
440 g…
Momentálně nedostupné
Popis
Technické specifikace mohou být změněny bez předchozího upozornění. Obrázky mají pouze informativní charakter.
