Dynatron’s L3 All-in-one Enclosed 1U Server Liquid Cooler, up to 250W

Dynatron’s L3 All-in-one Enclosed 1U Server Liquid Cooler, up to 250W

Záruka: 24 měsíců | PN: L3 | Kód: 3509509 | CZ distribuce
L3       Expect Maximum Performance and High Efficiency from Dynatron’s L3 All-in-one Enclosed 1U Server Liquid Cooler. Three 40x40x28mm PWM fans with a maximum of 12000rpm fan speed. Support CPU TDP up to 250 Watts. Compatible with both Intel and AMD CPUs.   *DY-RT-AM4 Socket AM4 Retention bracket…
Momentálně nedostupné

Popis

L3

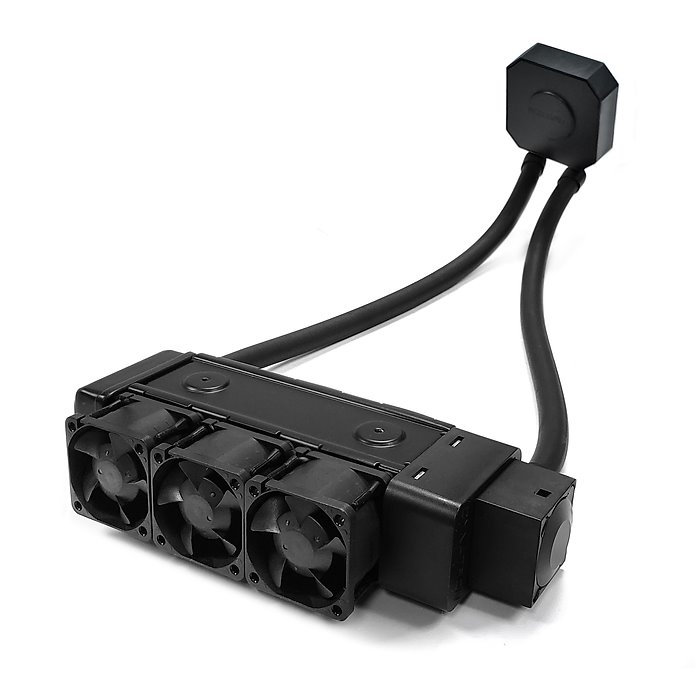

Expect Maximum Performance and High Efficiency from Dynatron’s L3 All-in-one Enclosed 1U Server Liquid Cooler. Three 40x40x28mm PWM fans with a maximum of 12000rpm fan speed. Support CPU TDP up to 250 Watts. Compatible with both Intel and AMD CPUs.



*DY-RT-AM4 Socket AM4 Retention bracket does not come with L3, but it can be purchased separately.



Additional Information

CPU Support

Intel/AMD

CPU Socket

Intel Socket LGA 2011/2066 Square/LGA 115X/1200/1356/1366/1700

AMD AM4/AM5/FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1

Solution

1U Server

Fan Dimension

40 x 40 x 28 mm

Speed

At Duty Cycle 0~20%: 3300±10% RPM
At Duty Cycle 50%: 5700±10% RPM
At Duty Cycle 100%: 12000±10% RPM

Bearing

2 Ball Bearing

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 0.72 W
At Duty Cycle 50%: 1.56 W
At Duty Cycle 100%: 8.40 W

Noise Level

At Duty Cycle 20%: 25.9 dBA
At Duty Cycle 50%: 37.8 dBA
At Duty Cycle 100%: 54.0 dBA

Air Flow

At Duty Cycle 0~20%: 5.92 CFM
At Duty Cycle 50%: 10.23 CFM
At Duty Cycle 100%: 21.53 CFM

Air Pressure

At Duty Cycle 0~20%: 1.73 mm-H2O
At Duty Cycle 50%: 5.17 mm-H2O
At Duty Cycle 100%: 22.91 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Water Pump

Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute

Radiator

Space Saver Light Weight Radiator

Cold Plate

Cold Plate Module with Copper Base

*All product specifications and product images are subject to change without notice.
