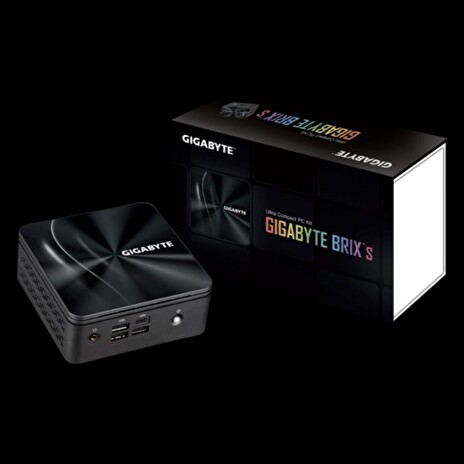

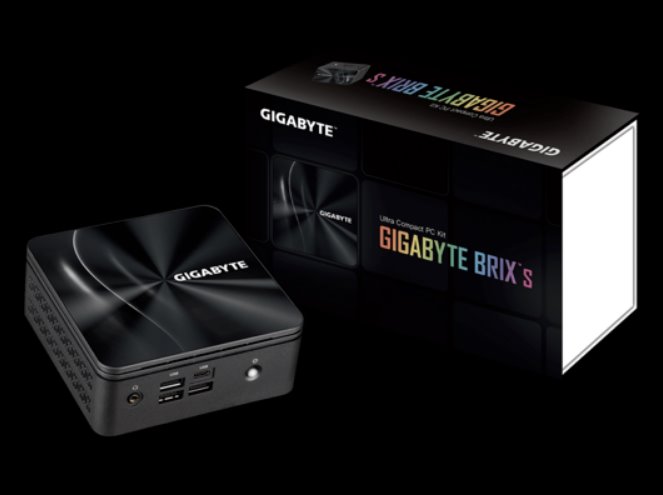

Gigabyte BRIX miniPC Ryzen R3-4300U (4C/4T) 2x SODIMM DDR4, M.2, WiFi6+ BT5.2, 2.5Gb LAN, HDMI,mDP, 6xUSB

Gigabyte BRIX miniPC Ryzen R3-4300U (4C/ 4T) 2x SODIMM DDR4, M.2, WiFi6+ BT5.2, 2.5Gb LAN, HDMI, mDP, 6xUSB

Záruka: 24 měsíců | PN: GB-BRR3H-4300 GB-XUVD BK | Kód: 3416028 | CZ distribuce

Dimension 4‎‎6.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7") Motherboard Size 105 x 110 mm CPU AMD RYZEN R3-4300U, 2.0G~4.1G Turbo, 4C/4T Core, 6MB L3 Cache AMD Radeon GPU 1400Mhz, 15W Memory 2 x SO-DIMM…

Momentálně nedostupné

Popis

Dimension

4‎‎6.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
Motherboard Size

105 x 110 mm
CPU

AMD RYZEN R3-4300U, 2.0G~4.1G Turbo, 4C/4T Core, 6MB L3 Cache
AMD Radeon GPU 1400Mhz, 15W
Memory

2 x SO-DIMM DDR4 slots
3200MHz
Max. 64GB
LAN

2.5G LAN (Realtek 8125)
Wifi Card

Intel WiFi6 AX200 / BT 5.2
Audio

Realtek ALC255
Video

AMD Radeon™ Graphics
HDMI Resolution (Max.)

HDMI2.0a ws HDCP 2.2
3840x2160@60Hz
Storage

Supports 2.5"" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x M.2 slot (2280_storage)
PCIe Gen3 X4 /SATA
Expansion Slots

1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O

1 x Power Button
1 x USB 3.2 type C (Gen2) w/ DP alt mode
3 x USB type A 3.2 (Gen1)
1 x head phone jack with MIC
Rear I/O

1 x HDMI(2.0a)
1 x mDP
1 x USB 3.2 type C (Gen2) w/ DP alt mode
2 x USB 3.2 type A (Gen 1)
1 x RJ45
1 x DC-In
Side I/O

1 x Kensington lock slot
1 x COM port
Power Supply

Input: AC 100-240V
Output: DC 19V/4.74A, 90W
Support OS

Win10 64bit
Environment

Operating Temperature 0°C to 35°C
Storage Temperature -20°C to +60°C

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
