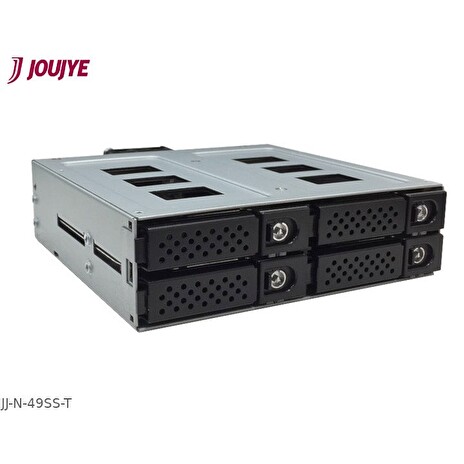

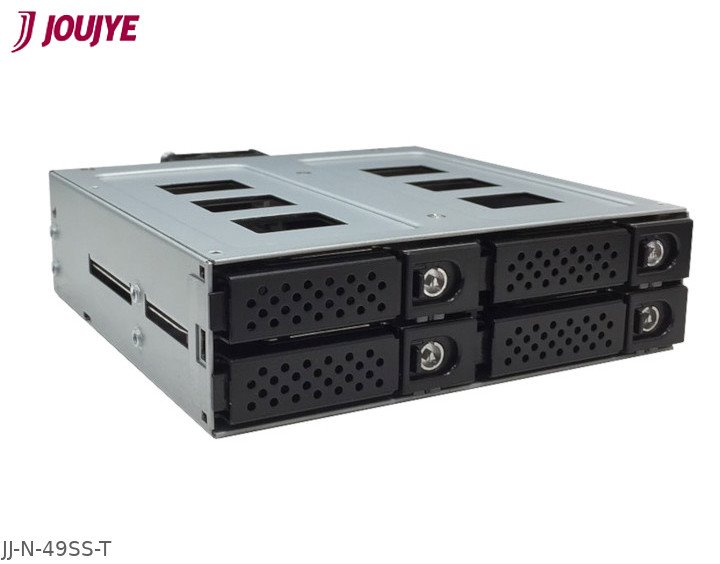

Jou Jye Backplane SAS3/SATA 4x 2,5"HDD do 5,25" pozice (nástupce JJ-1044M-SS)

Záruka: 24 měsíců | PN: JJ-N-49SS-T | Kód: 3009738 | CZ distribuce

SPECIFICATIONS: Model Name JJ-N-49SS-T 12G Form Factors 1 x 5.25" Bay for 4 x 2.5" HDD/SSD Support HDD types For 2.5" HDD/SSD For SAS I,II,III up to 12Gbit/s For SATA I,II,III up to 6Gbit/s Supported HDD height from 7mm up to 15mm…

Momentálně nedostupné

Popis

SPECIFICATIONS:

Model Name	JJ-N-49SS-T 12G
Form Factors	1 x 5.25" Bay for 4 x 2.5" HDD/SSD
Support HDD types	For 2.5" HDD/SSD For SAS I,II,III up to 12Gbit/s For SATA I,II,III up to 6Gbit/s Supported HDD height from 7mm up to 15mm
Interface	7pin data signal connector x 4 15pin power connector x 1
Hot swap	YES
Security Design	With security tri-angle metal key lock on each HDD/SSD tray
Transfer rate	Support up to SAS 12Gbps (SAS-III) / SATA 6Gbps (SATA-III)
HDD Connection	Cableless HDD connection
Material	Aluminum body & stainless carrier & metal front bezel
Specials	Each tray with anti-vibration springs
Cooling fan	40 x 40 x 20mm x 2
LED indication	Power ON: Green Accessing: Orange blinking
Fan failure LED	YES Red colour LED indication
Overheating LED	YES Red colour LED indication
Data cable	w/o cables
Operating system	Windows/Linux/Mac
Dimensions [mm]	159(L) x 145.8(W) x 41.6(H)
Weight	0.59 Kg
