GPU
AMD

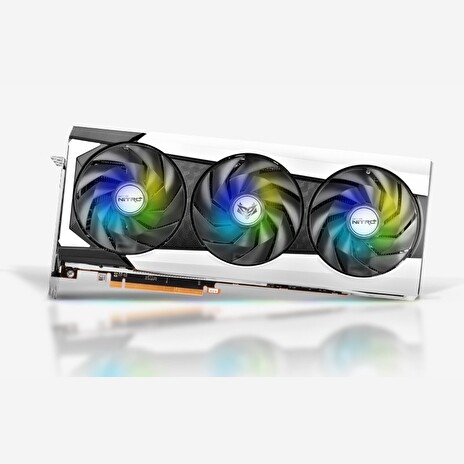

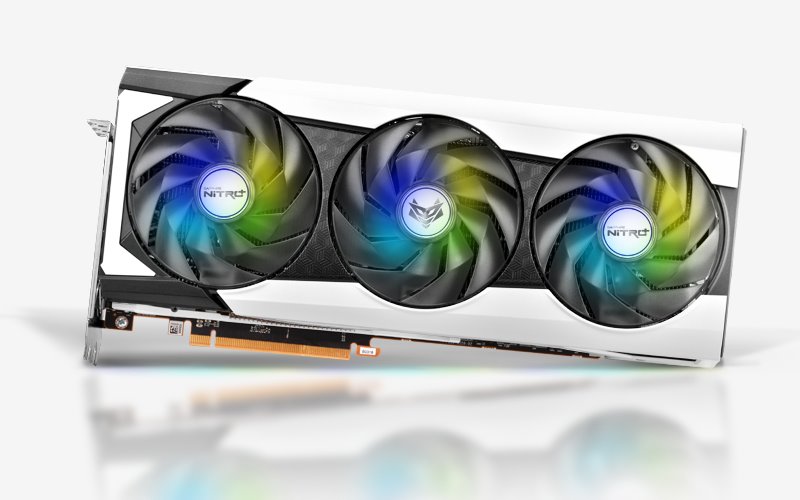

Radeon™ RX 6950 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2368 MHz
- Game Clock: Up to 2162 MHz
OC BIOS Up to 2435 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
5120
Infinity Cache
128MB
Ray Accelerators
80
Memory Size/Bus
16GB
GDDR6
Memory Clock
18 Gbps
Effective
Displays
Maximum 4
Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- Dual UEFI
Game Index
4K
Sapphire Features
- Dual BIOS
- OC BIOS
- Max Boost
- TriXX Software Switch
- Premium Digital Power Design
- Fuse Protection
- High TG Copper PCB
- Optimized Composite Heatpipe
- Tri-X Cooling Technology
- Intelligent Fan Control
- Precision Fan Control
- Backplate with ARGB
- Metal Backplate with Thermal Pad
- Frontplate Heatsink
- ARGB Fans
- Two-Ball Bearing Fans
- Angular Velocity Fan Blade
- Wave Fin Design
- V Shape Fin Design for GPU Cooling
- Die Casted Aluminum-Magnesium Alloy Frame
- Sporty White Design
- Graphics Card Supporter
- TriXX Supported
- Fan Check
- Fan Quick Connect
- TriXX Boost
- NITRO Glow
- External RGB LED MB Synchronization
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- 7nm GPU
- GDDR6 Memory
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- AMD FidelityFX™ Super Resolution (FSR)
- AMD Radeon™ Super Resolution
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
- High Performance 4K Gaming
Cooling
3 Fans
Form Factor
3.5 slot,
ATX
Dimension: 320(L)X 134.75(W)X 71.57 (H)mm
Dimension: 320(L)X 134.75(W)X 71.57 (H)mm
Power Consumption
405W Total Board Power
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 850 Watt Power Supply
- 2 x 8-pin + 1 x 6-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
