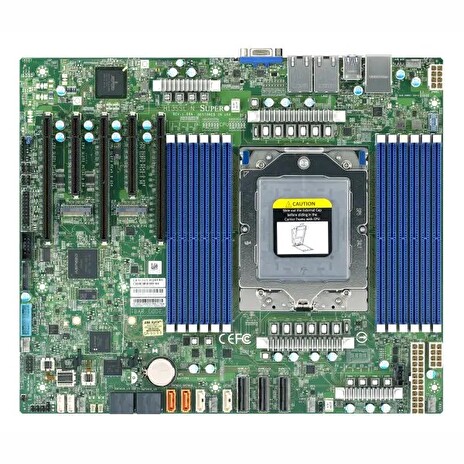

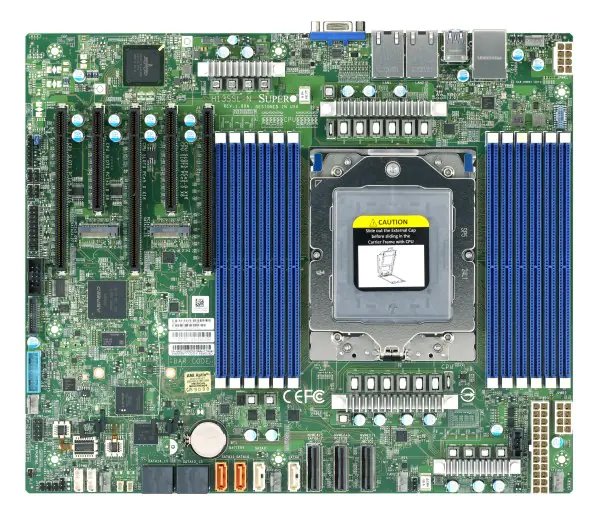

SUPERMICRO MB 1xSP5 (Epyc 9004), 12x DDR5, 8x SATA+6x NVMe/16xSATA+4xNVMe, 2x M.2, PCIe 5.0 (3 x16, 2 x8), 2x1Gb,IPMI

SUPERMICRO MB 1xSP5 (Epyc 9004), 12x DDR5, 8x SATA +6x NVMe/ 16xSATA +4xNVMe, 2x M.2, PCIe 5.0 (3 x16, 2 x8), 2x1Gb, IPMI

Záruka: 24 měsíců | PN: MBD-H13SSL-N-B | Kód: 3638708 | CZ distribuce

Key Features AMD EPYC™ 9004 series Processors System on Chip Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots 3 PCI-E 5.0 x16 2 PCI-E 5.0 x8 Up to 6 USB 3.0 ports(4 rear + 2 via header) 8 SATA3 6 PWM 4-pin Fans with tachometer status monitoring M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form…

Momentálně nedostupné

Popis

Key Features

AMD EPYC™ 9004 series Processors
System on Chip
Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
3 PCI-E 5.0 x16 2 PCI-E 5.0 x8
Up to 6 USB 3.0 ports(4 rear + 2 via header)
8 SATA3
6 PWM 4-pin Fans with tachometer status monitoring
M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110

Product SKUs
MBD-H13SSL-N	H13SSL-N

Physical Stats
Form Factor	ATX
Dimension	12" x 10.1" (30.48cm x 25.65cm)

Processor
CPU	AMD EPYC™ 9004 series Processors
Core	Up to 96/192

System Memory
Memory Capacity	12 DIMM slots Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type	4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes	16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
Network Controllers	Dual LAN with Broadcom BCM5720 1GBase-T

Input / Output
SATA	8 SATA3 (6Gbps) port(s)
LAN	1 RJ45 Dedicated IPMI LAN port
USB	6 USB 3.1 Gen1 port(s) (4 USB; 2 via header)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header
Others	1 MCIO (PCIe 5.0 x8/SATA3) Port(s) 2 MCIO (PCIe 5.0 x8) Port(s)

Expansion Slots
PCI-E	3 PCIe 5.0 x16 (in x16 slot), 2 PCIe 5.0 x8
M.2	M.2 Interface: 2 SATA/PCIe 5.0 x4 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Software	SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN

PC Health Monitoring
Voltage	VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED	UID/Remote UID BMC/IPMI Heartbeat LED
Other Features	RoT
FAN	6x 4-pin fan headers (up to 6 fans)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
