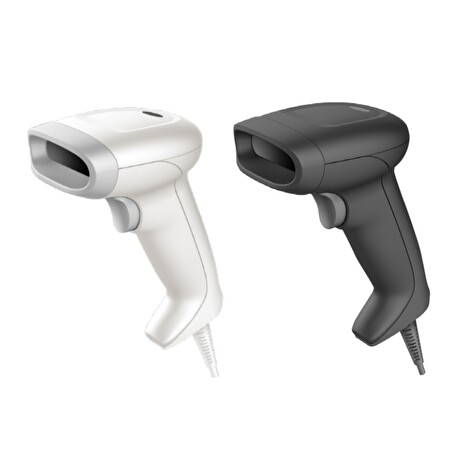

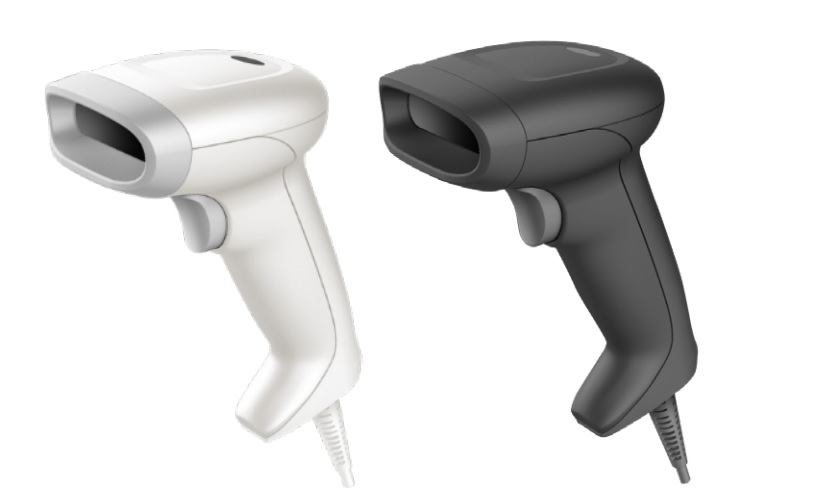

Voyager 1350g - KIT, 2D, USB, black

Affordable 2D Area Imager Scanner

MECHANICAL/ELECTRICAL

Dimensions (L x W x H):72.5mm×125mm×154mm (2.85 in 4.92 in 6.06 in)
Scanner Weight:130 g (4.58 oz)
Input Voltage:5 ± 0.5VDC
Operating Power:2 W (400 mA @ 5V DC)
Standby Power:0.55 W (110 mA @ 5V DC)
Host System Interfaces:USB, RS-232

ENVIRONMENTAL

Operating Temperature:0°C to 50°C (32°F to 122°F)
Storage Temperature:-40°C to 60°C (-40°F to 140°F)
Electrostatic Discharge (ESD) (Scanners and Cradles):±8 kV indirect coupling plane, ±15 kV direct air
Humidity:0% to 95% relative humidity, non-condensing
Tumble Spec:250 0.5 m (1.6 ft) tumbles (impacts)
Drop:Engineered to withstand 1.2m 2times drop to concrete
Environmental Sealing:IP40
Light Levels:0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern:Area Image (1280 x 800 pixel array)
Motion Tolerance:up to 75 cm/s for 13 mil UPC at optimal focus
Scan Angle:
*Horizontal:48° nominal;
*Vertical:30° nominal
Roll, Pitch, Skew:±180°, ±60°, ±65°
Print contrast:25%
Decode Capabilities:Reads standard 1D, PDF, 2D, and DotCode symbologies
Note:Decode capabilities dependent on configuration.

Warranty:3-year factory warranty
