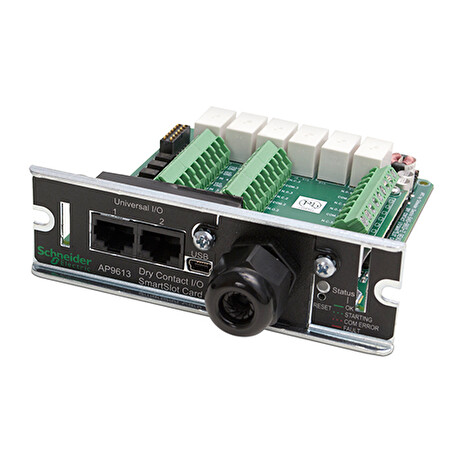

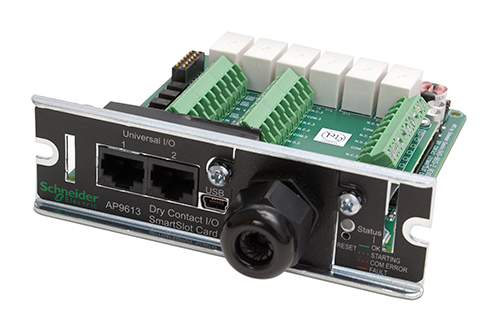

APC V/ V karta SmartSlot s beznapěťovými kontakty

The Schneider Electric™ Dry Contact I/O SmartSlot Card is a management product that provides the following features:

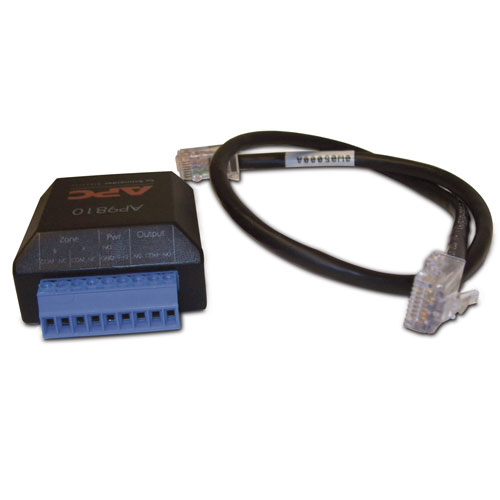

• UPS status information presented through 6 fully isolated output relays. This is expandable to 8 using universal input/output ports and optional Dry Contact I/O Accessory (AP9810)
• UPS control and testing by using 4 opto-isolated input contacts. An additional 4 input contacts (non opto-isolated) may be added using universal input/output ports and an optional Dry Contact I/O Accessory (AP9810)

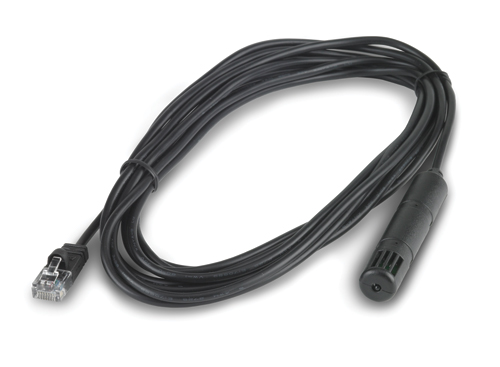

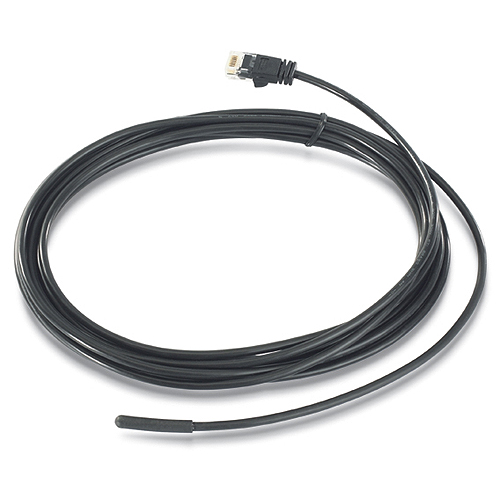

• UPS control and testing based on environmental conditions using universal input/output ports and an optional Environmental Sensor (AP9335T or AP9335TH)
• screw terminal connectors for easy integration into various management systems

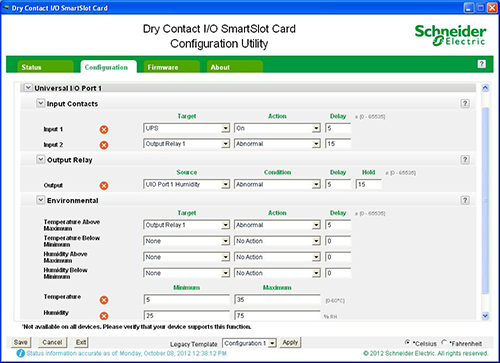

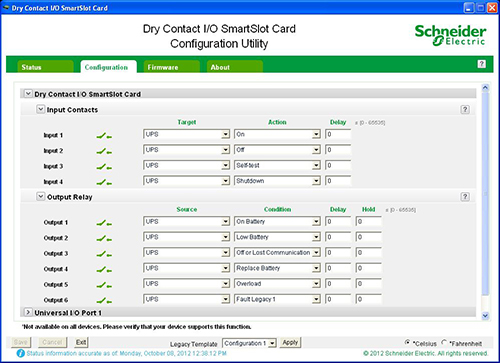

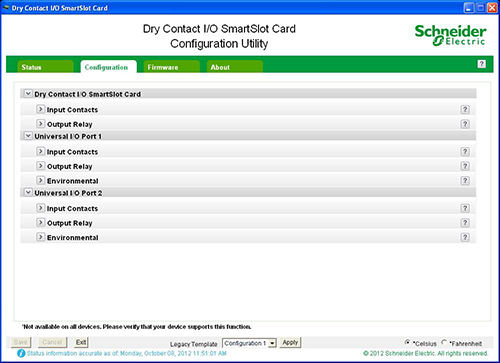

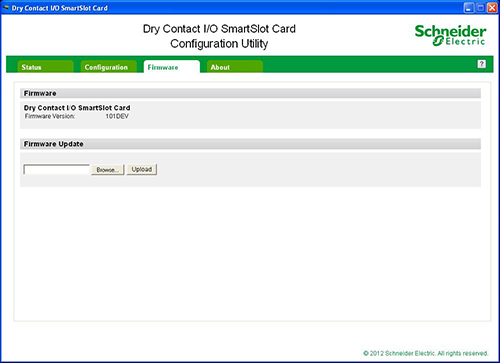

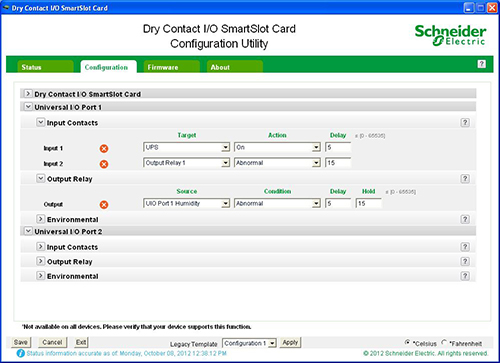

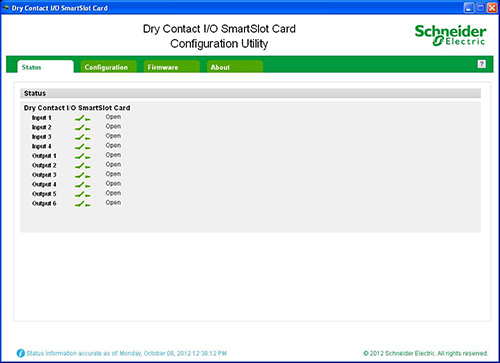

• a Configuration Utility user interface to customize your setup

The following UPS lines have been officially tested with the AP9613 Relay I/O Card by APC:
Smart-UPS Model Types with the following prefix:
SU
SUA
SURT
SURTA
SURTD
SUVT/Galaxy 3500 (Must use Configuration #2 - same as Symmetra)
SUM
SMT
SMX
SRC

All single phase Symmetra Model Types including:
Symmetra
Symmetra RM
Symmetra LX

Certain three phase Symmetra PX Model Types including:
20kW Symmetra PX All-In-One
40kW Symmetra PX
80kW Symmetra PX
48kW Symmetra PX All-In-One
100kW Symmetra PX
160kW Symmetra PX

!!!Karta není zatím kompatibilní s novou řadou online UPS SRT!!!
