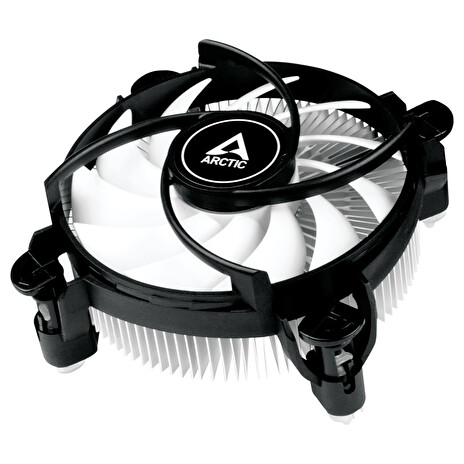

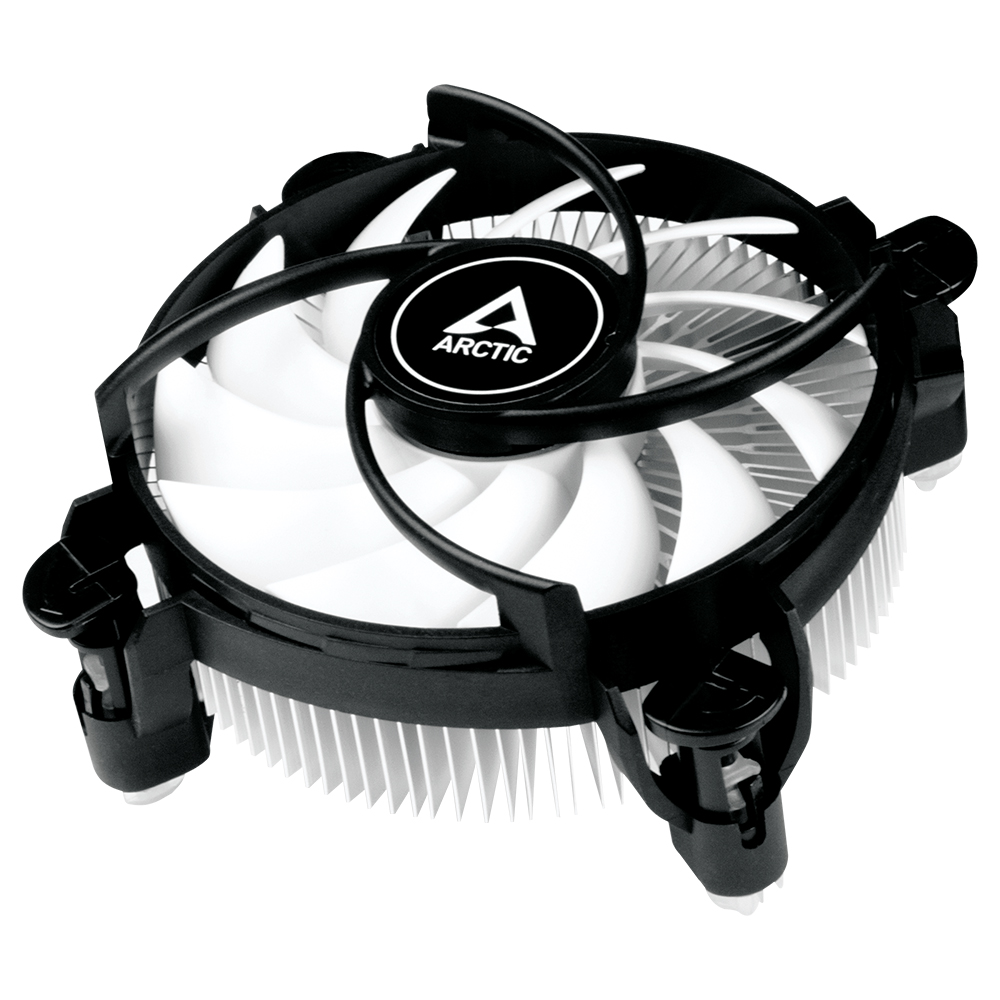

ARCTIC Alpine 17 LP Low-Profile CPU-Cooler for Intel® Socket 1700
DESIGNED FOR INTEL ALDER LAKE & RAPTOR LAKE
The Alpine 17 LP is specifically adapted and optimised for Intel's
new LGA1700 CPUs. The radial cooler and the mounting spots are
designed so that the centre of the cooler is centred on the CPU.
Thus, the processor’s hotspot in all variants is covered by the
aluminium core.
LOW PROFILE DESIGN
With an installation height, measured from the CPU to the top of
the cooler, of only 42.9 mm, the Alpine 17 LP is particularly
suitable for small and narrow housings. It is space-saving, easy to
assemble and allows full access to all components close to the CPU.
The compact Top-Blower CPU cooler also cools areas around the CPU
socket and is predestined for HTPC and Mini-ITX cases.
GOOD PRICE-PERFORMANCE RATIO
Thanks to its flat radial heat sink and sophisticated fan design,
the Alpine 17 LP offers performance at a very low price.
PROVEN TECHNOLOGY
ARCTIC uses a proven heat sink design in the Alpine 17 LP. The
extra fine Y-shaped, fanned-out cooling fins ensure a considerable
increase in the cooling surface and optimisation of airflow. A
novel production process makes it possible to extrude the fins even
more finely without making them unstable. This enables the
production of a powerful, but at the same time, very flat and
compact radial heat sink.
WIDE RPM RANGE
The Alpine 17 LP features an updated motor with a very wide
PWM-controlled rpm range from 300 up to 3000 rpm. At low system
load, the fan switches off almost completely. This keeps the noise
level at a minimum while guaranteeing maximum cooling performance
under stress.
HIGH- QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany,
friction inside the bearing is reduced and higher efficiency is
achieved. As a result, there is less heat development, less bearing
noise and the service life of the fan is extended.
PRE-APPLIED MX-4 THERMAL PASTE
The popular, very efficient MX-4 thermal compound is already
pre-applied and not only ensures a quick and clean installation -
the PREMIUM Performance Thermal Paste also eliminates air pockets
and ensures perfect transfer of the exhaust heat from the processor
IHS to the Alpine 17 LP's heat sink. The MX-4 from ARCTIC is
characterised above all by its very good long-term durability.
EASY AND TOOL-FREE INSTALLATION
Installation is very easy thanks to the push pins and the cooler’s
light weight. The cooler can be easily mounted on the built-in
motherboard without any tools. Thanks to the proven snap-in
mechanism of the push pins, the cooler can be reliably installed at
all times, even in the case of vibrations.
TECHNICAL SPECIFICATIONS & MANUAL
General data
Compatibillity
Intel Socket: 1700
Ram Clearance: unlimited
Heatsink
Heatsink: Radial
Material: Aluminum
Thermal paste: MX-4 Pre-applied
Fan
Fan Diameter: 92 mm
Speed: 300 - 3000 rpm
Bearing: Fluid Dynamic Bearing
Noise Level: 0.5 Sone
Current/ Voltage: 0.18 A
Connector: 4-Pin PWM-Fan-Connector
Speed Control: Pulse Width Modulation - PWM
Dimensions & Weight
Installation Height: 42.9 mm
Length: 95 mm
Width: 95 mm
Height: 53.5 mm
Weight: 183.5 g
Packaging
Width: 99 mm
Height: 61 mm
Length: 99 mm
Weight: 0.261 k
ARCTIC Alpine 17 LP – CPU Cooler for Intel socket
Záruka: 24 měsíců | PN: ACALP00042A | Kód: 3584659 | CZ distribuce
ARCTIC Alpine 17 LP Low-Profile CPU-Cooler for Intel® Socket 1700
DESIGNED FOR INTEL ALDER LAKE & RAPTOR LAKE
The Alpine 17 LP is specifically adapted and optimised for Intel's new LGA1700 CPUs. The radial cooler and the mounting spots are designed so that the centre of the cooler is centred on the CPU. Thus, the processor’s hotspot in all…
Cena s DPH | 372,– Kč |
---|---|
Cena s DPH pro registrované | 348,– Kč |
Cena bez DPH | 307,– Kč |
Skladem
Doprava od 120 Kč
Přepravní službou do 24.4.od 120 Kč
Termín dodání závisí na výběru dopravy a vytíženosti přepravní společnosti.
