ASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FI
ASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FIASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FIASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FIASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FIASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FIASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FI

ASUS MB Sc LGA1200 TUF GAMING H570-PRO WIFI, Intel H570, 4xDDR4, 1xDP, 1xHDMI, WI-FI

Záruka: 24 měsíců | PN: 90MB16L0-M0EAY0 | Kód: 3052941 | CZ distribuce
TUF GAMING H570-PRO WIFI Intel H570 (LGA 1200) ATX gaming motherboard with PCIe 4.0, three M.2 slots, 8+1 DrMOS power stages, Intel WiFi 6, Realtek 2.5 Gb Ethernet, HDMI 2.0, DisplayPort™, rear USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type C, Thunderbolt™ 4 support, SATA 6 Gbps and Aura Sync RGB lighting. Intel LGA 1200 socket: Ready…
Cena s DPH4 841,–
Cena bez DPH4 001,– Kč
Skladem
Doprava od 61 Kč
 Přepravní službou do 21.4.od 120 Kč
 Na výdejním místě do 22.4.od 61 Kč
Termín dodání závisí na výběru dopravy a vytíženosti přepravní společnosti.
ks

Popis

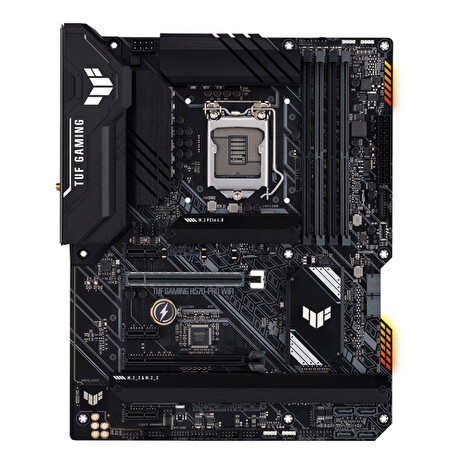

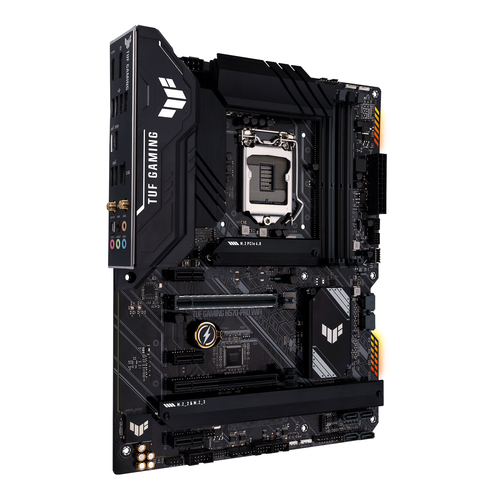

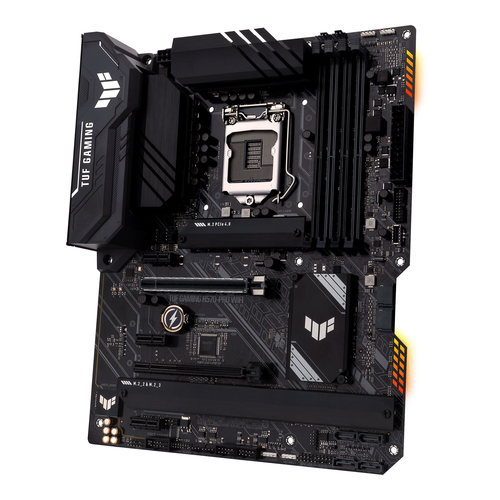

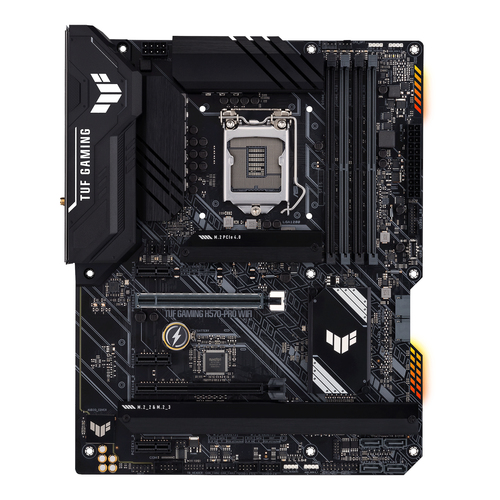

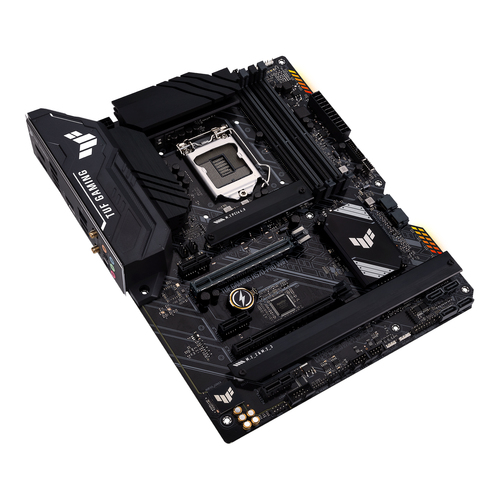

TUF GAMING H570-PRO WIFI

Intel H570 (LGA 1200) ATX gaming motherboard with PCIe 4.0, three M.2 slots, 8+1 DrMOS power stages, Intel WiFi 6, Realtek 2.5 Gb Ethernet, HDMI 2.0, DisplayPort™, rear USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type C, Thunderbolt™ 4 support, SATA 6 Gbps and Aura Sync RGB lighting.

  • Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core™ processors
  • Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility
  • Next-gen connectivity: PCIe 4.0, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4™ support
  • Made for online gaming: Intel WiFi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

CPU

Intel Socket LGA1200 for 11th Gen Intel Core™ Processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel H570 Chipset

Memory

Memory Channels:4DDR4 (Dual channel)
Max Memory Size:128GB
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.
* 10th Gen Intel Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x DisplayPort 1.4**
1 x HDMI 2.0**
* Graphics specifications may vary between CPU types.
** Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.

Expansion Slots

Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel 11th processors support PCIe 4.0 x16
- Intel 10th processors support PCIe 3.0 x16
Intel H570 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
3 x PCIe 3.0 x1 slots
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.

Storage

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel H570 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
6 x SATA 6Gb/s ports
* Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
** To enable Intel Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Intel Wi-Fi 6,
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax),
Supports 2.4/5GHz frequency band,
Bluetooth v5.0 or later,

USB

Rear USB:Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover

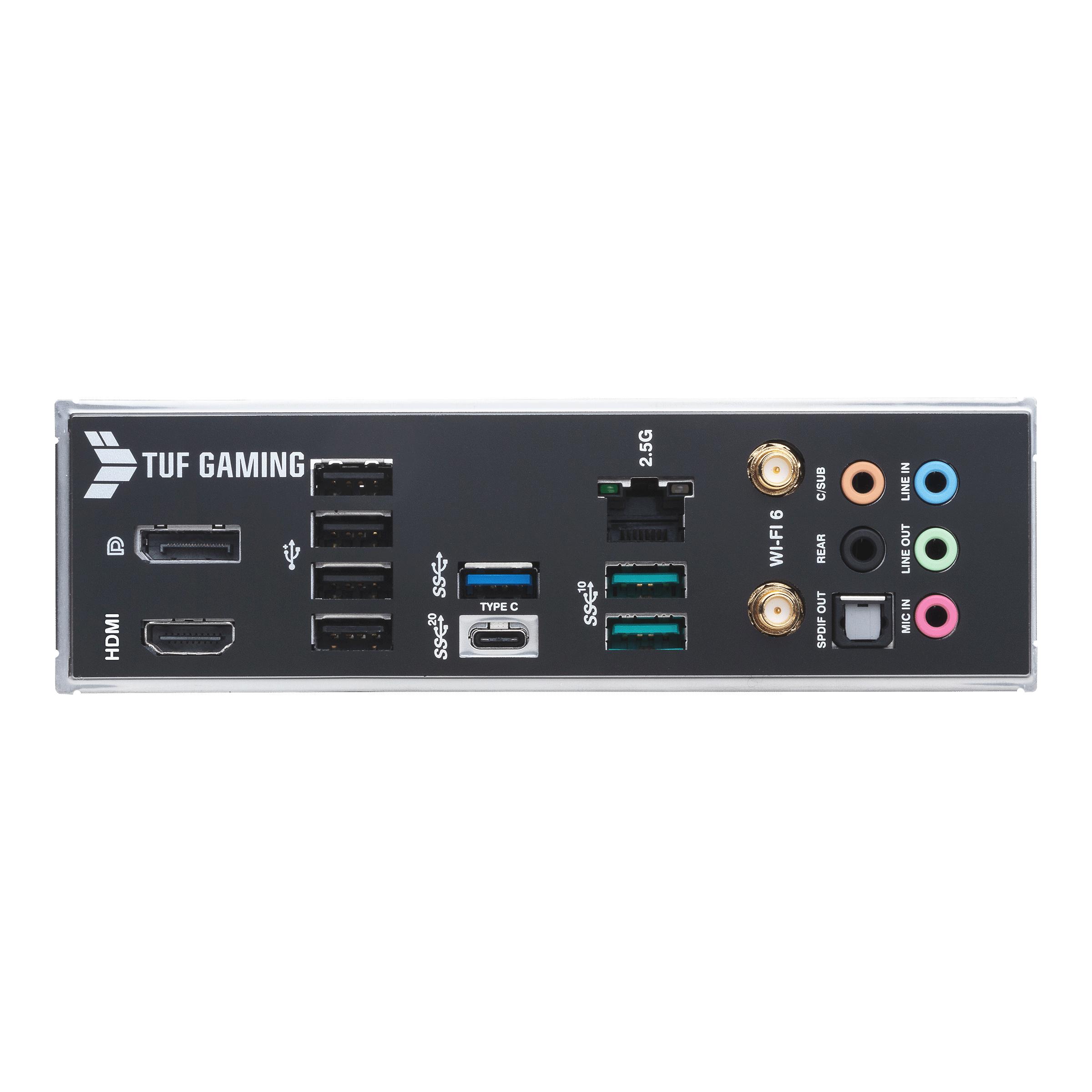

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

Special Features

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- TUF LANGuard
- Overvoltage Protection
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers

Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

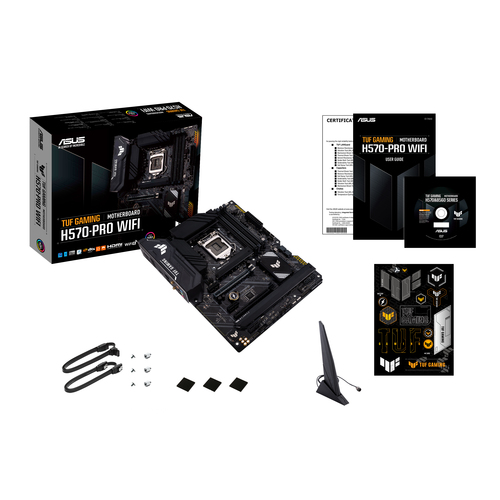

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber Packages
2 x M.2 SSD screw packages
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual

Operating System

Windows10 64-bit

Form Factor

ATX
30.5cm x 24.4cm

Technické specifikace mohou být změněny bez předchozího upozornění. Obrázky mají pouze informativní charakter.
