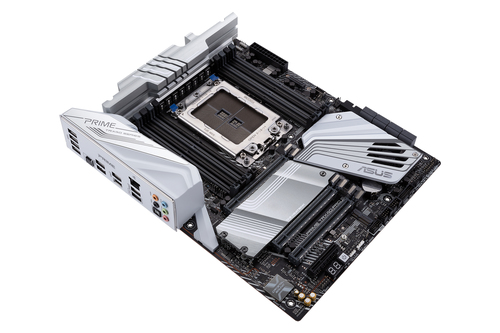

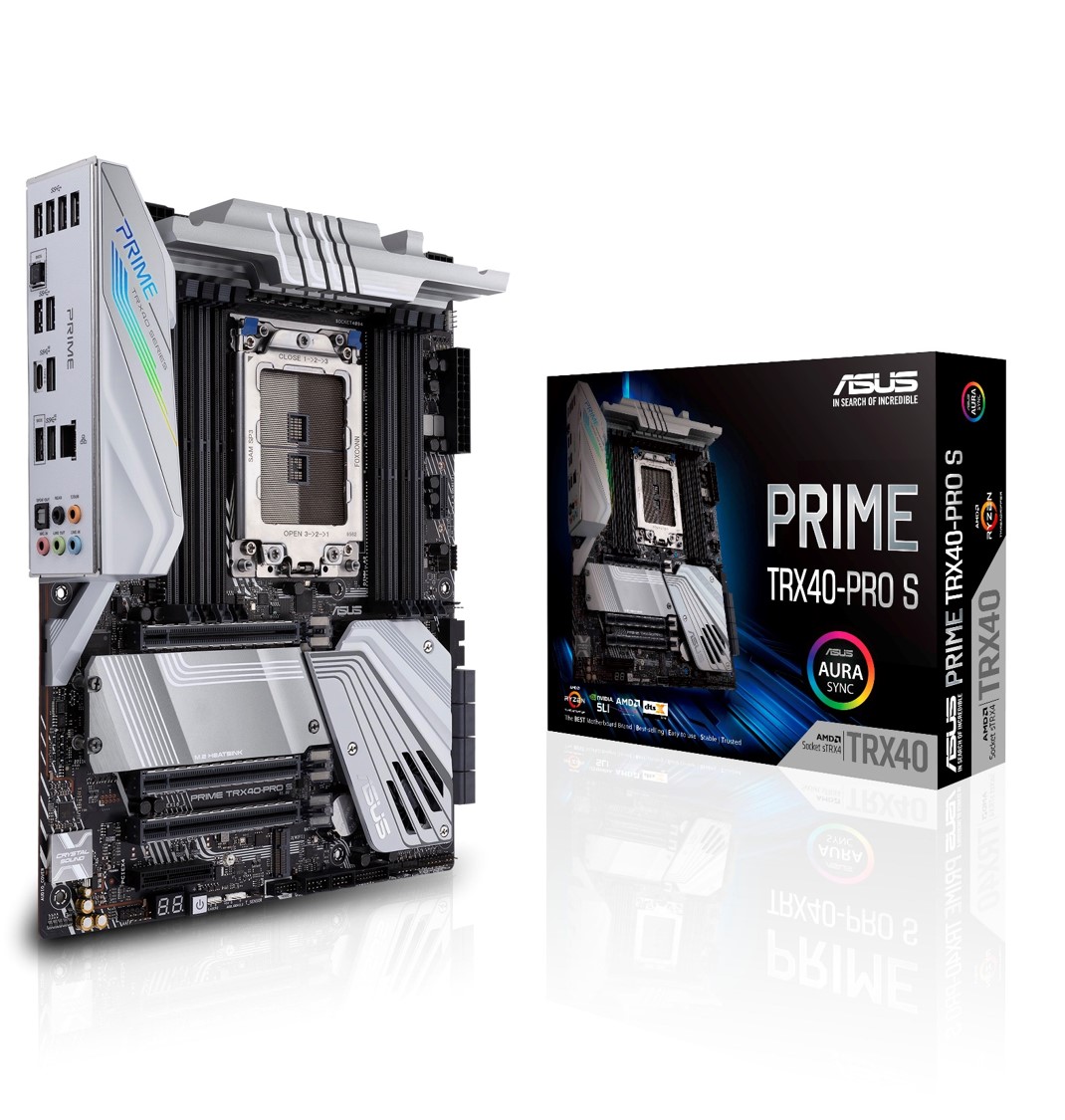

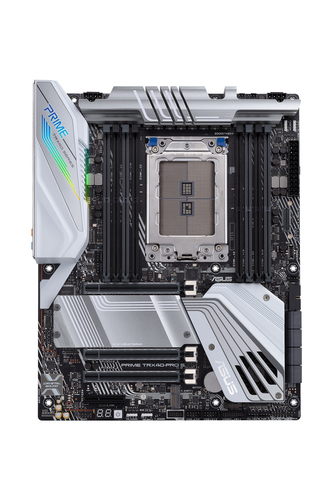

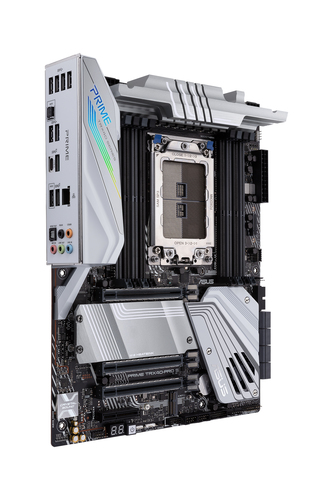

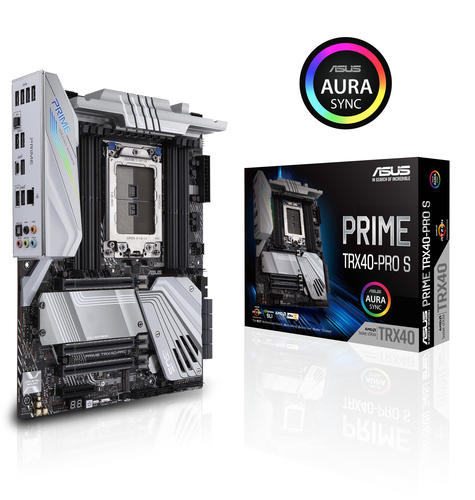

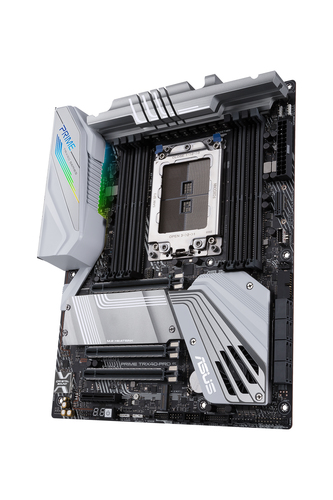

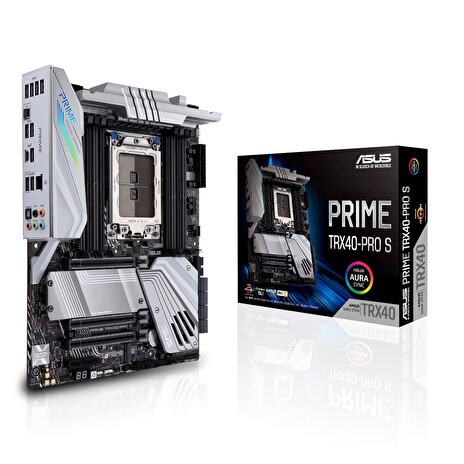

PRIME TRX40-PRO S
AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors (up to 64 cores) with 16 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting
- AMD Socket sTRX4: Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 cores)
- Robust power design: 16 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery
- Comprehensive thermal solutions: VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers
- Next-gen connectivity: Three PCIe 4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C™ front-panel connector, and Intel Gigabit Ethernet
- Intelligent tuning: ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels
TECHNICAL SPECIFICATIONS
| CPU | AMD Socket sTRX4 for 3rd Gen AMD Ryzen™
Threadripper™ Series Desktop Processors * Supports CPU up to 64 cores * Refer to www.asus.com for CPU support list |
| Chipset | AMD TRX40 |
| Memory | 3rd Gen AMD Ryzen™
Threadripper™ Series Desktop processors 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Multi-GPU Support | Supports NVIDIA Quad-GPU SLI
Technology Supports NVIDIA 2-Way SLI Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 3rd Gen AMD Ryzen™
Threadripper™ Series Desktop processors 3 x PCIe 4.0 x16 (x16/x16/x16) * |
| AMD TRX40 chipset 1 x PCIe 4.0 (x4 mode) |
|
| Storage | 3rd Gen AMD Ryzen™
Threadripper™ Series Desktop processors: 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) |
| AMD TRX40 chipset: 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| LAN | Intel I211-AT ASUS Turbo LAN Utility ASUS LAN Guard |
| Audio | Realtek ALC S1220 8-Channel High
Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in) |
| Audio Feature: - DTS X:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
|
| USB Ports | AMD Ryzen™ Threadripper™
Processors: 4 x USB 3.2 Gen 2 port(s) (4 at back panel, 3 x Type-A+1 x Type-C) AMD TRX40 chipset: 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset: 6 x USB 3.2 Gen 1 port(s) (2 at back panel, Type-A, 4 at mid-board) AMD TRX40 chipset: 2 x USB 2.0 port(s) (2 at mid-board) ASMedia USB 3.2 Gen 1 controller: 4 x USB 3.2 Gen 1 port(s) (4 at back panel, Type-A) GL852G USB Hub: 2 x USB 2.0 port(s) (2 at mid-board) |
| Special Features | ASUS Dual Intelligent
Processors 5-Way Optimization by Dual Intelligent Processors
5: - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App ASUS SafeSlot - Protect your graphics card Investment |
| AURA: - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Addressable Gen 2 Header |
|
| ASUS Exclusive Features
: - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Crystal Sound 3 - Armoury Crate - Pre-mounted I/O Shield |
|
| ASUS Quiet Thermal
Solution: - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution - ASUS Fan Xpert 4 |
|
| ASUS EZ DIY: - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack™ - ASUS UEFI BIOS EZ Mode - Multi-language BIOS |
|
| ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
|
| Back I/O Ports | 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™) 6 x USB 3.2 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack™ Button(s) |
| Internal I/O Ports | 1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x USB 3.2 Gen 2 front panel connector |
| Accessories | User´s manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x Q-Connector 1 x Extension Cable for RGB strips (40 cm) 1 x Extension cable for Addressable LED 1 x CPU Fan Holder |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WfM 2.0, WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Note | Recommend you to install add-on cards on (PCIEX16_1 and PCIEX16_2) or (PCIEX16_1 and PCIEX16_3) to enjoy 2 way SLI™ or CrossFireX™. |
