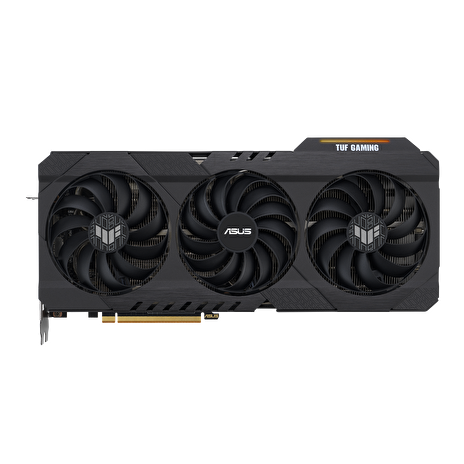

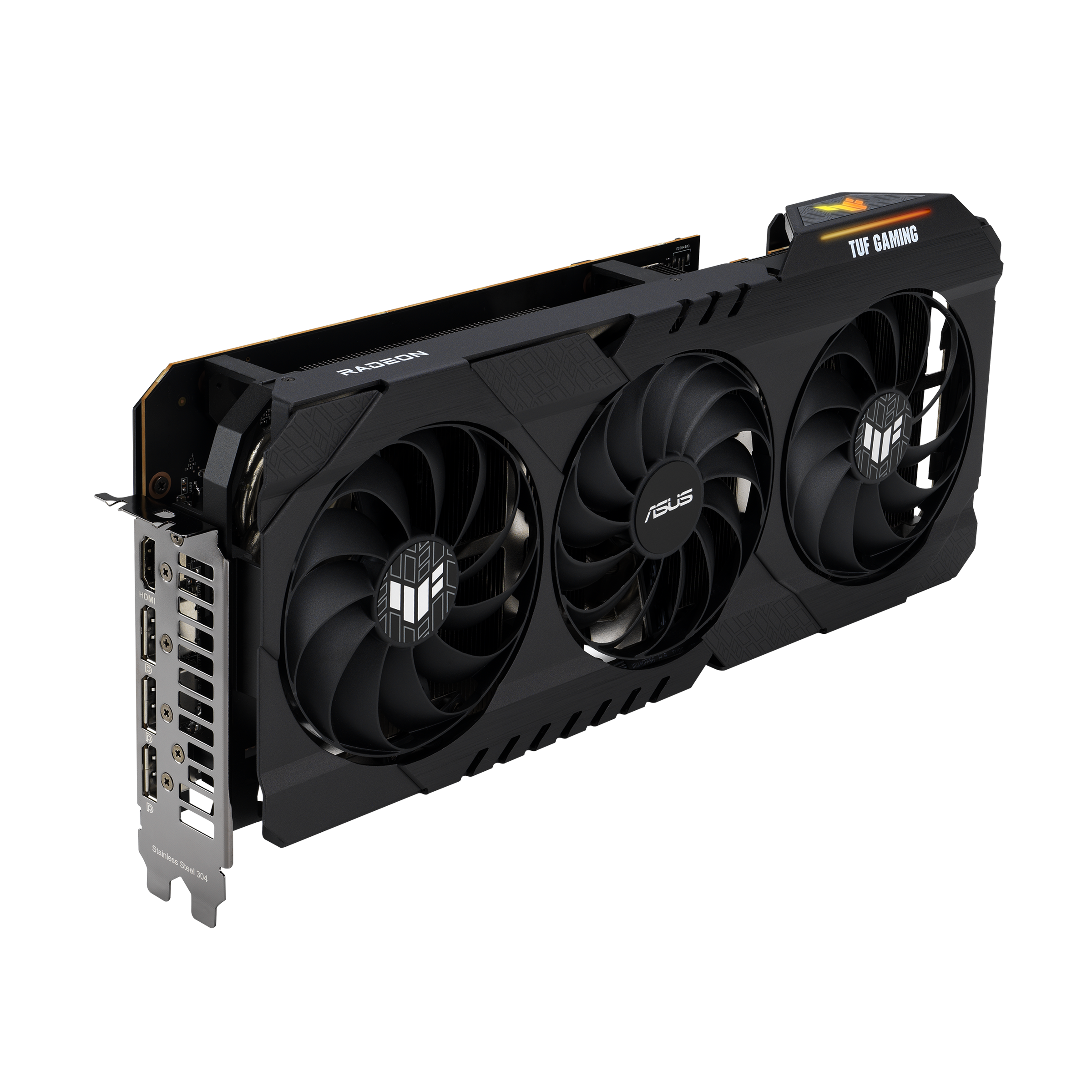

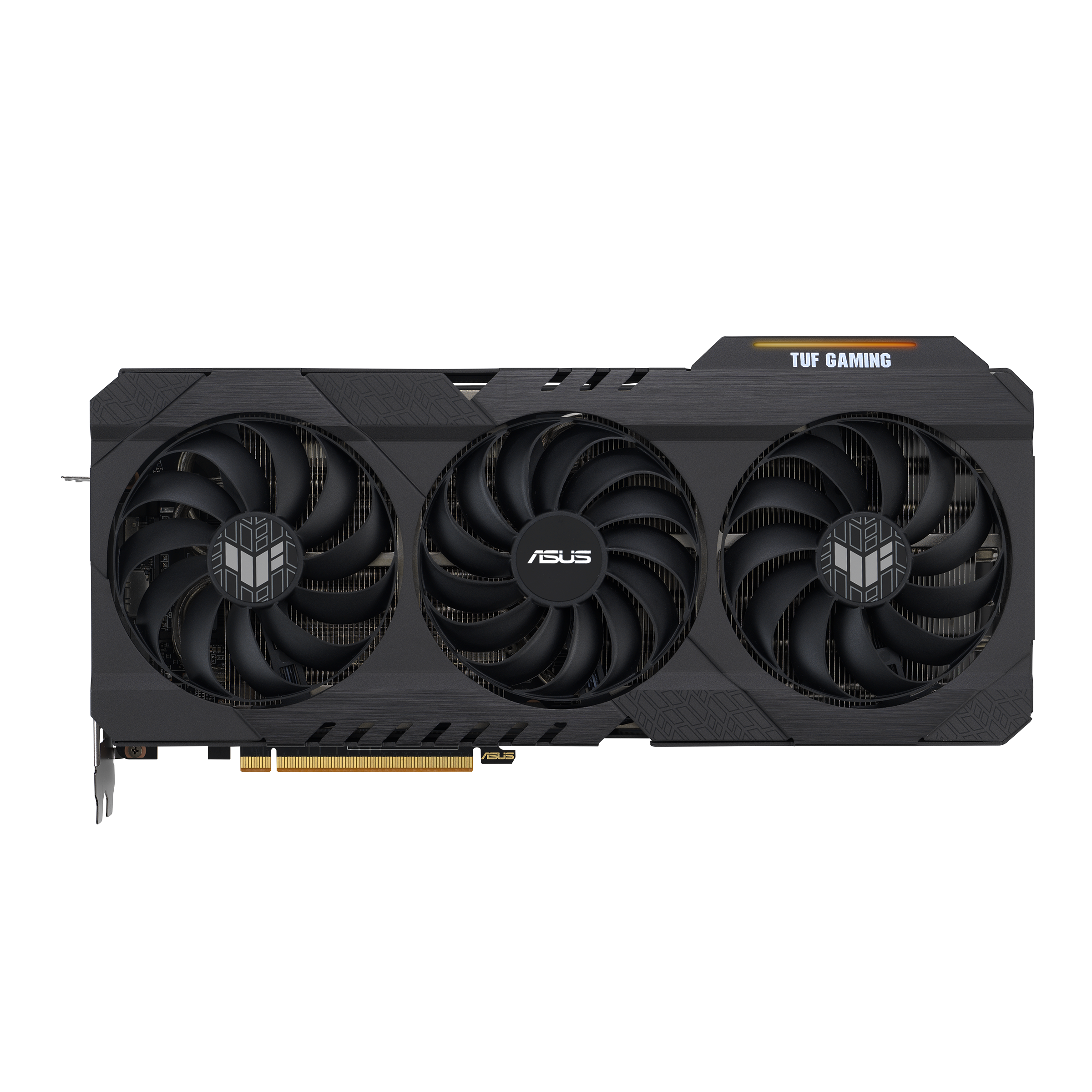

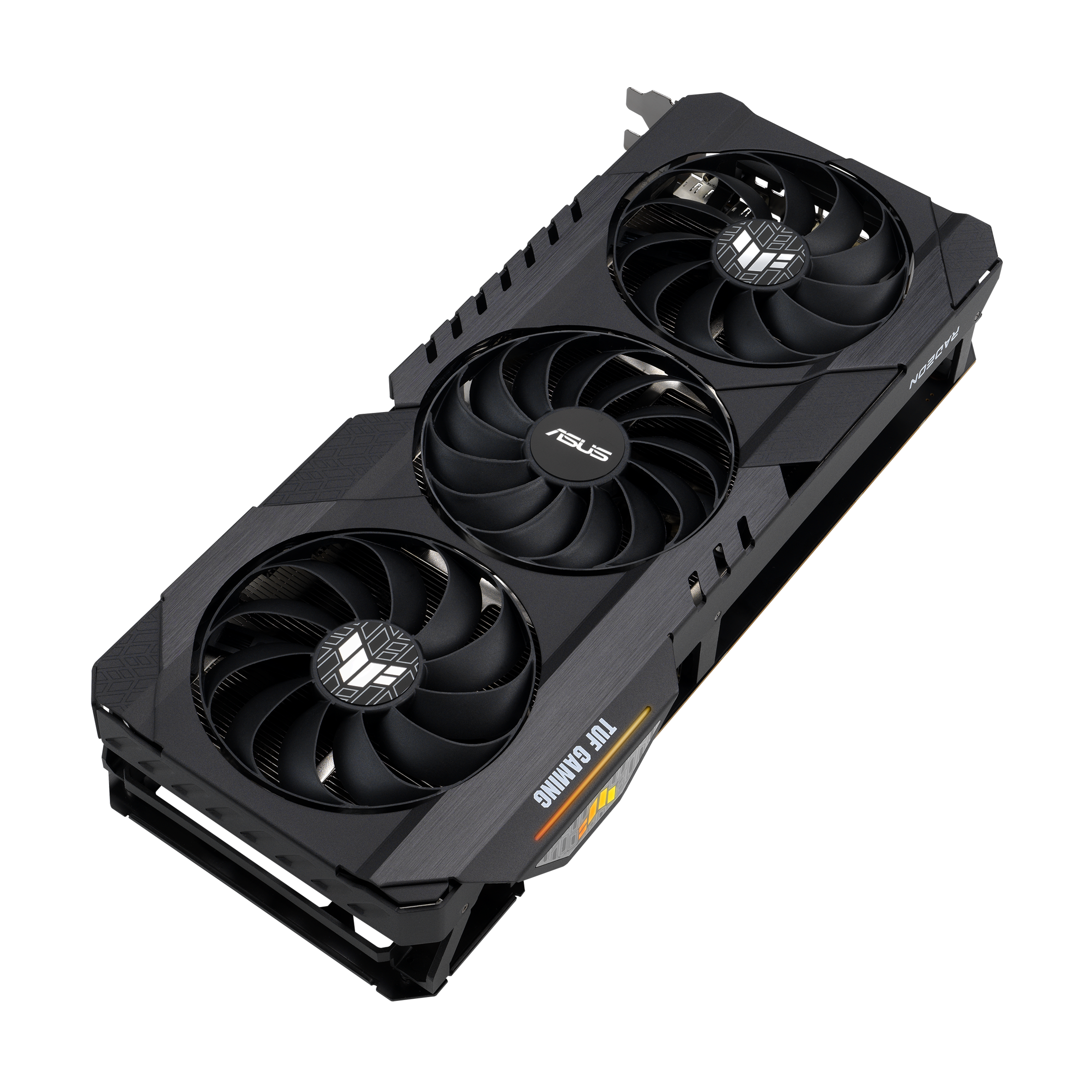

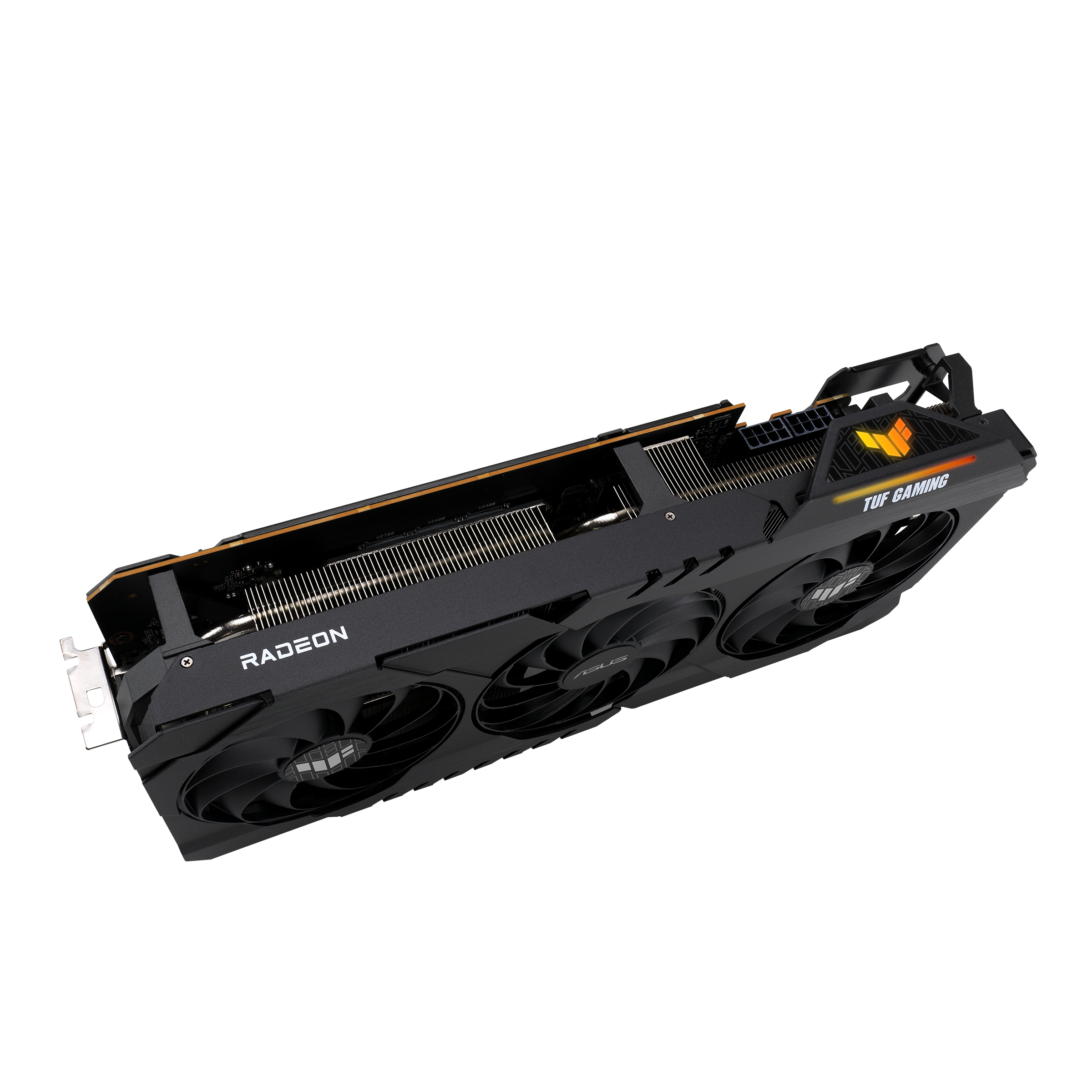

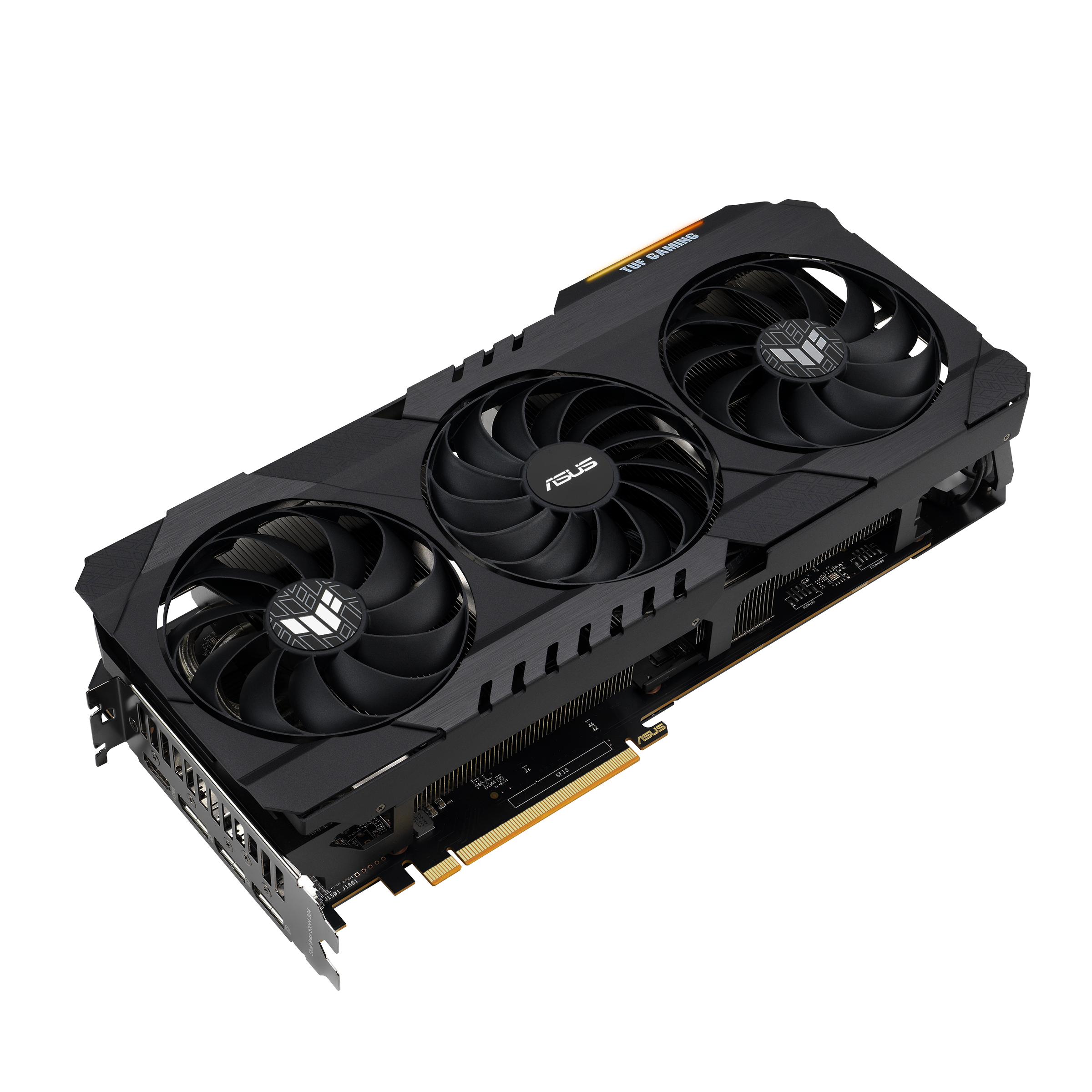

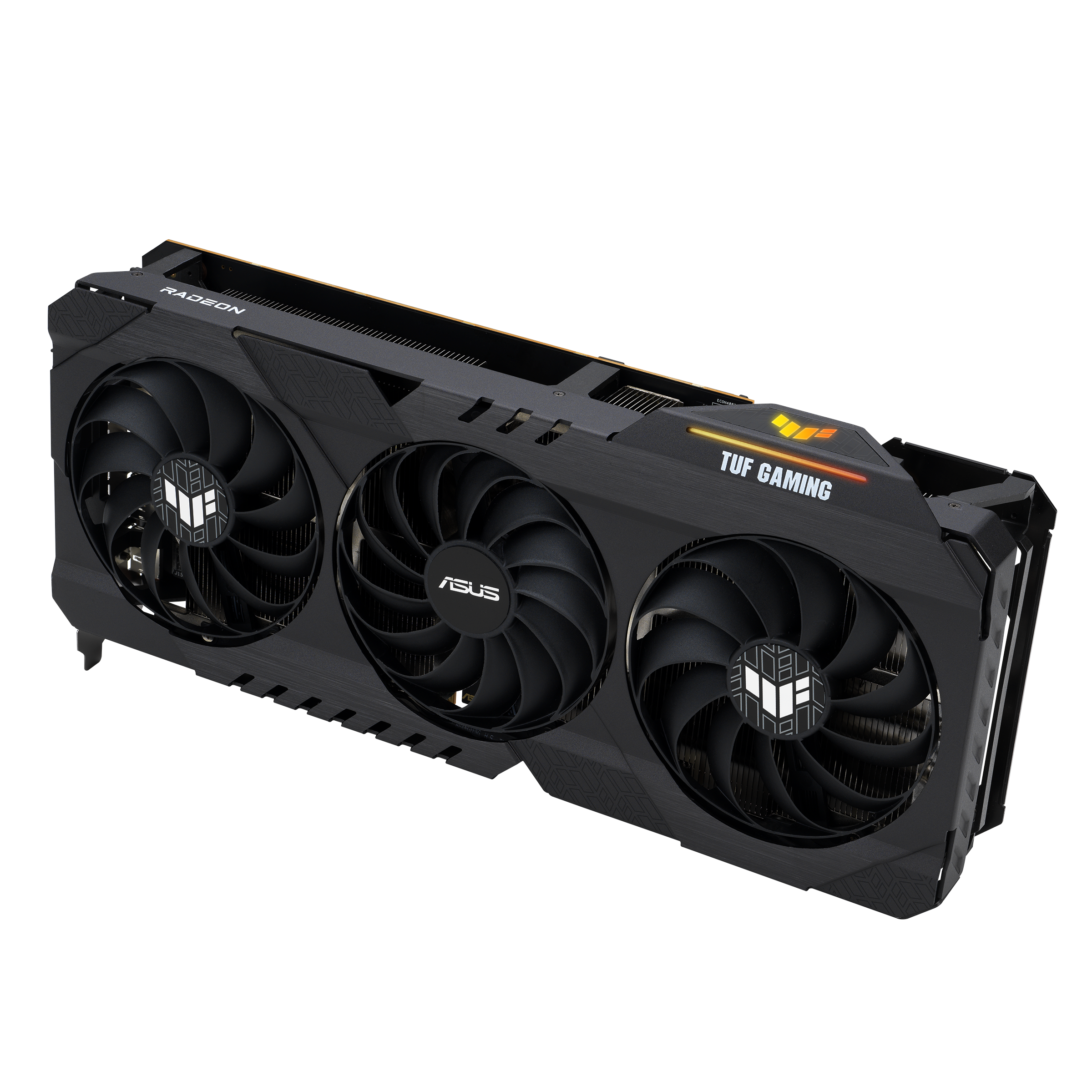

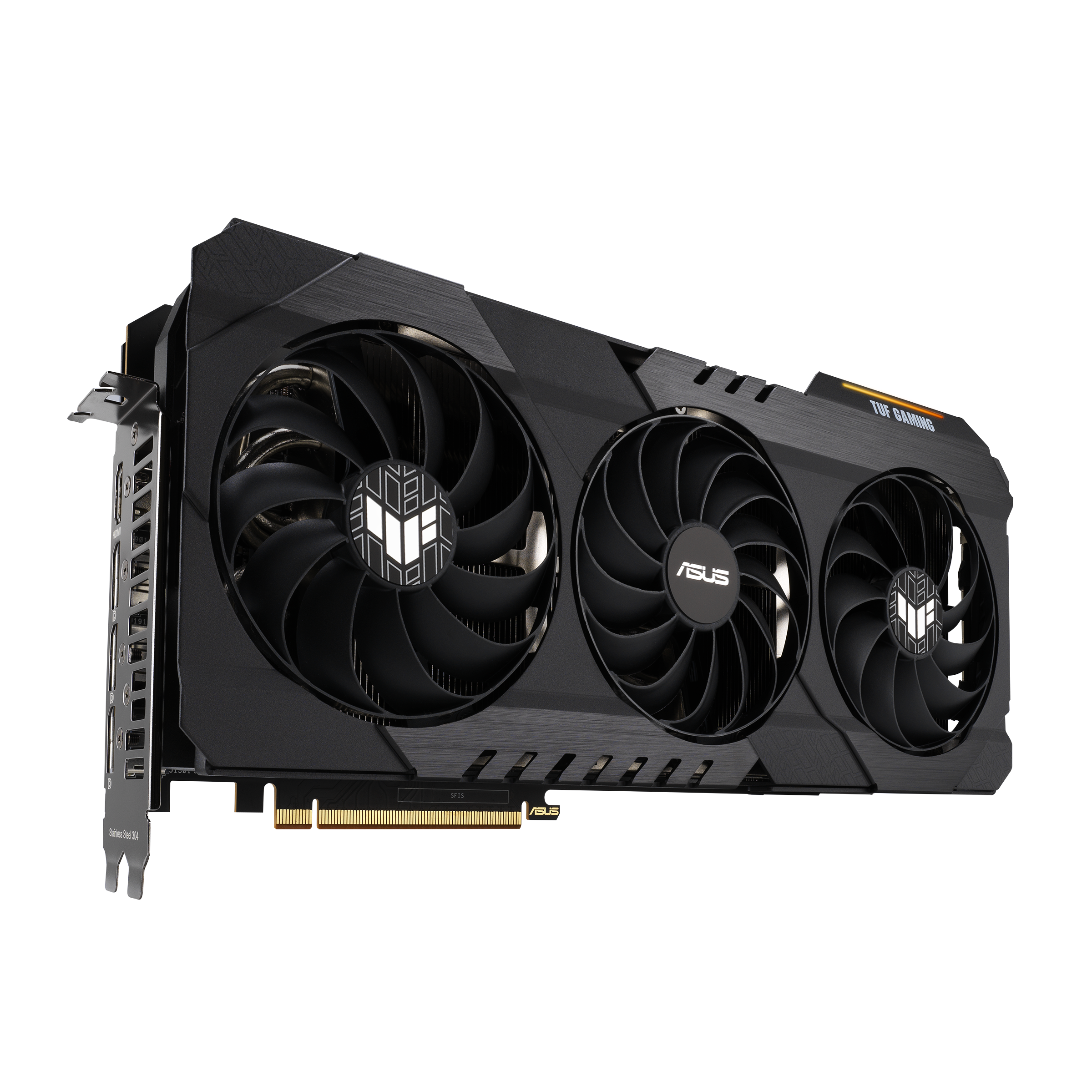

TUF Gaming Radeon™ RX 6950 XT OC Edition 16GB GDDR6
ASUS TUF Gaming Radeon™ RX 6950 XT is a truly tenacious performer
- Factory Mode: Up to 2324 MHz (Boost Clock)/up to 2116 MHz (Game Clock)

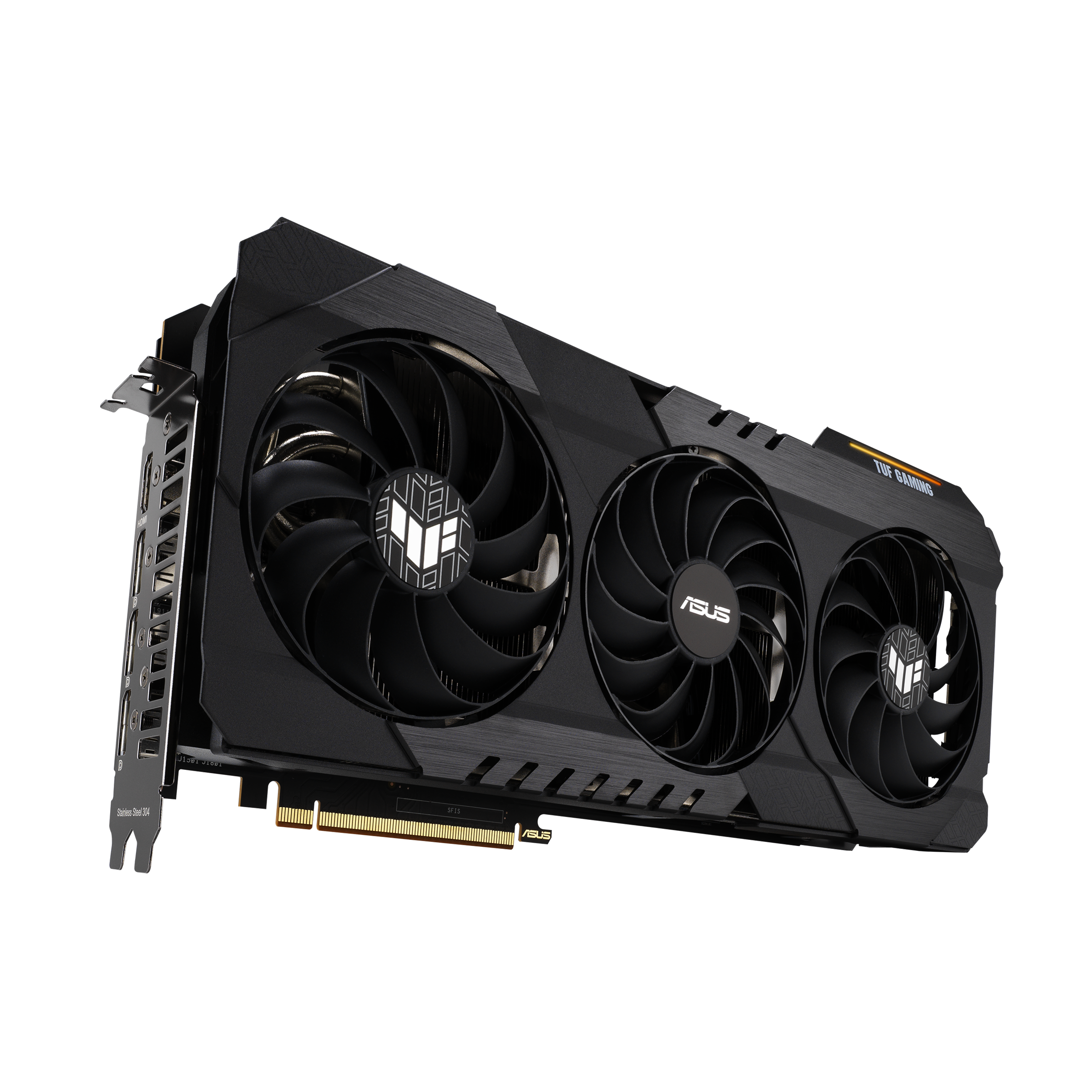

- Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

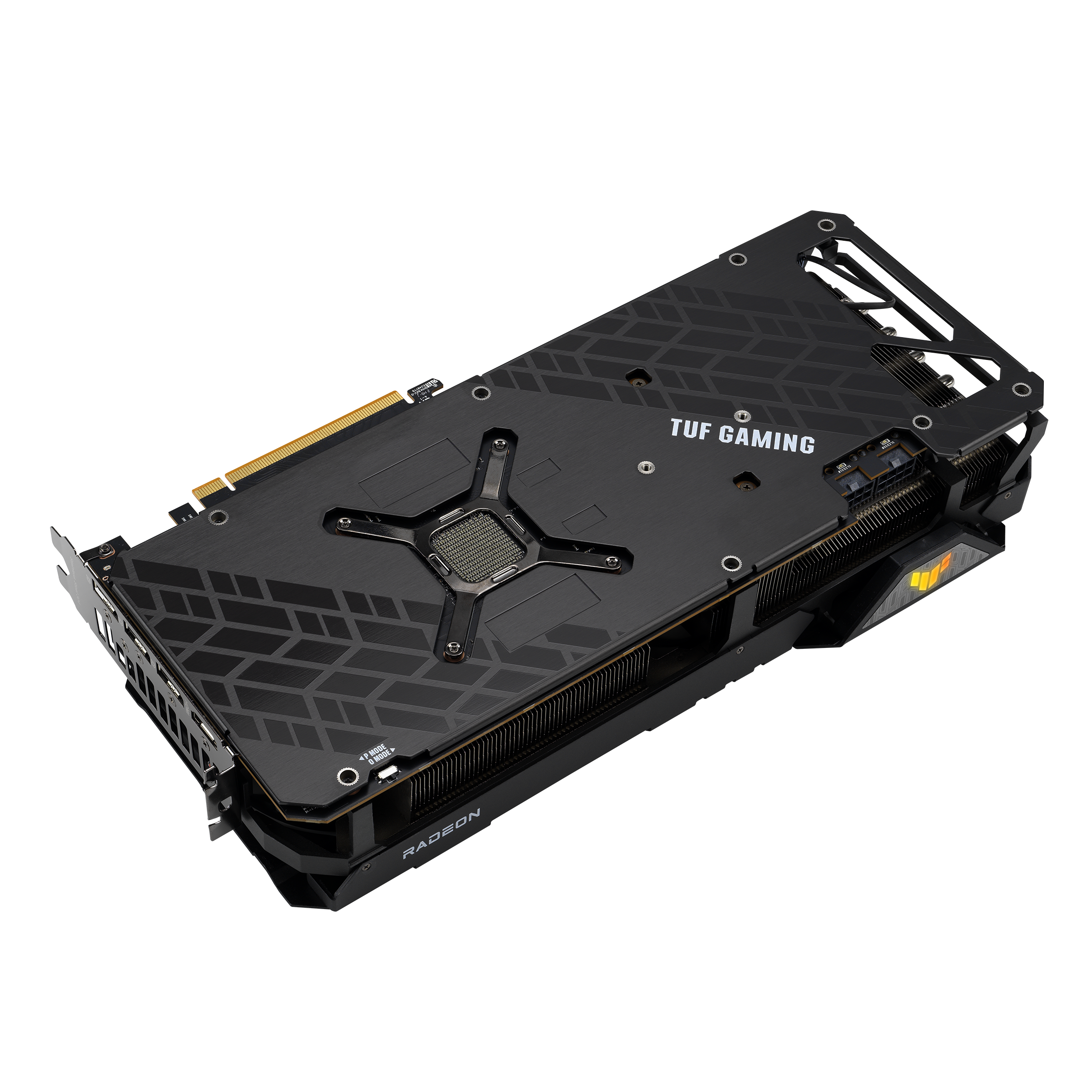

- An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
- MaxContact heat spreader features a super flat surface for improved thermal transfer.
- A vented backplate prevents hot air from recirculating through the cooling array.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Graphic Engine
Radeon RX 6950 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL4.6
Video Memory
16GB GDDR6
Engine Clock
Factory mode
Up to 2324 MHz(Boost Clock)
Up to 2116 MHz(Game Clock)
Stream Processors
5120
Memory Speed
18 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Accessories
1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual
1 x ASUS ruler
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
13 x 5.52 x 2.28 inches
320 x 140.2 x 57.8 mm
Recommended PSU
1000W
Power Connectors
2 x 8-pin
Slot
2.9 Slot
AURA SYNC
ARGB
Note
* Our wattage recommendation is based on a fully overclocked GPU
and CPU system configuration. For a more tailored suggestion,
please use the “Choose By Wattage” feature on our PSU product page:
https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please
check with your supplier for exact offers. Products may not be
available in all markets. If you do not use the latest and current
specifications of ASUS products, you shall be liable for all loss
and damage claimed by third party to ASUS based on false
advertising or any other issues caused from using false
specifications of ASUS products.
* Crossfire Support for DirecX 12 and Vulkan
* ‘Game Clock’ is the expected GPU clock when running typical
gaming applications, set to typical TGP (Total Graphics Power).
Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU
running a bursty workload. Boost clock achievability, frequency,
and sustainability will vary based on several factors, including
but not limited to: thermal conditions and variation in
applications and workloads.
