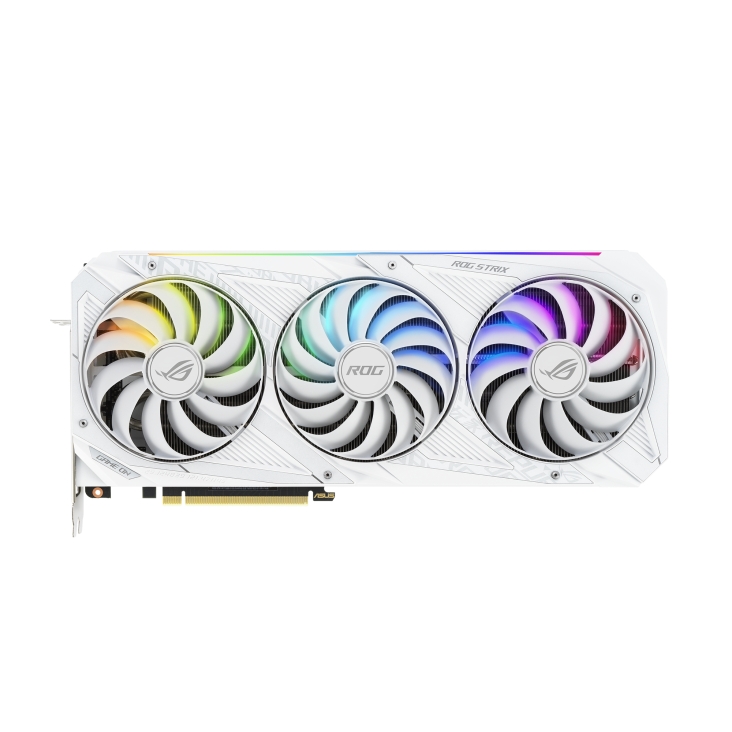

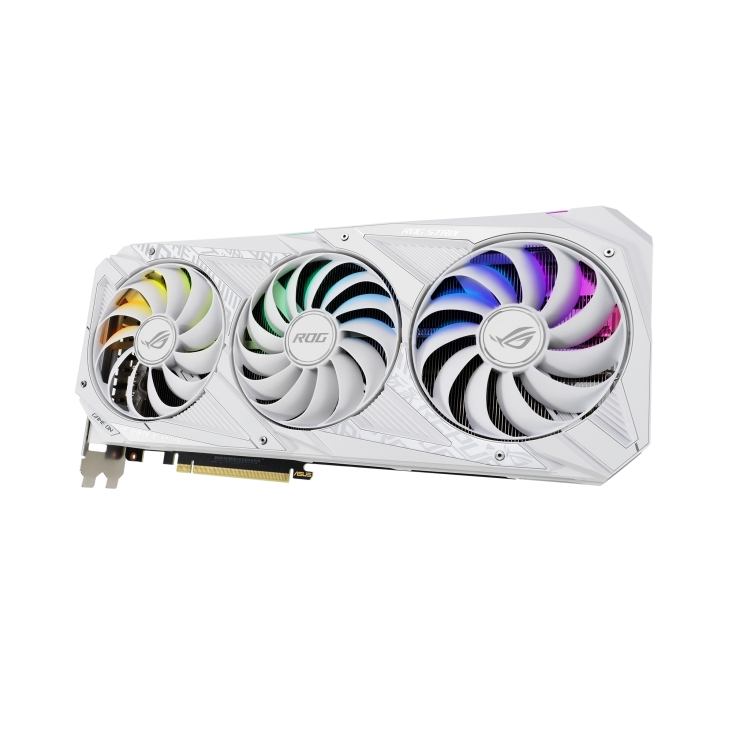

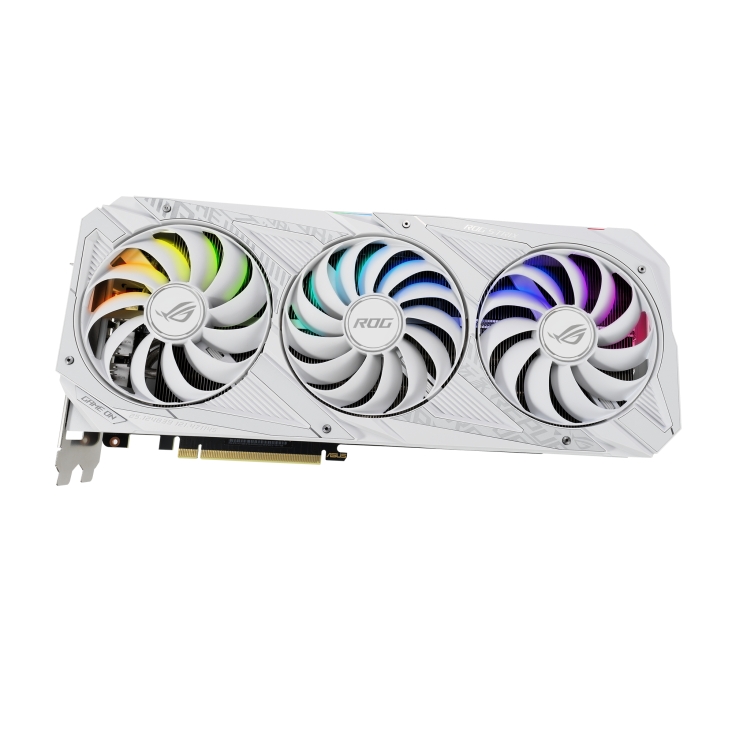

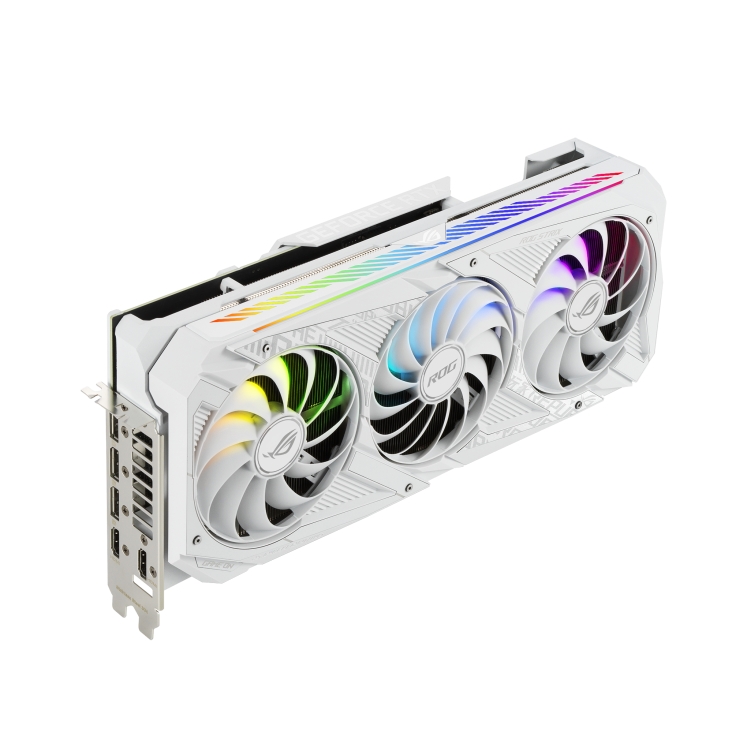

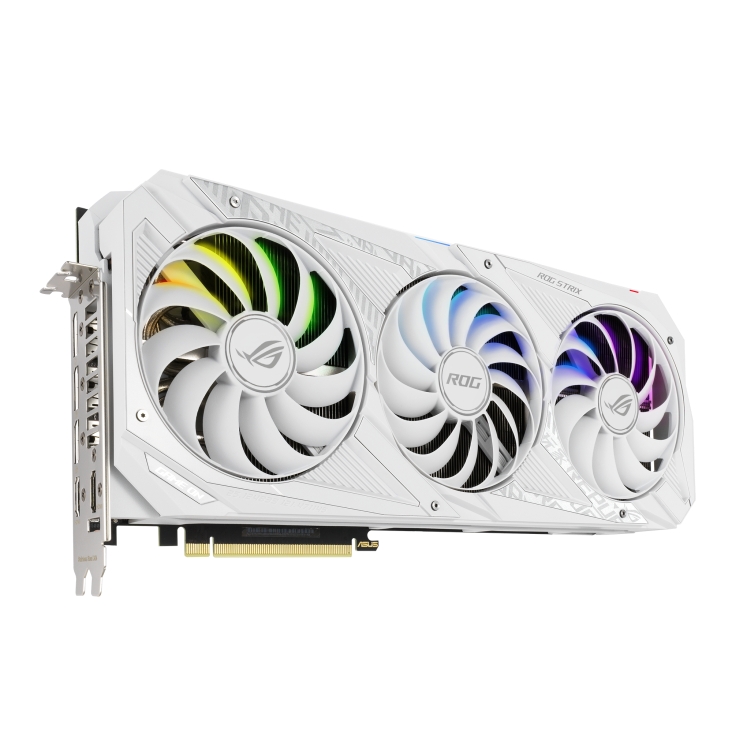

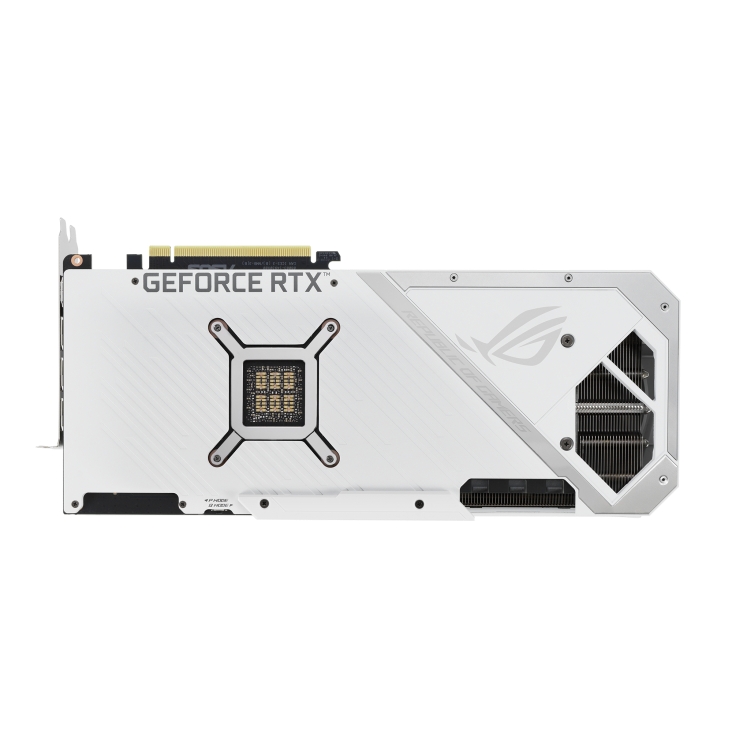

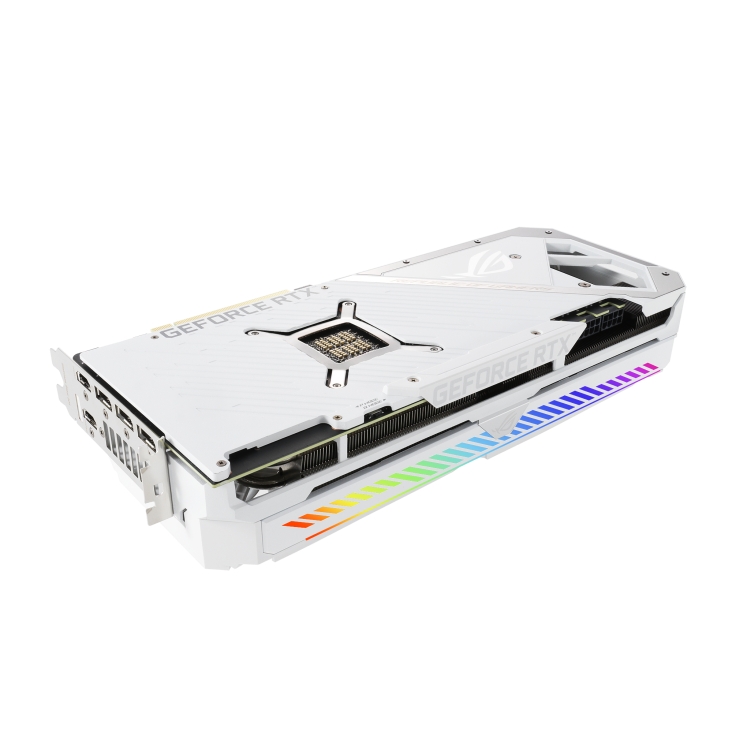

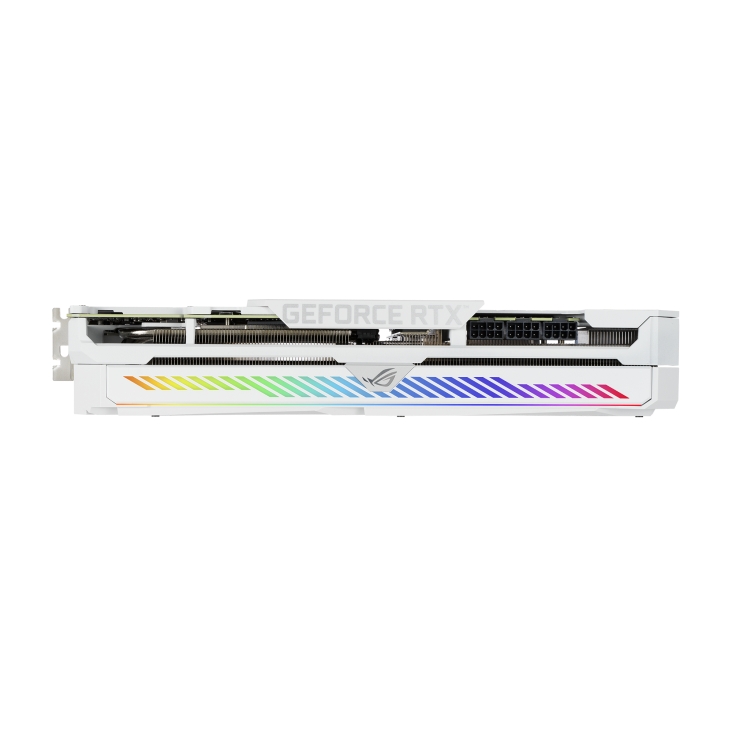

ROG-STRIX-RTX3080-O10G-WHITE

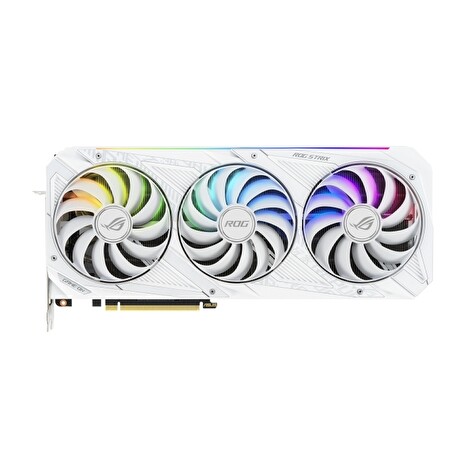

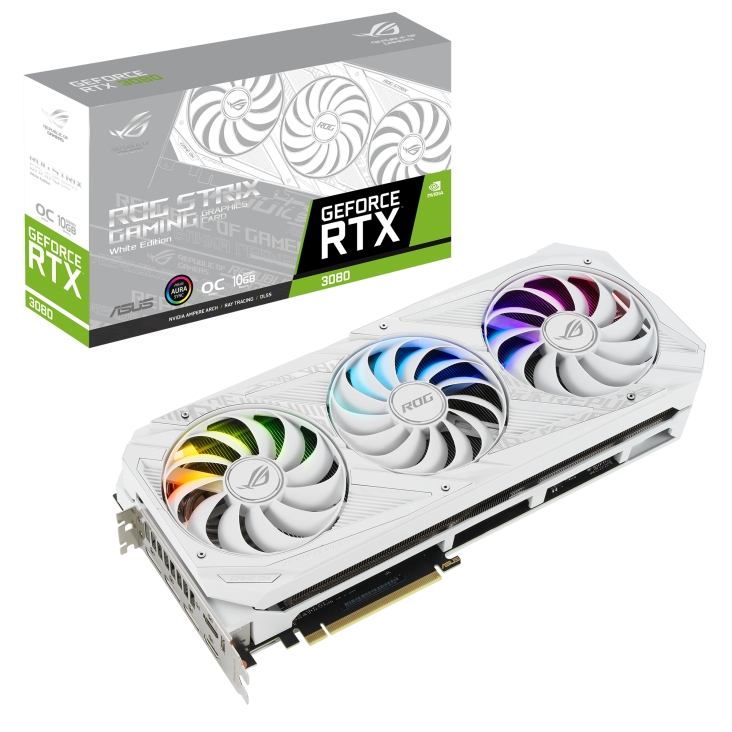

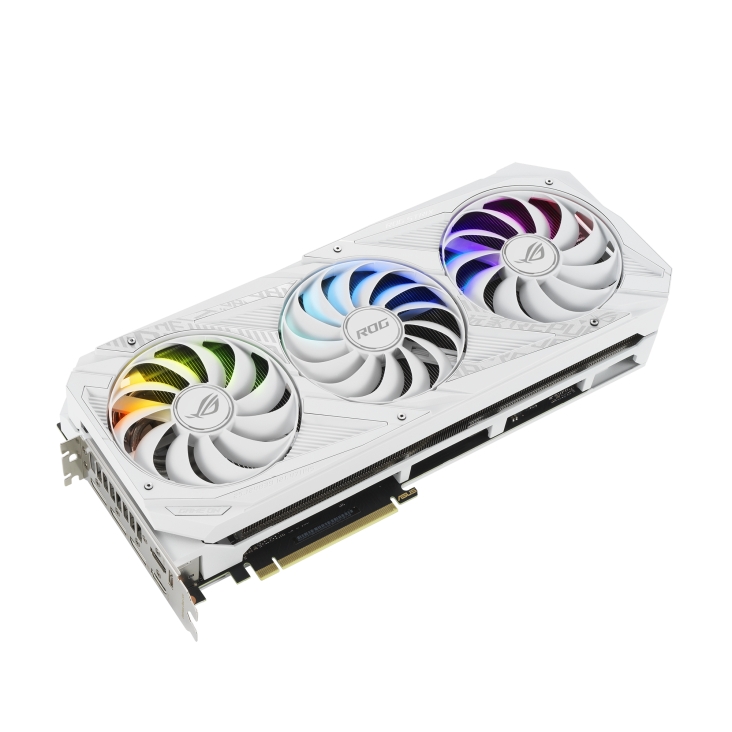

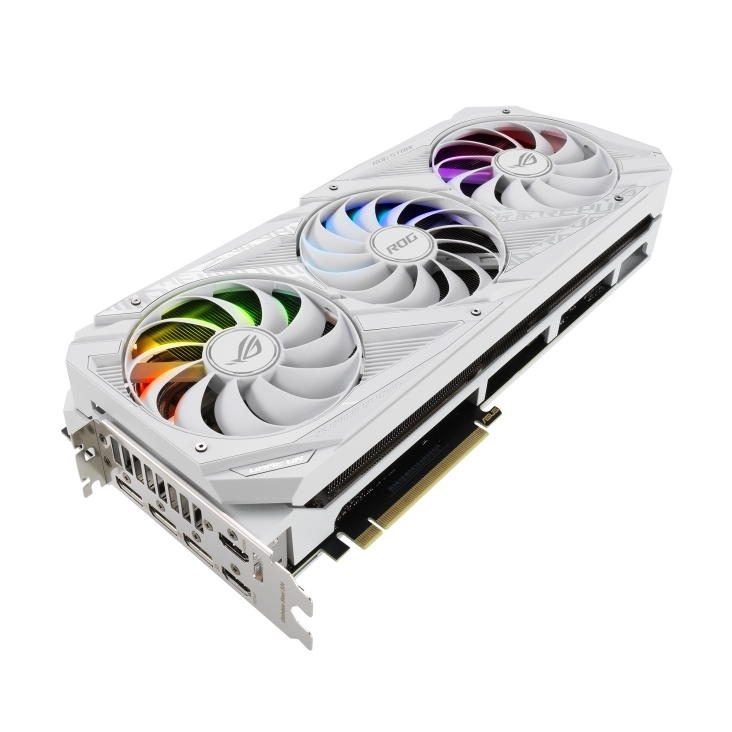

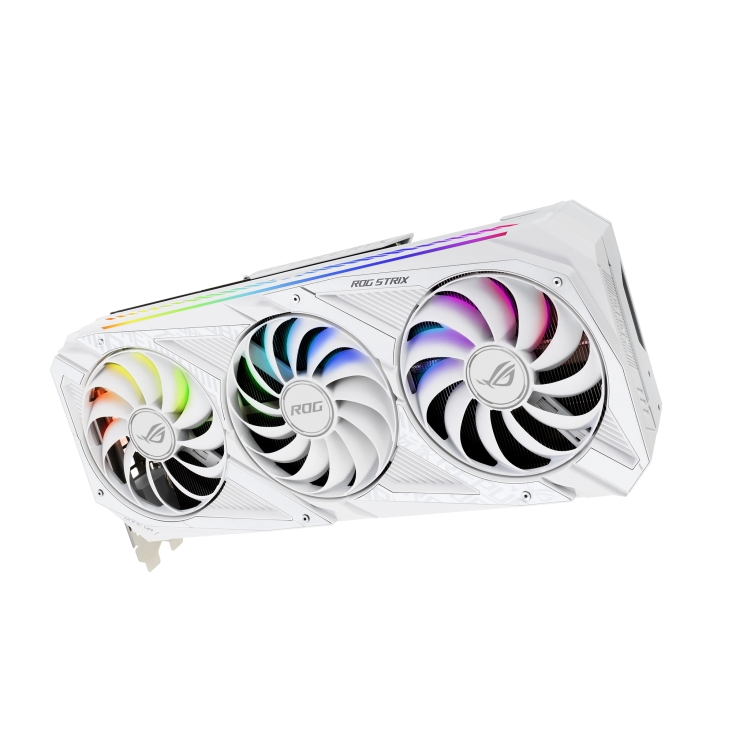

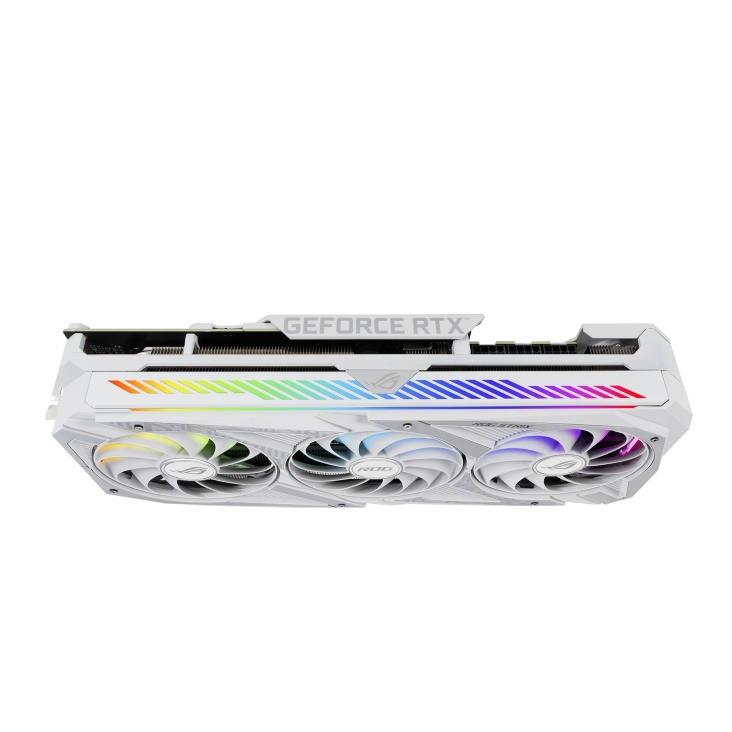

ROG Strix GeForce RTX™ 3080 White Edition with a white color scheme and chart-topping thermal performance.
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
- OC edition: Boost clock 1935 MHz (OC mode)/1905 MHz (Gaming mode)
- A limited white edition for themed gaming rigs.

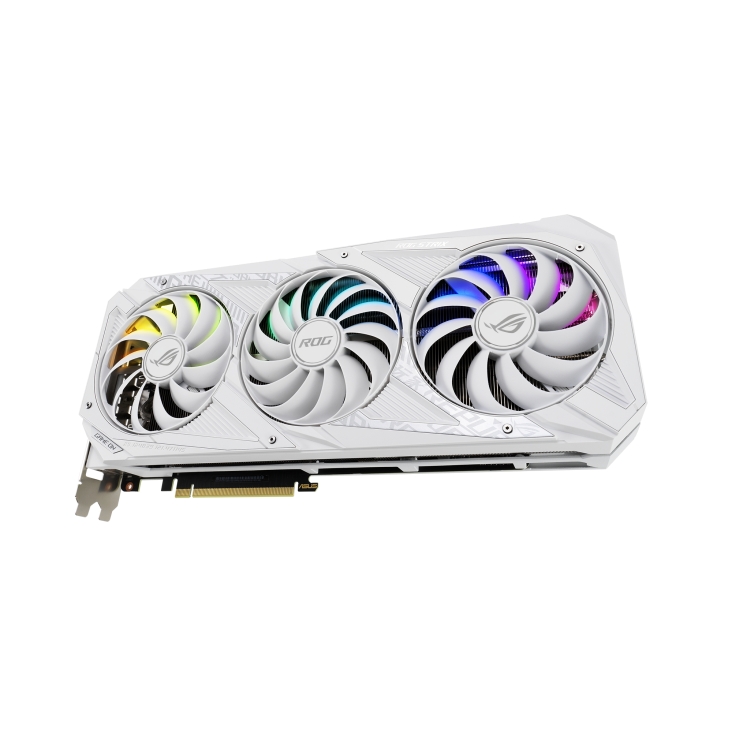

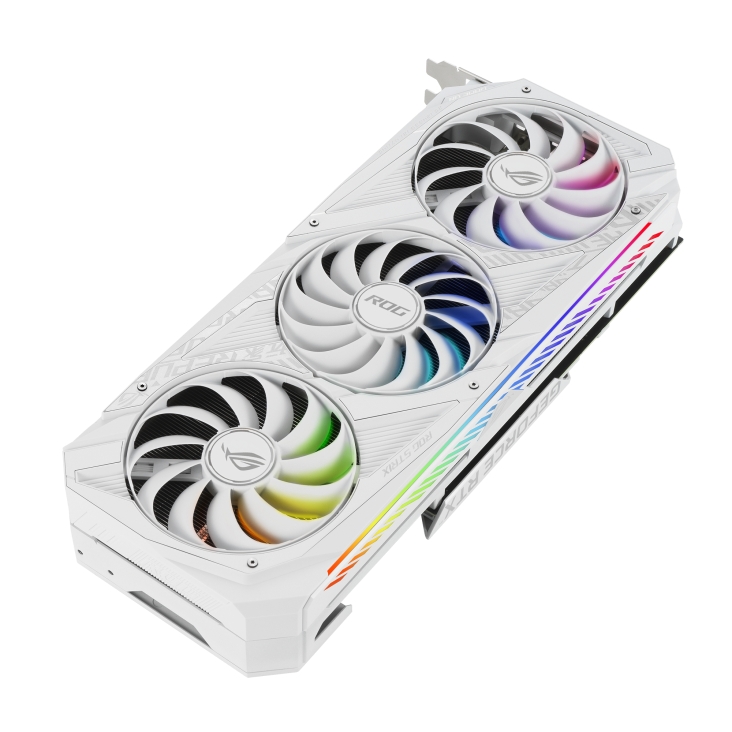

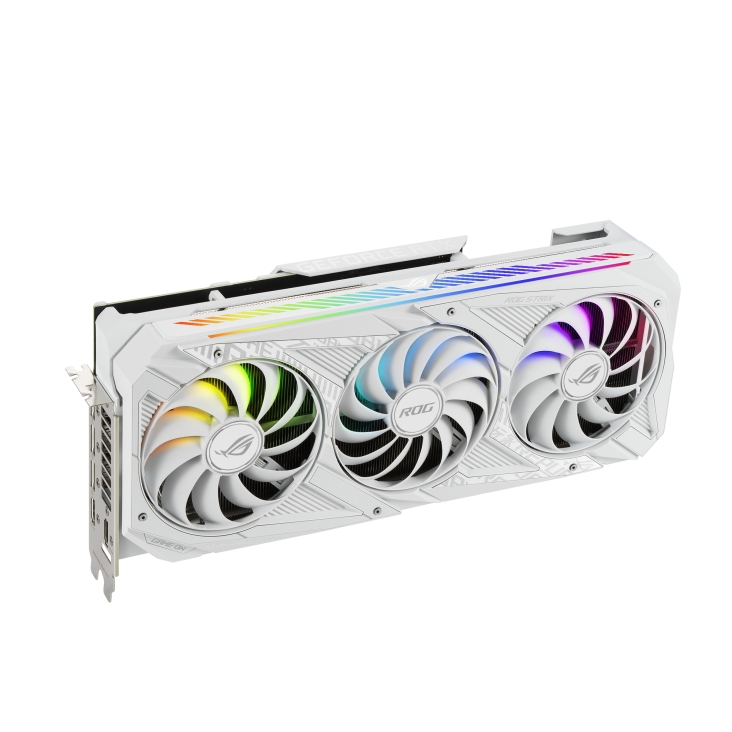

- Axial-tech fan design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
- 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
TECHNICAL SPECIFICATIONS
| Graphics Engine | NVIDIA GeForce RTX™ 3080 |
| Bus Standard | PCI Express 4.0 |
| Open GL | OpenGL4.6 |
| Video Memory | 10GB GDDR6X |
| Engine Clock – OC Mode | 1935 MHz (Boost Clock) |
| Engine Clock – Gaming Mode | 1905 MHz (Boost Clock) |
| CUDA Core | 8704 |
| Memory Speed | 19 Gbps |
| Memory Interface | 320-bit |
| Digital Max Resolution | 7680 x 4320 |

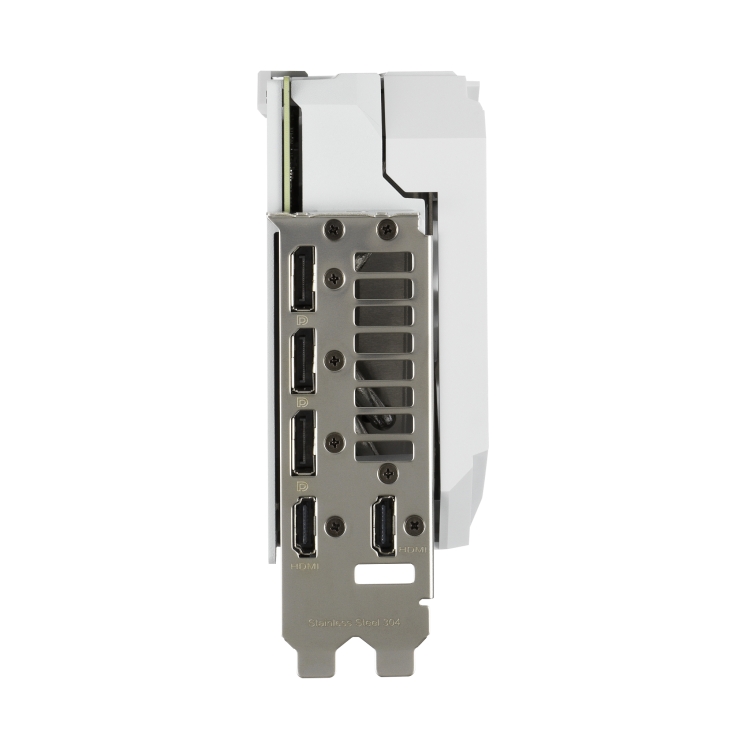

| Interface | 2 x Native HDMI 2.1 3 x Native DisplayPort 1.4a HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup manual 1 x Collection card 1 x ROG ruler 1 x ROG Velcro Hook & Loop |
| Software | ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 12.53 " x 5.51 " x 2.27 " Inch 31.85 x 14.01 x 5.78 Centimeter |
| Recommended PSU | 750W |
| Power Connectors | 3 x 8-pin |
| Slot | 2.9 Slot |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html |
