ATEN VS-481B 4-portový HDMI přepínač s dálkovým ovládáním (4 zařízení - 1 zobrazovací jednotka)

4-portový HDMI přepínač s dálkovým ovládáním (4 zařízení - 1 zobrazovací jednotka)


VS481B

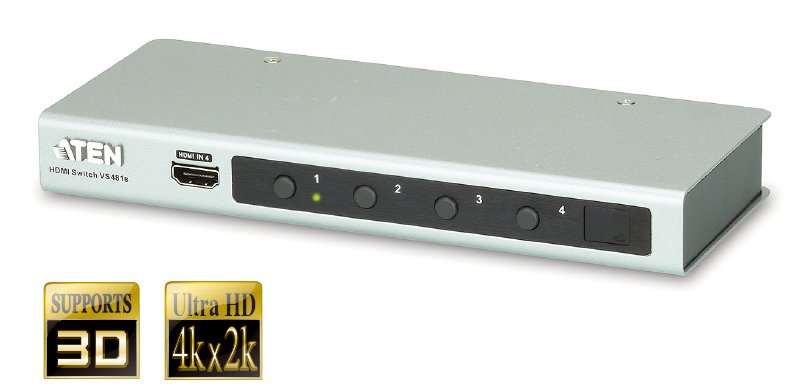

4-Port HDMI Switch

VS481B Zoom In VS481B VS481B VS481B
The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.


Allows up to four HDMI A/V sources to be connected to one HDMI display
Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
Supports 340MHz bandwidth for ultrahigh 4kx2k video
HDMI (3D, Deep Color, 4kx2k); HDCP compatible
Auto switching modes for auto port selection
Long distance transmission – up to 15 m (24 AWG)
Consumer Electronics Control (CEC) support
Supports Dolby True HD and DTS HD Master Audio
Built-in bi-directional RS-232 serial remote port for high-end system control
Instant switching between HDMI input sources
Supports IR extension using a IR extension cable *
LED indication of video source devices

Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.

Package Contents
1x VS481B 4-Port HDMI Switch
1x HDMI Cable
1x IR Remote Control
1x Power Adapter
1x User Instructions

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
