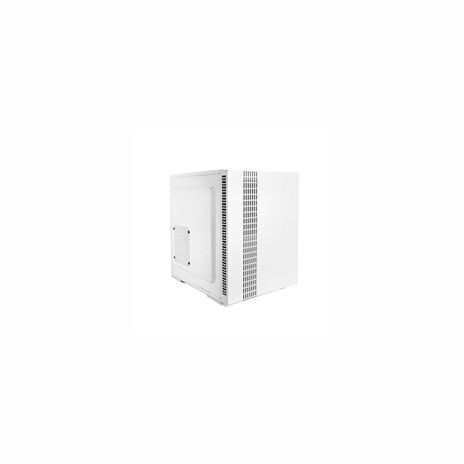

UK-02W-OP
- USB Type C connector to front panel
- Perforated Mesh Front panel to enhance airflow
- Compact ATX Cube with ATX PSU mounting
- Including dust guards to side panels
TECHNICAL SPECIFICATIONS
| Article No. | UK-02W-OP |
| Color | White |
| Material | 0,5mm SECC |
| Motherboard support | Mini ITX, mATX, ATX |
| Dimension (DxWxH) | 380 x 227 x 342mm (Stand +17mm) |
| Weight (without/with package) | 3.73 kg / 4.51 kg |
| Drive bay external | 1x 5,25“ |
| Drive bay internal | 1x 2,5" & 2x 3,5“ or 2x 2,5“ & 1x 3,5“ |
| Power supply | ATX PSU (optional, 140mm - 200mm) |
| Front I/O | 2x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-in, 1x USB Type C (480Mbit/s) |
| Scope of delivery | Set of screws, detachable mesh dust filter in the front and in the side panels. |
| Expansion slots | 7 |
| Cooling Compatibility | Front: 2x 120mm Rear: 1x 80mm |
| CPU cooler height (max.) | 110mm |
| VGA card length (max.) | With fan: 290mm, without fan: 315mm |
