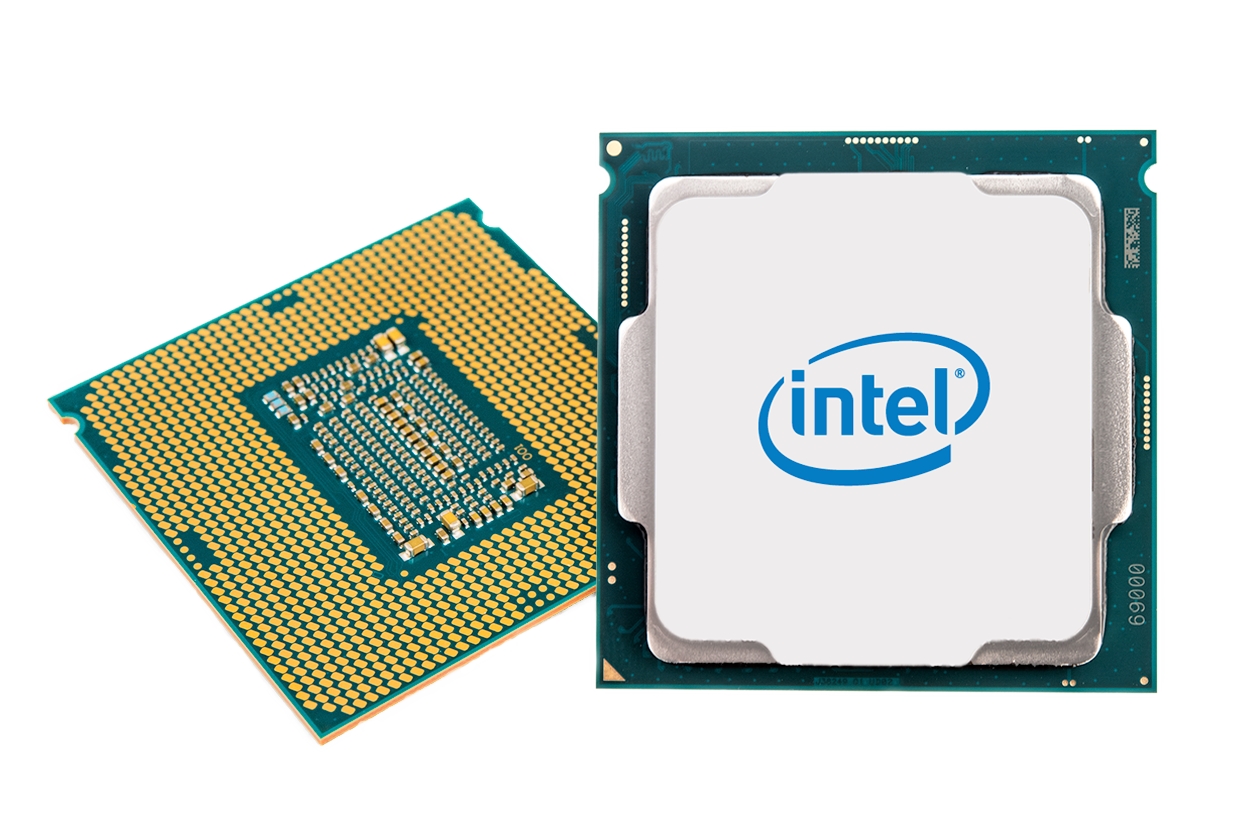

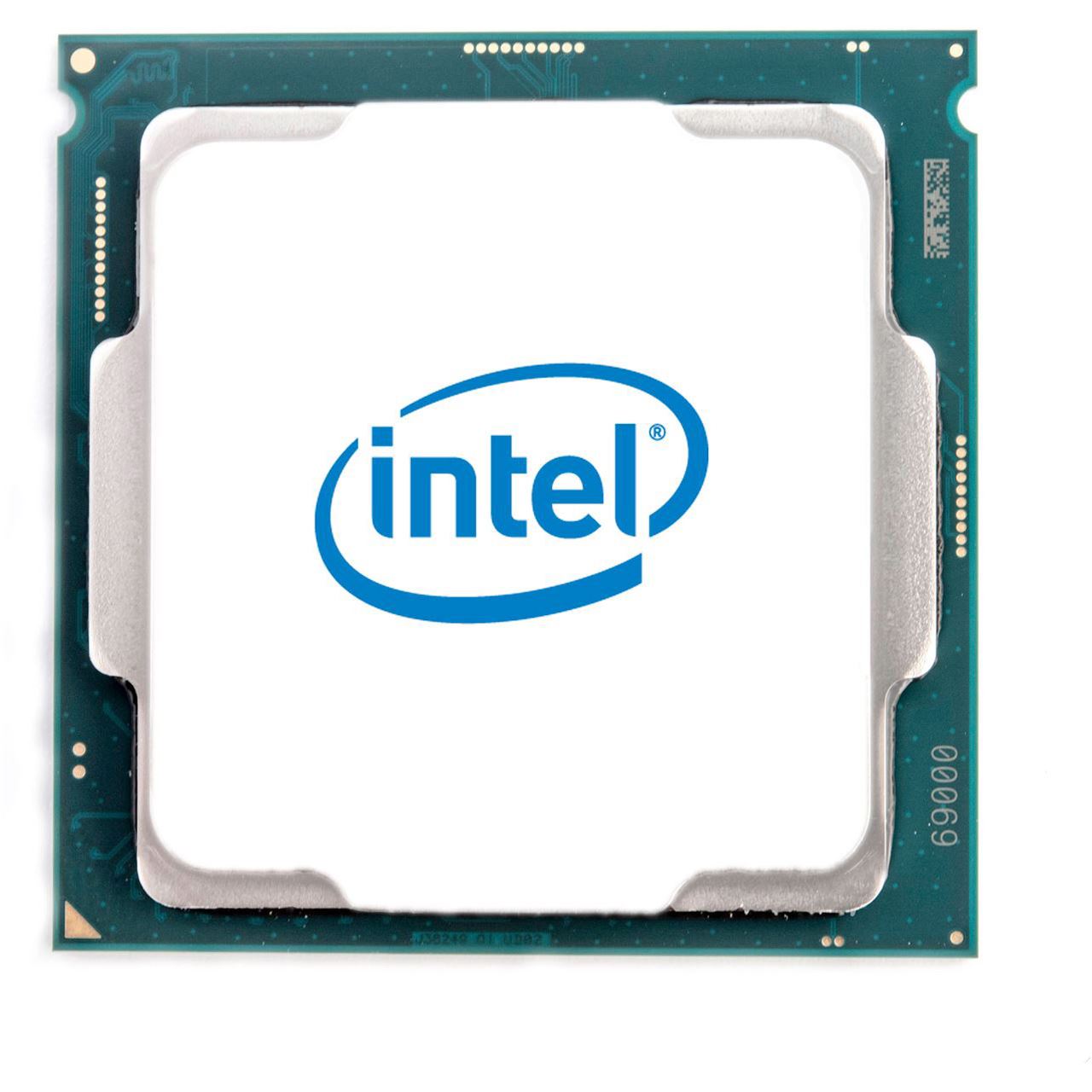

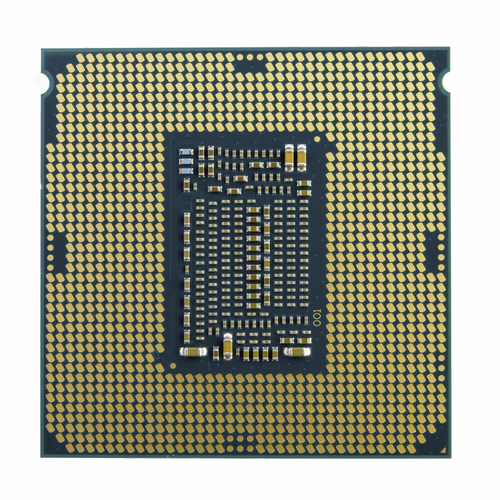

CPU INTEL Core i3-8300 3,7 GHz 8MB L3 LGA1151, tray, bez chladiče

Code Name

Coffee Lake

Essentials

Vertical Segment

Desktop

Processor Number

i3-8300

Lithography

14 nm

Performance

# of Cores

4

# of Threads

4

Processor Base Frequency

3.70 GHz

Cache

8 MB

Bus Speed

8 GT/s DMI3

TDP

62 W

Supplemental Information

Embedded Options Available

No

Memory Specifications

Max Memory Size (dependent on memory type)

64 GB

Memory Types

DDR4-2400

Max # of Memory Channels

2

Max Memory Bandwidth

37.5 GB/s

ECC Memory Supported ‡

Yes

Processor Graphics

Processor Graphics ^{<small>‡</small>}

Intel UHD Graphics 630

Graphics Base Frequency

350 MHz

Graphics Max Dynamic Frequency

1.15 GHz

Graphics Video Max Memory

64 GB

4K Support

Yes, at 60Hz

Max Resolution (HDMI 1.4)‡

4096x2304@24Hz

Max Resolution (DP)‡

4096x2304@60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

4096x2304@60Hz

DirectX* Support

12

OpenGL* Support

4.5

Intel Quick Sync Video

Yes

Intel InTru™ 3D Technology

Yes

Intel Clear Video HD Technology

Yes

Intel Clear Video Technology

Yes

# of Displays Supported ‡

3

Device ID

0x3E91

Expansion Options

Scalability

1S Only

PCI Express Revision

3.0

PCI Express Configurations ‡

Up to 1x16, 2x8, 1x8+2x4

Max # of PCI Express Lanes

16

Package Specifications

Sockets Supported

FCLGA1151

Max CPU Configuration

1

Thermal Solution Specification

PCG 2015C (65W)

T_JUNCTION

100°C

Package Size

37.5mm x 37.5mm

Low Halogen Options Available

See MDDS

Advanced Technologies

Intel Optane™ Memory Supported ‡

Yes

Intel Turbo Boost Technology

No

Intel vPro™ Technology ‡

No

Intel Hyper-Threading Technology ‡

No

Intel Virtualization Technology (VT-x) ‡

Yes

Intel Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel VT-x with Extended Page Tables (EPT) ‡

Yes

Intel TSX-NI

No

Intel 64 ‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel SSE4.1, Intel SSE4.2, Intel AVX2

Idle States

Yes

Enhanced Intel SpeedStep Technology

Yes

Thermal Monitoring Technologies

Yes

Intel Identity Protection Technology ‡

Yes

Intel Stable Image Platform Program (SIPP)

No

Security & Reliability

Intel AES New Instructions

Yes

Secure Key

Yes

Intel Software Guard Extensions (Intel SGX)

Yes

Intel Memory Protection Extensions (Intel MPX)

Yes

Intel OS Guard

Yes

Intel Trusted Execution Technology ‡

No

Execute Disable Bit ‡

Yes

Intel Boot Guard

Yes
