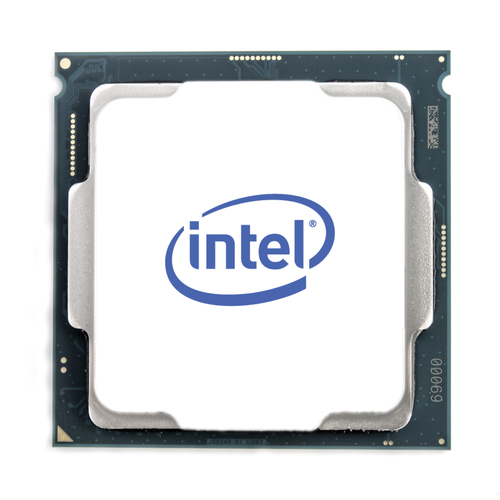

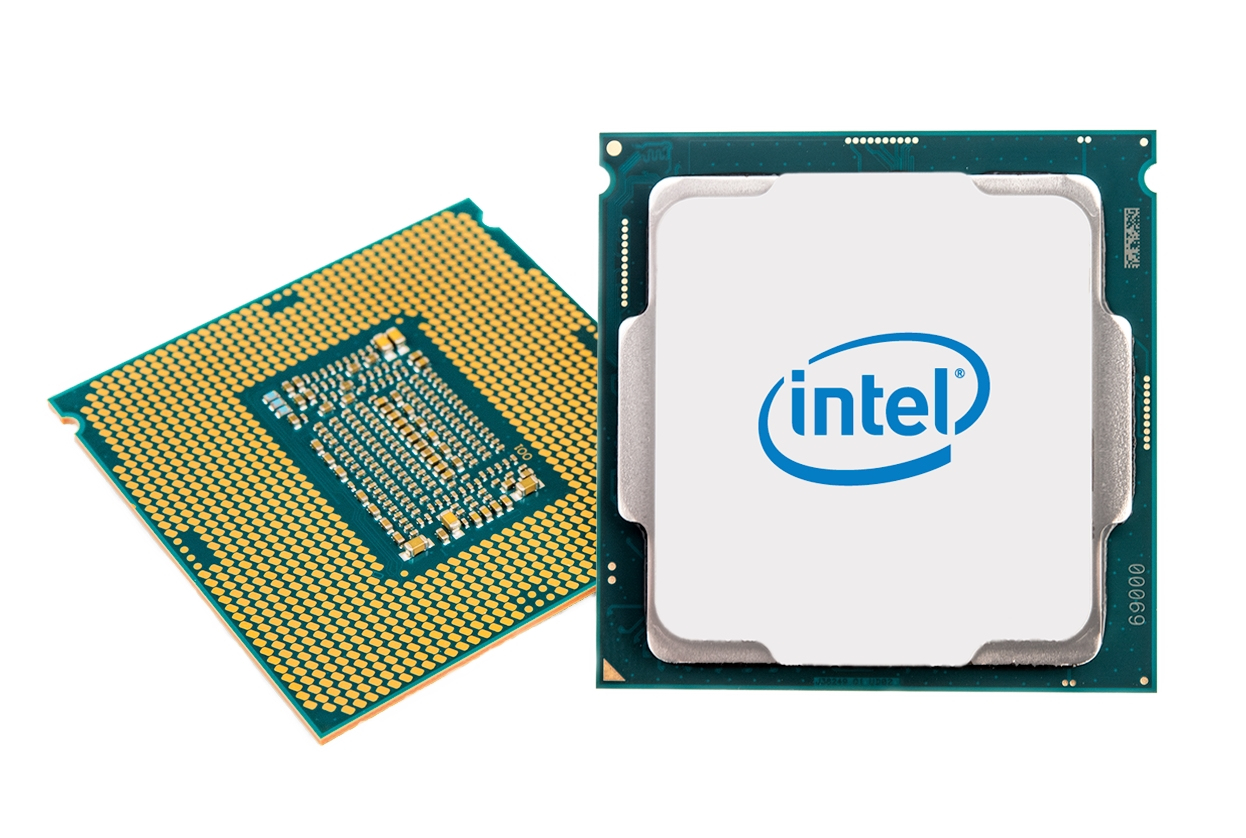

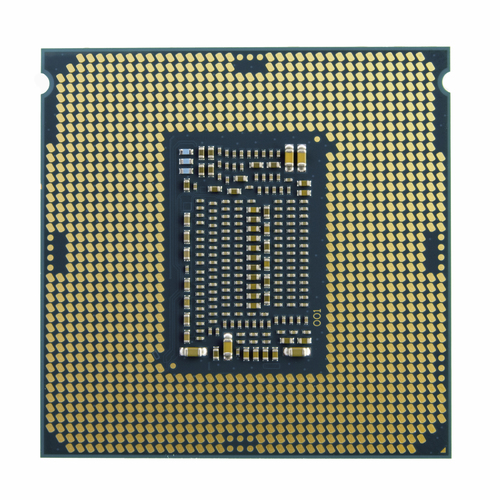

Intel Core™ i7-10700 Processor (16M Cache, up to 4.80 GHz)
TECHNICAL SPECIFICATIONS
|
Essentials |
|
|
Product Collection |
10th Generation Intel Core™ i7 Processors |
|
Code Name |
Products formerly Comet Lake |
|
Vertical Segment |
Desktop |
|
Processor Number |
i7-10700 |
|
Status |
Launched |
|
Launch Date |
Q2'20 |
|
Lithography |
14 nm |
|
Use Conditions |
PC/Client/Tablet |
|
Performance |
|
|
# of Cores |
8 |
|
# of Threads |
16 |
|
Processor Base Frequency |
2.90 GHz |
|
Max Turbo Frequency |
4.80 GHz |
|
Cache |
16 MB Intel Smart Cache |
|
Bus Speed |
8 GT/s |
|
Intel Turbo Boost Max Technology 3.0 Frequency ‡ |
4.80 GHz |
|
TDP |
65 W |
|
Supplemental Information |
|
|
Embedded Options Available |
No |
|
Memory Specifications |
|
|
Max Memory Size (dependent on memory type) |
128 GB |
|
Memory Types |
DDR4-2933 |
|
Max # of Memory Channels |
2 |
|
Max Memory Bandwidth |
45.8 GB/s |
|
ECC Memory Supported ‡ |
No |
|
Processor Graphics |
|
|
Processor Graphics ‡ |
Intel UHD Graphics 630 |
|
Graphics Base Frequency |
350 MHz |
|
Graphics Max Dynamic Frequency |
1.20 GHz |
|
Graphics Video Max Memory |
64 GB |
|
4K Support |
Yes, at 60Hz |
|
Max Resolution (HDMI 1.4)‡ |
4096x2160@30Hz |
|
Max Resolution (DP)‡ |
4096x2304@60Hz |
|
Max Resolution (eDP - Integrated Flat Panel)‡ |
4096x2304@60Hz |
|
DirectX* Support |
12 |
|
OpenGL* Support |
04.V |
|
Intel Quick Sync Video |
Yes |
|
Intel InTru™ 3D Technology |
Yes |
|
Intel Clear Video HD Technology |
Yes |
|
Intel Clear Video Technology |
Yes |
|
# of Displays Supported ‡ |
3 |
|
Device ID |
0x9BC5 |
|
Expansion Options |
|
|
Scalability |
1S Only |
|
PCI Express Revision |
3.0 |
|
PCI Express Configurations ‡ |
Up to 1x16, 2x8, 1x8+2x4 |
|
Max # of PCI Express Lanes |
16 |
|
Package Specifications |
|
|
Sockets Supported |
FCLGA1200 |
|
Max CPU Configuration |
1 |
|
Thermal Solution Specification |
PCG 2015C |
|
TJUNCTION |
100°C |
|
Package Size |
37.5mm x 37.5mm |
|
Advanced Technologies |
|
|
Intel Optane™ Memory Supported ‡ |
Yes |
|
Intel Thermal Velocity Boost |
No |
|
Intel Turbo Boost Max Technology 3.0 ‡ |
Yes |
|
Intel Turbo Boost Technology ‡ |
2.0 |
|
Intel vPro™ Platform Eligibility ‡ |
Yes |
|
Intel Hyper-Threading Technology ‡ |
Yes |
|
Intel Virtualization Technology (VT-x) ‡ |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) ‡ |
Yes |
|
Intel Transactional Synchronization Extensions |
No |
|
Intel 64 ‡ |
Yes |
|
Instruction Set |
64-bit |
|
Instruction Set Extensions |
Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
|
Idle States |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel Identity Protection Technology ‡ |
Yes |
|
Intel Stable Image Platform Program (SIPP) |
Yes |
|
Security & Reliability |
|
|
Intel AES New Instructions |
Yes |
|
Secure Key |
Yes |
|
Intel Software Guard Extensions (Intel SGX) |
Yes with Intel ME |
|
Intel OS Guard |
Yes |
|
Intel Trusted Execution Technology ‡ |
Yes |
|
Execute Disable Bit ‡ |
Yes |
|
Intel Boot Guard |
Yes |
