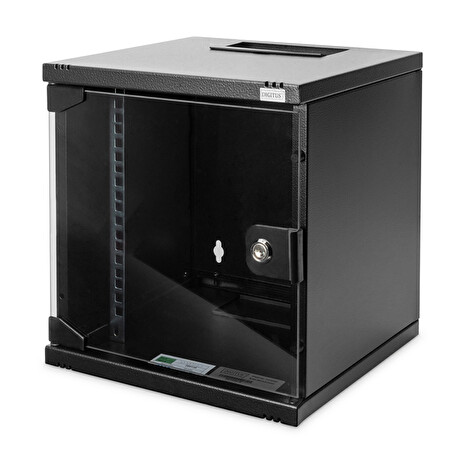

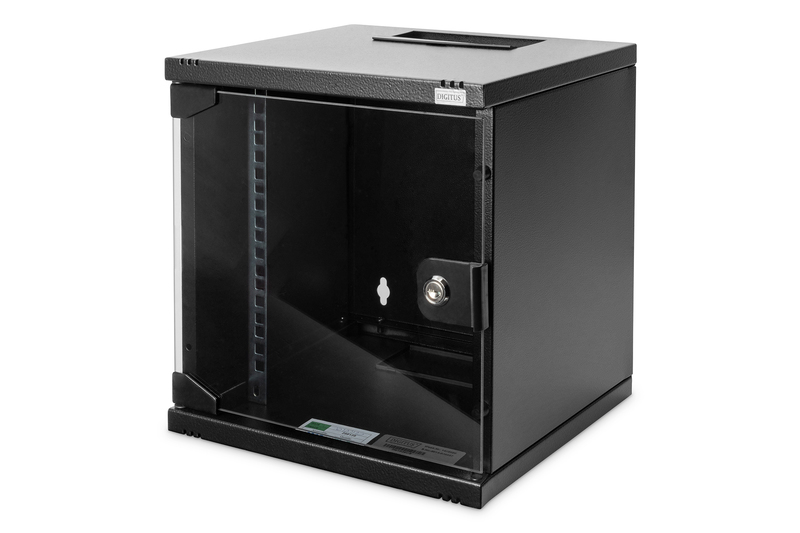

DIGITUS 54 mm (10 ") 6U nástěnná skříňka 330x312x300 mm, barva černá (RAL 9005)

254 mm (10") 6U wall mounting cabinet 330x312x300 mm, color black (RAL 9005)

The DIGITUS® wall-mounted enclosures are manufactured, designed and developed for the high demands of the IT infrastructure.

The small 10" network wall housing stands out with its compact dimensions and full suitability for structured IT cabling - ideal for home or small office environments
A lockable glass door protects the office or home network from unauthorized access while still allowing visual control of the Internet router, NAS server or network switch
Optimal integration into the house cabling - Through the cable entries in the floor and roof, power and network cables can be inserted into the mini-rack both from below and from above
The profile rails can be mounted in 3 different positions - The steel housing can be connected to the equipotential bonding of the house wiring via the earthing bolt
Various IT components such as patch panels, LAN & PoE switches, socket strips as well as cable management solutions and shelves from DIGITUS are available for the 10 inch form factor (254 mm)
The 254 mm (10") wall mounted cases are made of a robust steel construction. The cable entry openings in the roof and floor offer best possibilities for a proper cable management. The compact housing is therefore ideal for all common EDP and telecommunications applications, especially where space is limited and in private households.

Technical Details
Protection class IP20

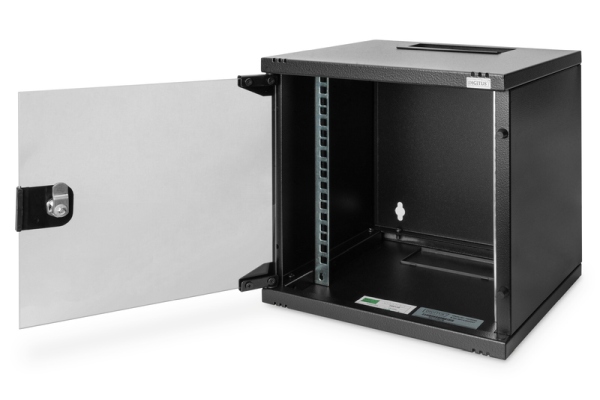

Lockable safety glass door
200° door opening angle
1-point locking on the front door

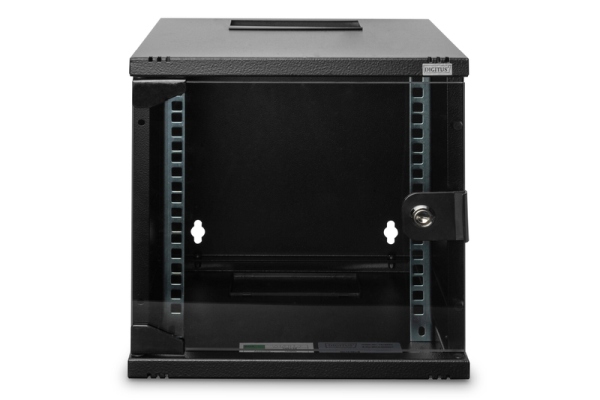

254 mm (10") profile rails mounted at the front inside the cabinet, galvanized
254 mm (10") profile rails are adjustable in depth
1.1 - 1.5 strong sheet steel with a high load capacity, powder-coated
Cable entry with brush strip in the roof and with plastic cover in the floor
Ventilation slots for active and passive ventilation
Installation depth for components max.: 260 mm
Colour: Black
Width: 312
Model: With permanent frame
Height: 330
Depth: 300
RAL-number: 9005
Number of doors: 1
Type of ventilation: Passive
Material: Steel
Number of height units: 6
Degree of protection (IP): IP20
Type of surface: With powder coating
Mounting level: Front side
Type of profile rail: L-shaped
With roof plate: yes
With front door: yes
With sidewall: yes
Demountable: yes
Modular spacing: 254 mm (10 inch)
