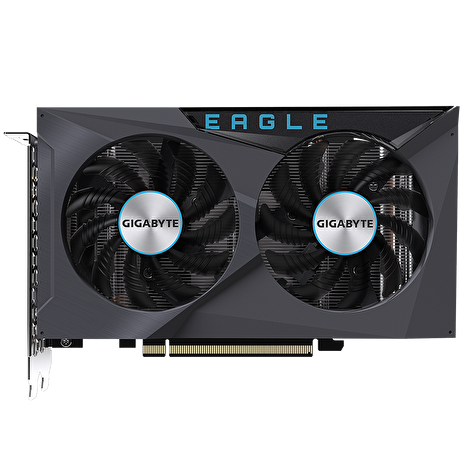

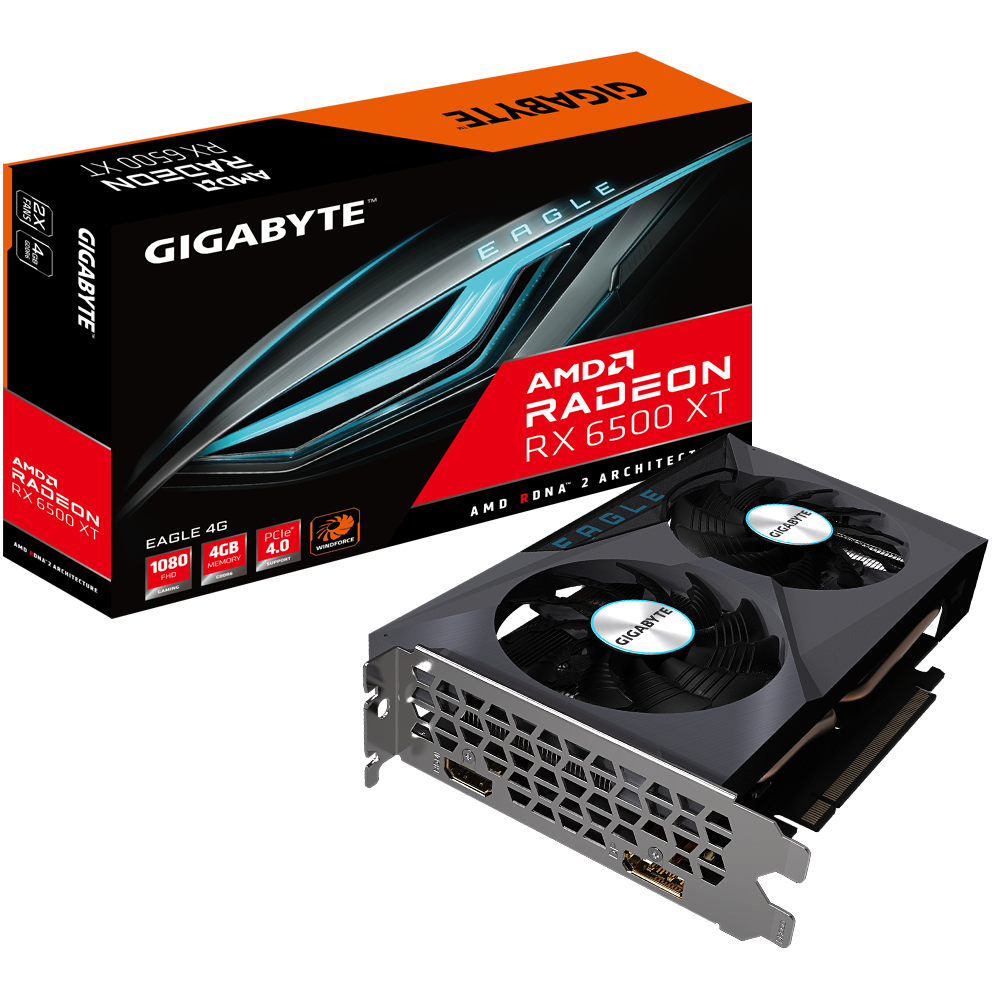

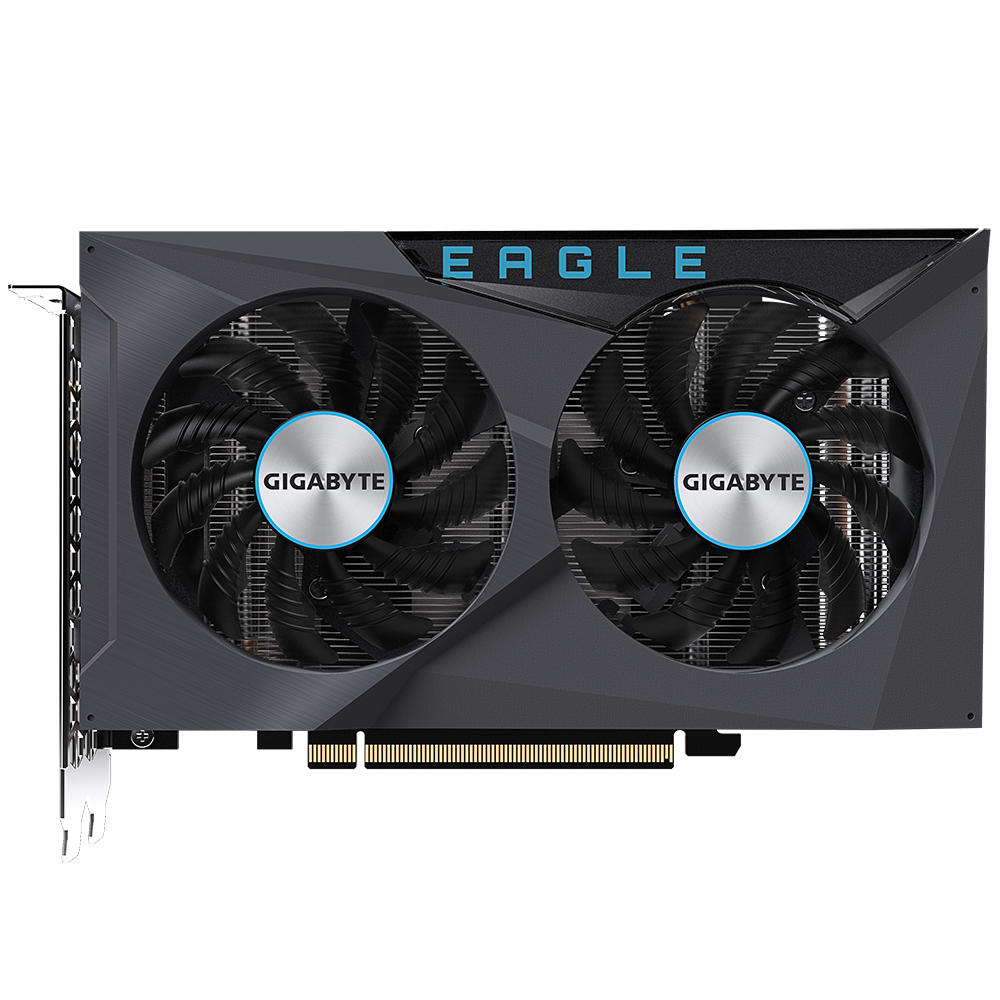

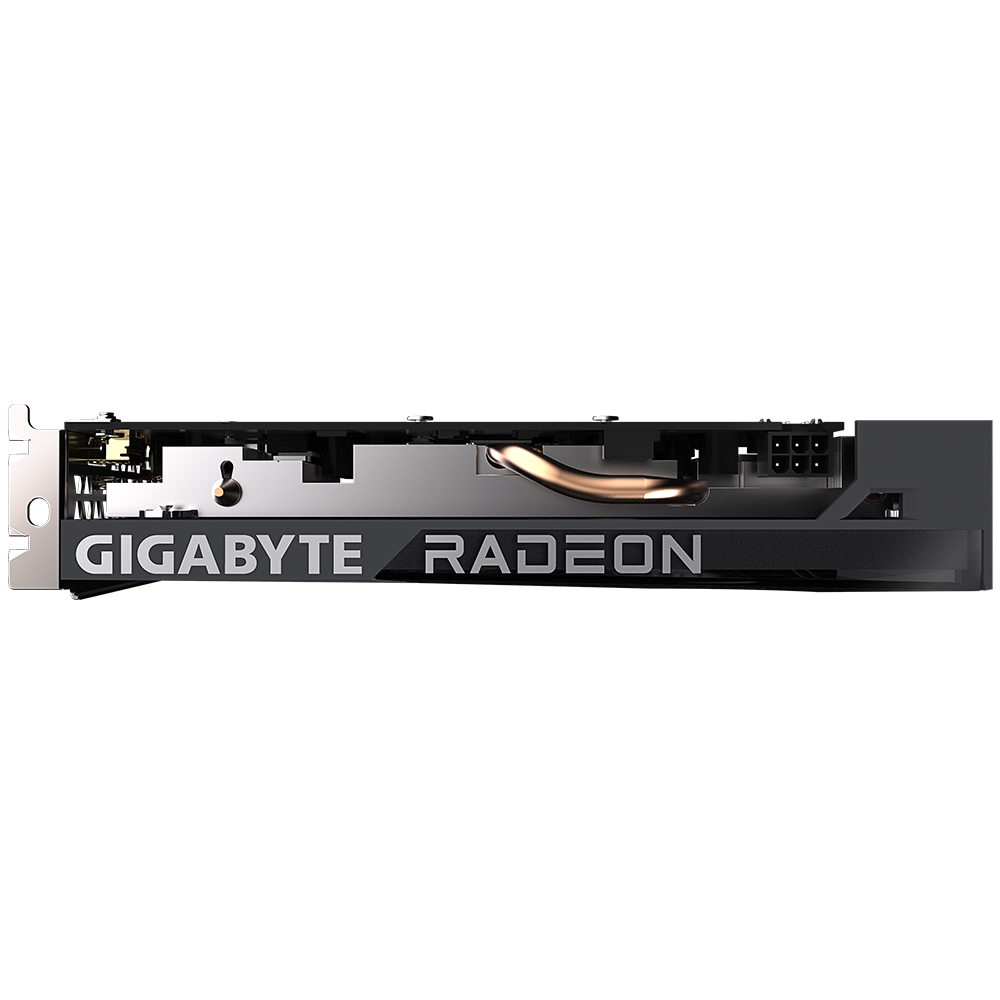

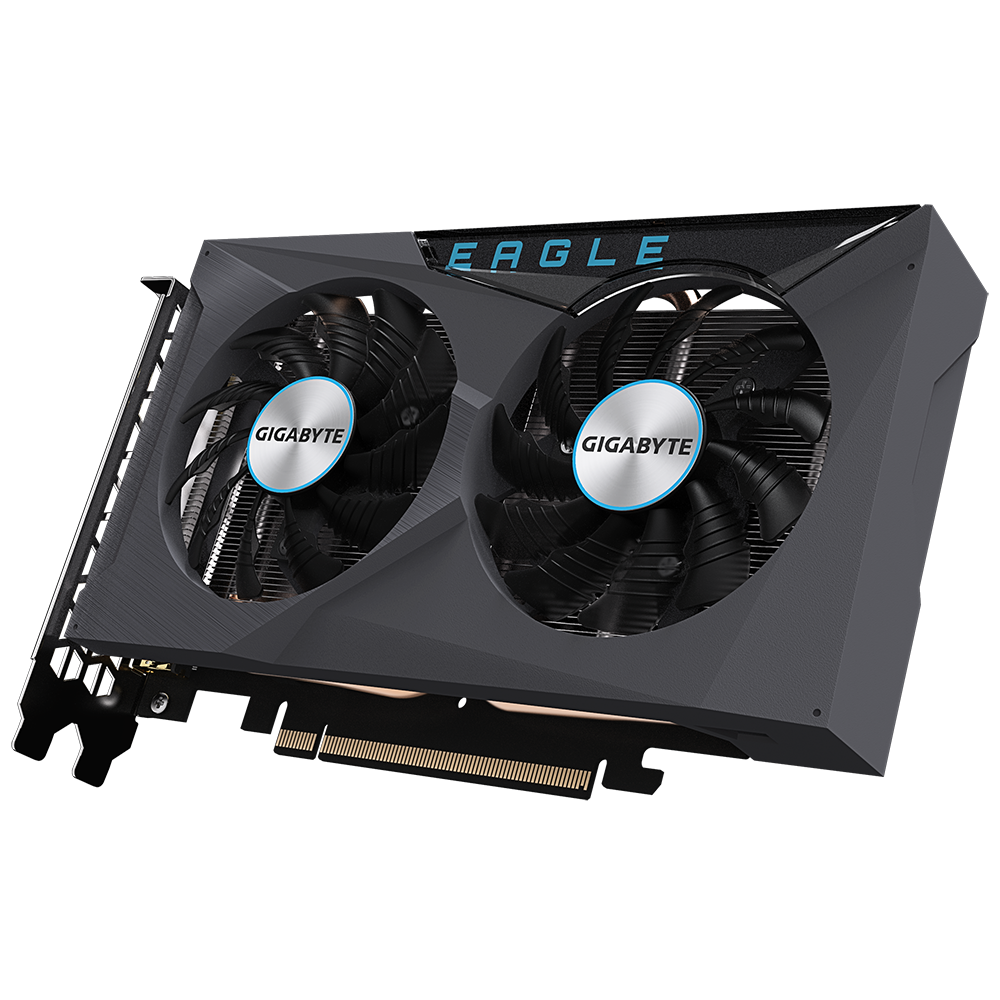

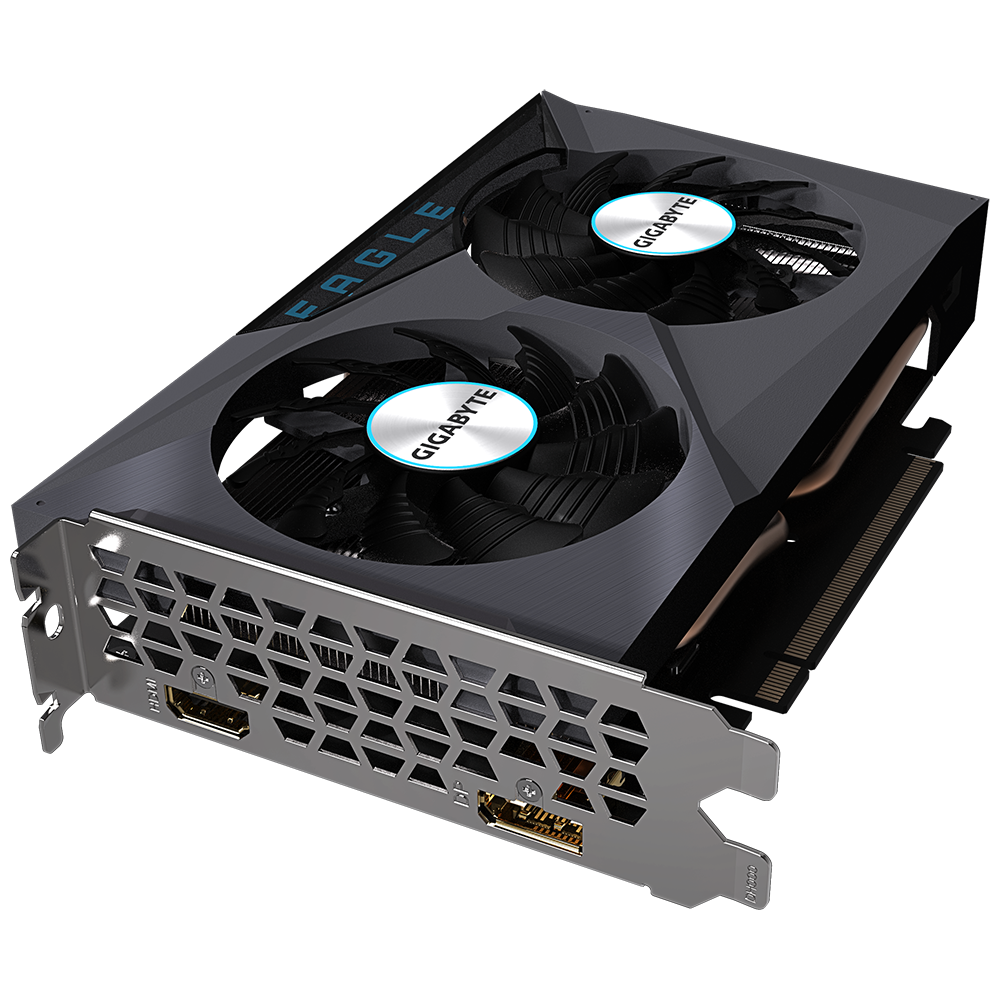

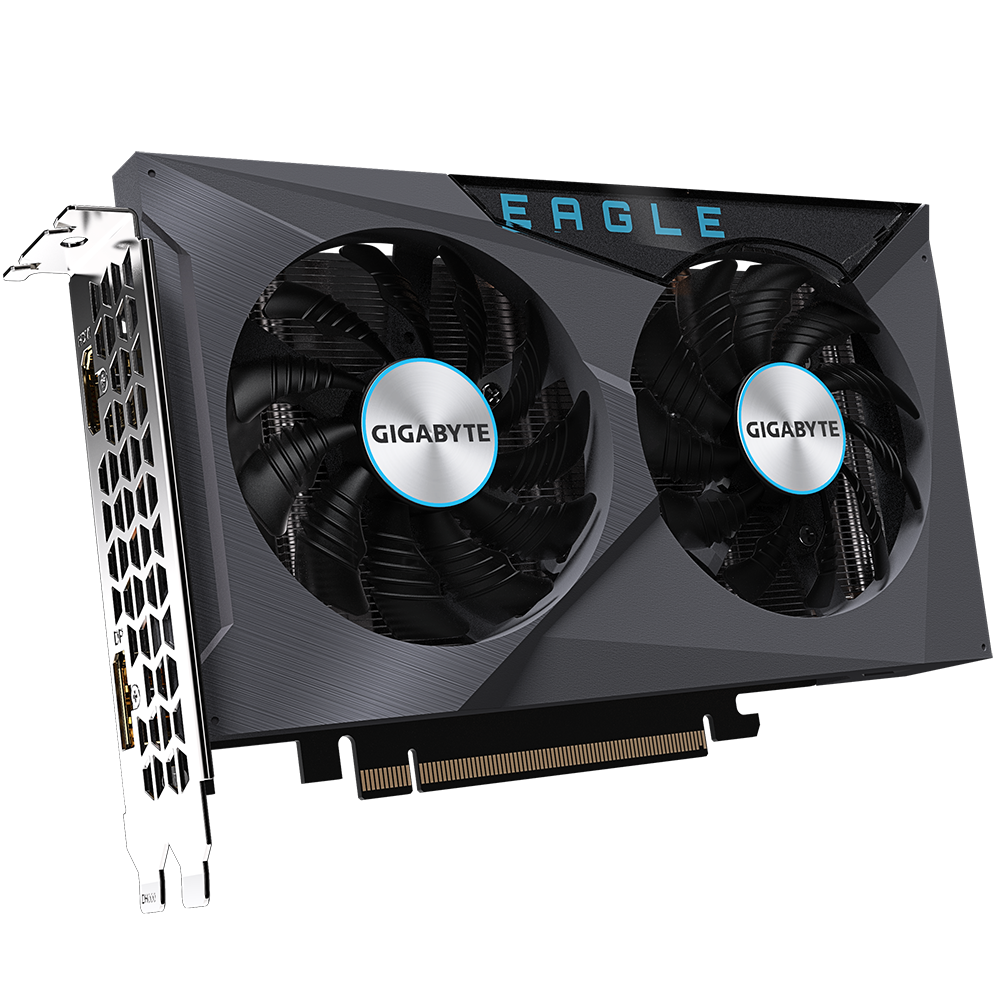

Radeon™ RX 6500 XT EAGLE 4G
- Powered by AMD RDNA™ 2 Radeon™ RX 6500 XT
- Integrated with 4GB GDDR6 64-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- Graphene nano lubricant
CORE CLOCK
- TBD
Graphics Processing
Radeon™ RX 6500 XT
Core Clock
TBD
Stream Processors
1024
Process Technology
6 nm
Memory Clock
18000 MHz
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
64 bit
Memory Bandwidth (GB/sec)
144 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
2
Card size
L=192 W=117 H=38 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
400W
Power Connectors
6 pin*1

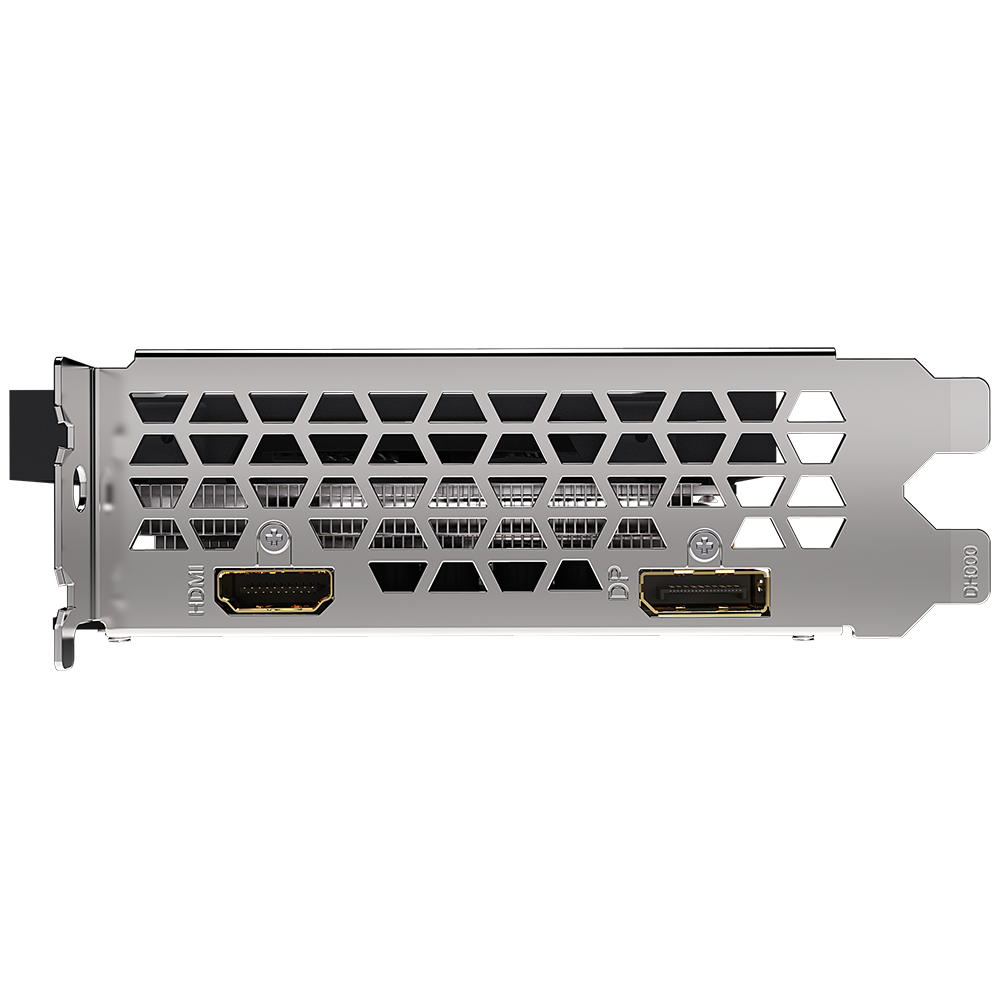

Output
DisplayPort 1.4a *1
HDMI 2.1 *1
Accessories
Quick guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU
running a bursty workload. Boost clock achievability, frequency,
and sustainability will vary based on several factors, including
but not limited to: thermal conditions and variation in
applications and workloads.
* “Game Clock” is the expected GPU clock when running typical
gaming applications, set to typical TGP (Total Graphics Power).
Actual individual game clock results may vary.
