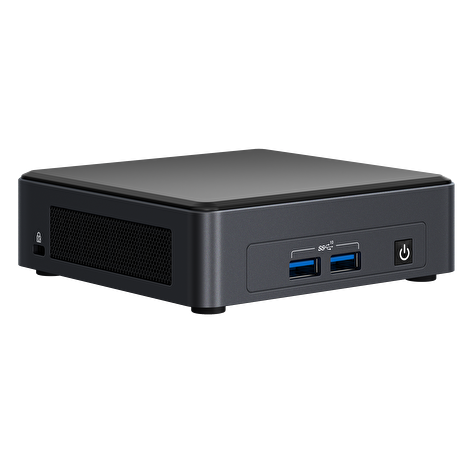

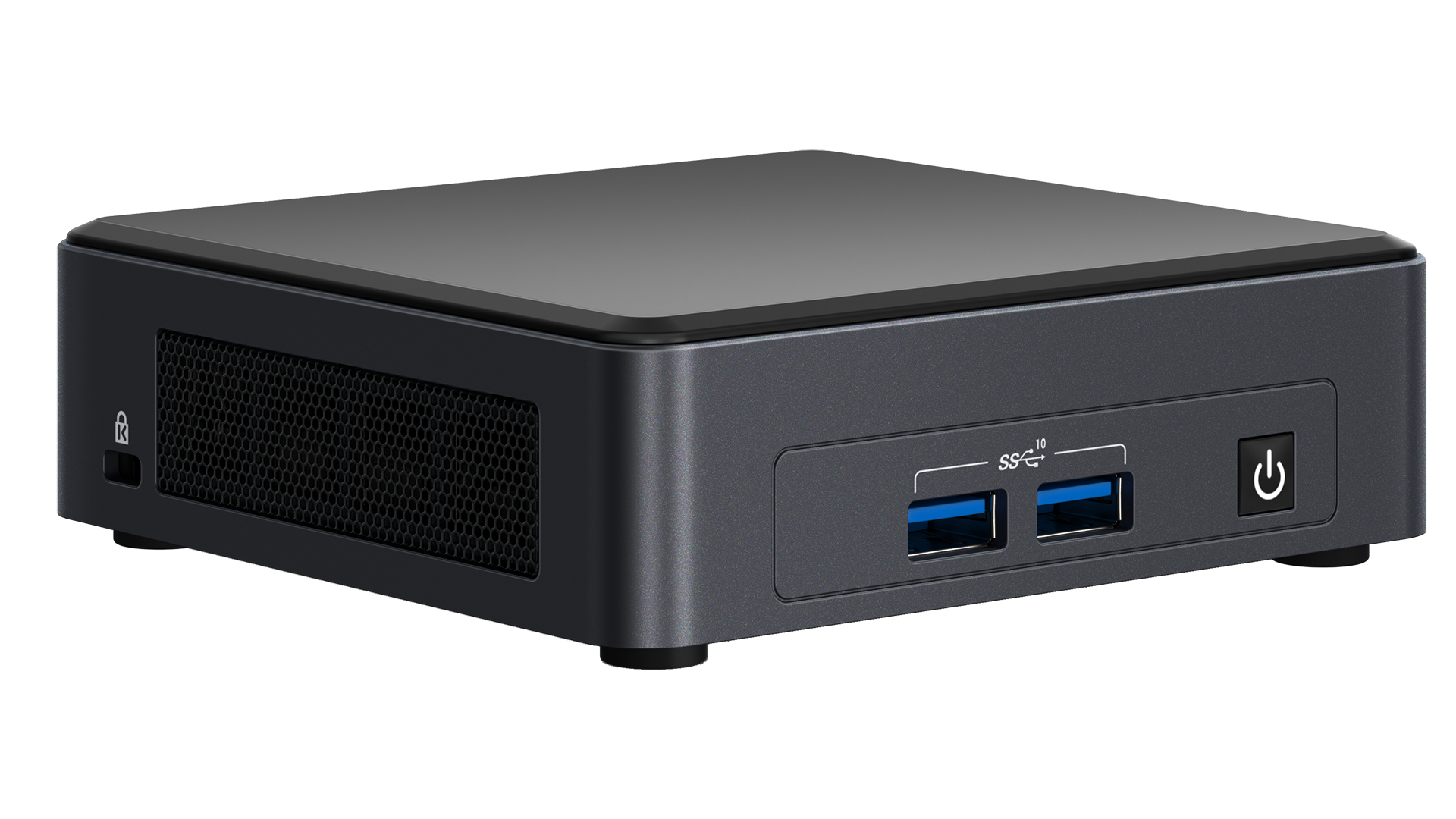

INTEL NUC Kit NUC11TNKi5, i5 Core 1135G7/DDR4/USB3.2/LAN/ Wi-Fi/ Iris/ M.2 (Tiger Canyon) bez kabelu

Záruka: 24 měsíců | PN: BNUC11TNKI50000 | Kód: 3321778 | CZ distribuce
Intel NUC 11 Pro Kit NUC11TNKi5 TECHNICAL SPECIFICATIONS Essentials Product Collection Intel NUC Kit with 11th Generation Intel Core™ Processors Code Name Products formerly Tiger Canyon Status Launched Launch Date Q1'21 Expected Discontinuance 1H'24 Supported Operating Systems Windows 10, 64-bit*…
Cena s DPH12 122,–
Běžná cena s DPH
Cena bez DPH10 018,– Kč
Skladem
Doprava od 61 Kč
 Přepravní službou do 1.12.od 120 Kč
 Na výdejním místě do 2.12.od 61 Kč
Termín dodání závisí na výběru dopravy a vytíženosti přepravní společnosti.
ks

Popis

Intel NUC 11 Pro Kit NUC11TNKi5


TECHNICAL SPECIFICATIONS

Essentials
Product Collection Intel NUC Kit with 11th Generation Intel Core™ Processors
Code Name Products formerly Tiger Canyon
Status Launched
Launch Date Q1'21
Expected Discontinuance 1H'24
Supported Operating Systems Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board Number NUC11TNBi5
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
TDP 28W
DC Input Voltage Supported 12-24 VDC
Processor Included Intel Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
# of Cores 4
# of Threads 8
Max Turbo Frequency 4.20 GHz
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported No
Processor Graphics
Processor Graphics Intel Iris Xe Graphics
Integrated Graphics Yes
Graphics Output Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
# of Displays Supported 4
Expansion Options
PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)
I/O Specifications
# of USB Ports 4
USB Configuration Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Serial Port via Internal Header Yes
Integrated LAN Intel Ethernet Controller i225-LM
Integrated Wireless Intel Wi-Fi 6 AX201
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ Ports 1x Thunderbolt™ 4, 1x Thunderbolt™ 3
Package Specifications
Chassis Dimensions (L x W x H) 117 x 112 x 37 mm
Advanced Technologies
Intel Optane™ Memory Supported ‡ No
Intel Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel ME Firmware Version 15
Intel Virtualization Technology (VT-x) ‡ Yes
Intel Platform Trust Technology (Intel PTT) Yes
Security & Reliability
Intel AES New Instructions Yes
Technické specifikace mohou být změněny bez předchozího upozornění. Obrázky mají pouze informativní charakter.
