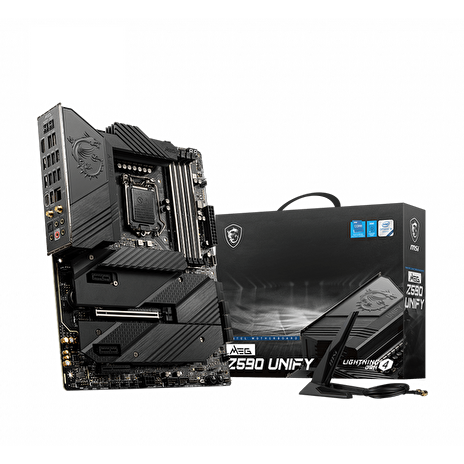

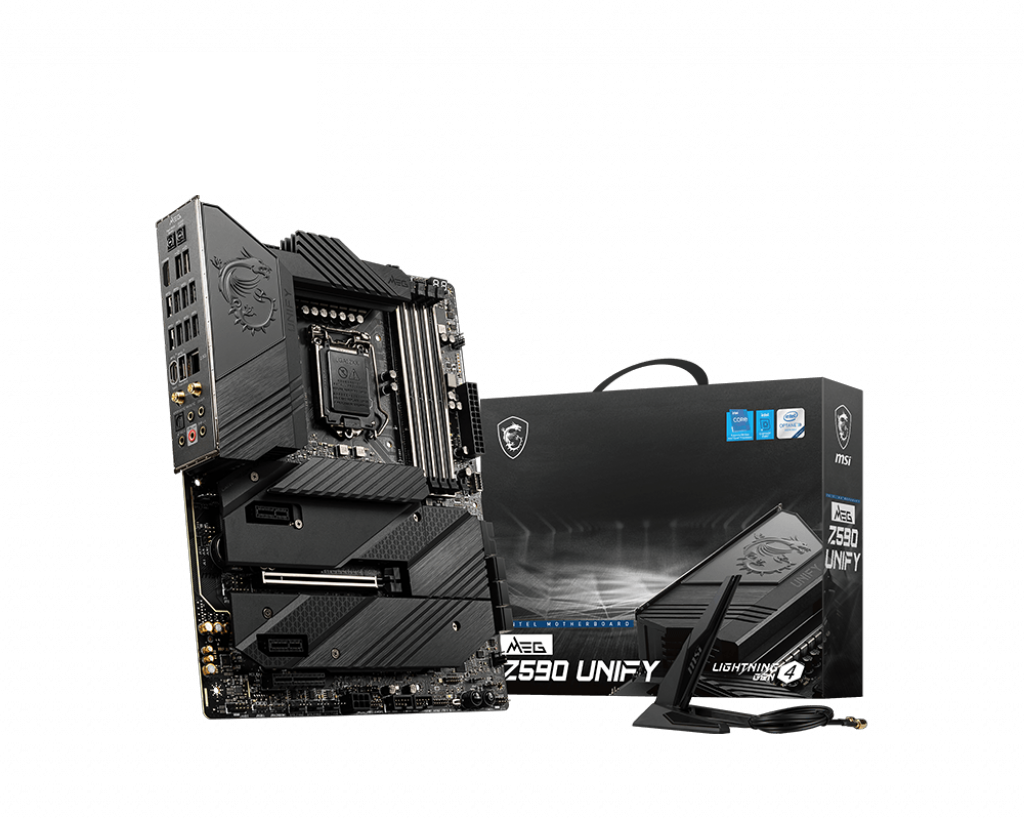

MSI MB Sc LGA1200 MEG Z590 UNIFY, Intel Z590, 4xDDR4, 1xHDMI, WI-FI
MSI MB Sc LGA1200 MEG Z590 UNIFY, Intel Z590, 4xDDR4, 1xHDMI, WI-FIMSI MB Sc LGA1200 MEG Z590 UNIFY, Intel Z590, 4xDDR4, 1xHDMI, WI-FIMSI MB Sc LGA1200 MEG Z590 UNIFY, Intel Z590, 4xDDR4, 1xHDMI, WI-FIMSI MB Sc LGA1200 MEG Z590 UNIFY, Intel Z590, 4xDDR4, 1xHDMI, WI-FIMSI MB Sc LGA1200 MEG Z590 UNIFY, Intel Z590, 4xDDR4, 1xHDMI, WI-FI

MSI MB Sc LGA1200 MEG Z590 UNIFY, Intel Z590, 4xDDR4, 1xHDMI, WI-FI

Záruka: 24 měsíců | PN: MEG Z590 UNIFY | Kód: 3179848 | CZ distribuce
MEG Z590 UNIFY Supports 11th and 10th Gen Intel Core™ / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5600(OC) MHz Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making…
Cena s DPH12 043,–
Cena bez DPH9 953,– Kč
Skladem
Doprava od 61 Kč
 Přepravní službou do 30.7.od 160 Kč
 Na výdejním místě do 2.8.od 61 Kč
Termín dodání závisí na výběru dopravy a vytíženosti přepravní společnosti.
ks

Popis

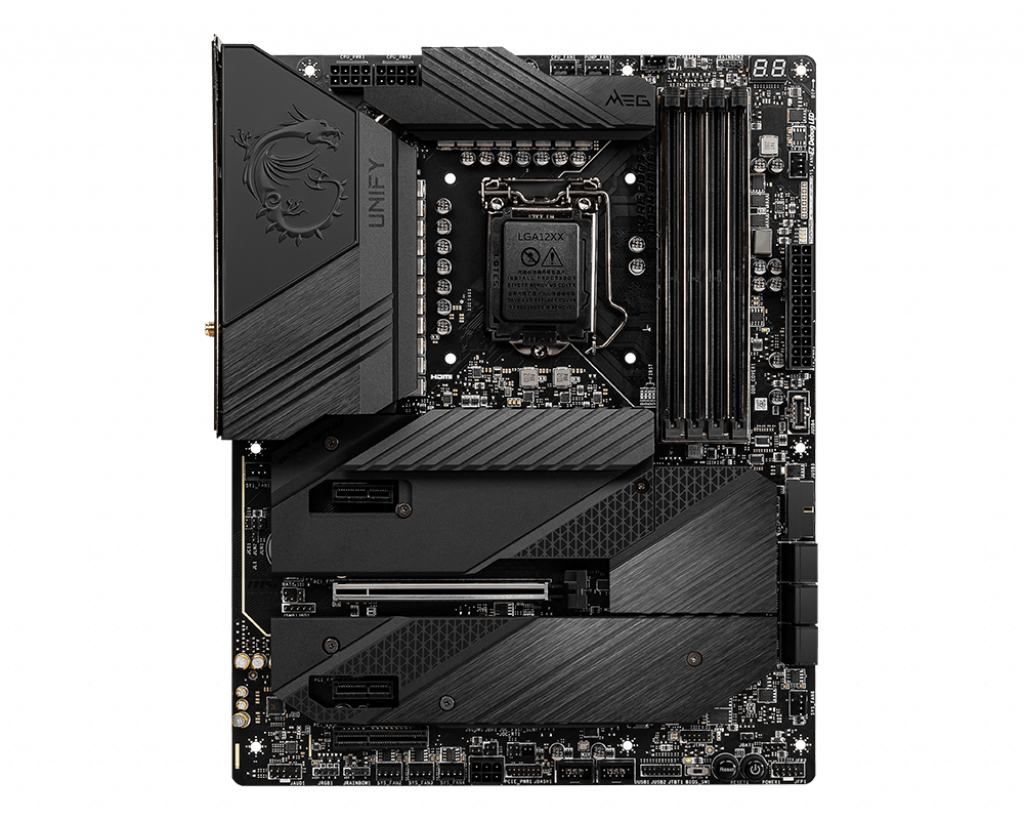

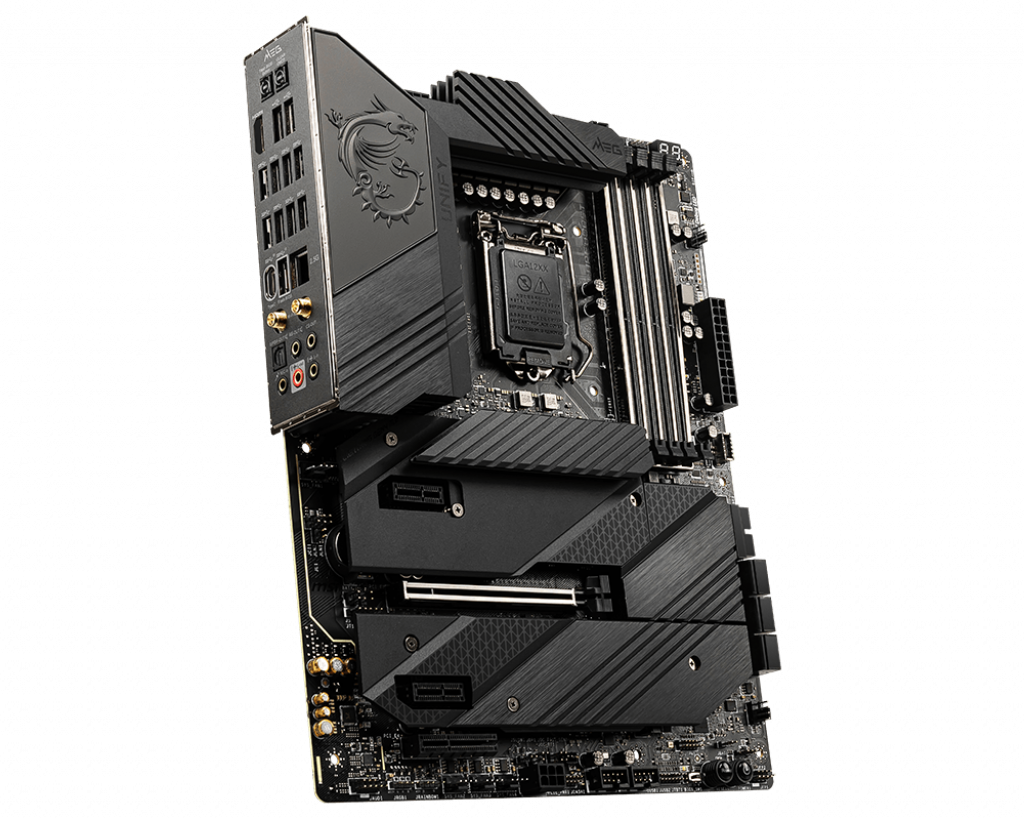

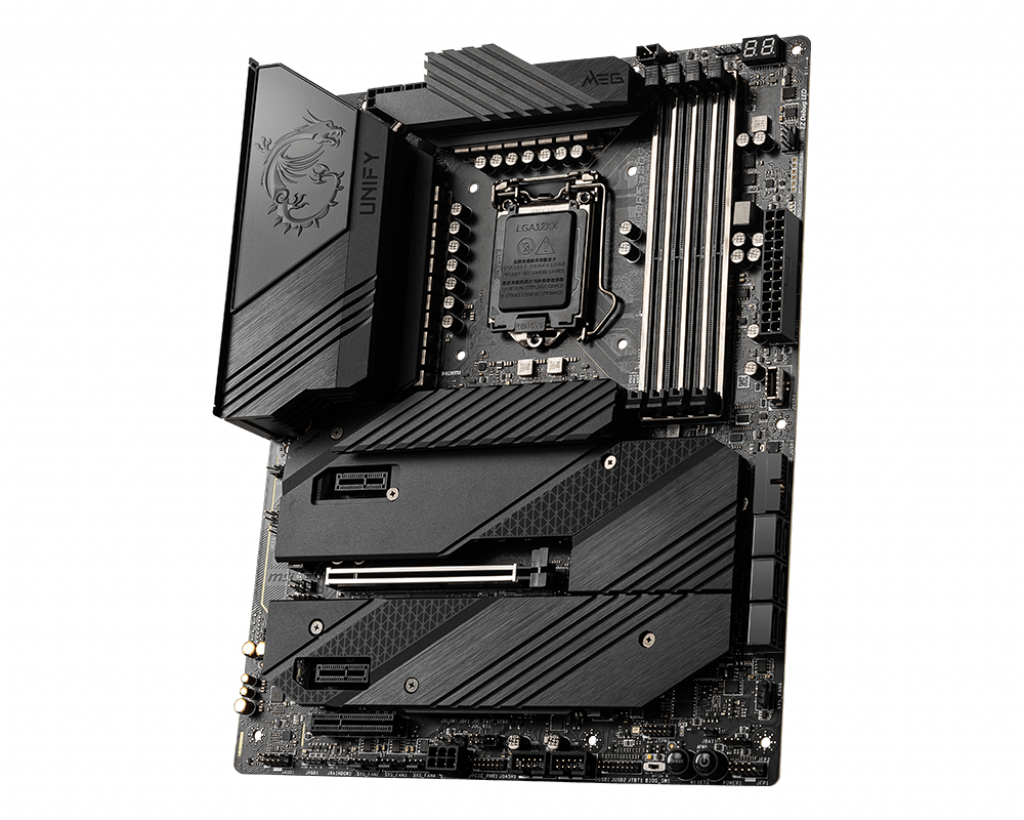

MEG Z590 UNIFY

  • Supports 11th and 10th Gen Intel Core™ / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
  • Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
  • Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
  • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.

PROCESSOR

Supports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors*
Processor socket LGA1200
*Please go to intel.com for compatibility information.

CHIPSET

Intel Z590 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB*
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)*
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)*
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
*Please refer to www.msi.com for more information on compatible memory

EXPANSION SLOTS

1x PCIe x16 slot (PCI_E2, from CPU)
Supports up to PCIe 4.0 x16 with11th Gen CPU*
Supports up to PCIe 3.0 x16 with10th Gen CPU*
1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)**
2x PCIe 3.0 x1 slots (from Z590 chipset)
*PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS selection.
**PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.

MULTI-GPU

Supports 2-Way AMD CrossFire™ Technology

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz*/**
*Available for the processor with integrated graphics.
**Graphics specifications may vary depending on the CPU installed.

STORAGE

6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
M2_1 (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2*, M2_3** slots
Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)***
Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)****
M2_2 supports 2242/ 2260/ 2280 storage devices
M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
M2_4 slot (from Z590 chipset) ***/*****
Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core™ processors

*SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
**SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.
***Intel Optane™ Memory Ready. Before using Intel Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
****PCIe 4.0 specification is available only on 11th Gen Intel CPU.
*****PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Intel Z590 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector)
10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector)
2x USB 2.0 ports on the back panel
Hub-GL850G
4x USB 2.0 ports through internal USB 2.0 connector

AUDIO

Realtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Intel I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

Intel WiFi 6E AX210
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2**, FIPS, FISMA
*Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
**Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 2-pin Thermal Sensors connector
1xTPM module connector
1x Tuning Controller connector
1x TBT connector (Supports RTD3)

LED FEATURES

1x 2-Digit Debug Code LED
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin JCORSAIR LED connector

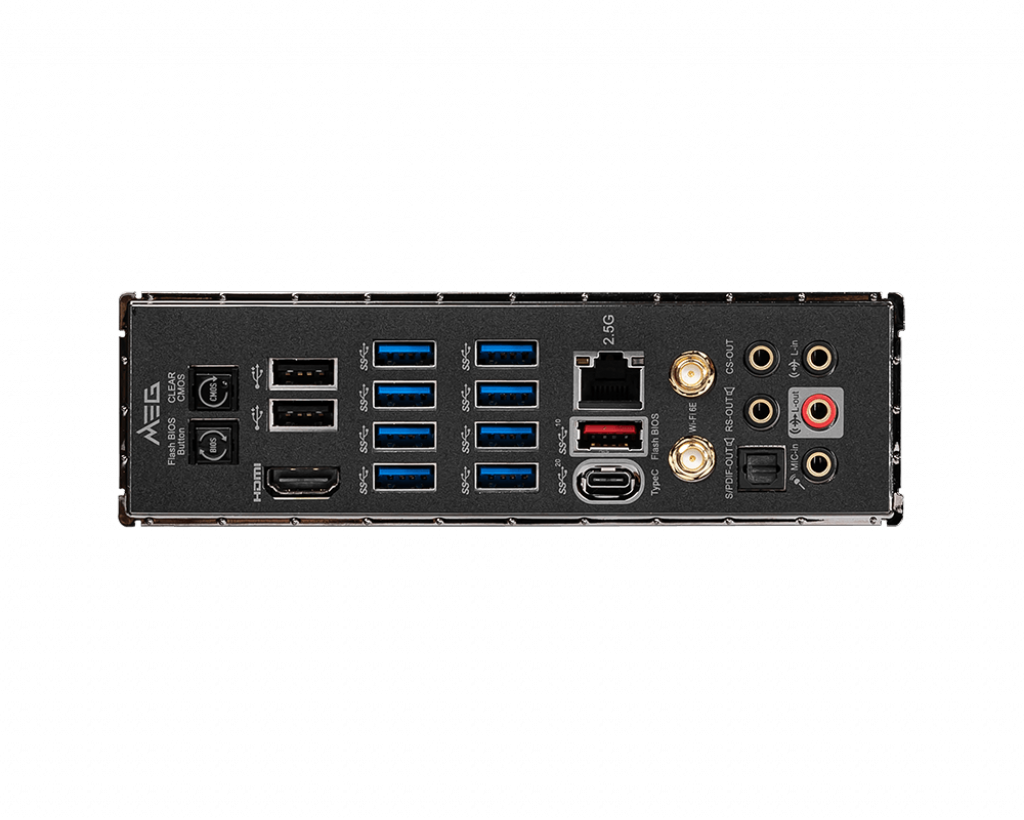

BACK PANEL PORTS

Clear CMOS Button
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out
MEG Z590 UNIFY

DIMENSIONS

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows 10 64-bit

Technické specifikace mohou být změněny bez předchozího upozornění. Obrázky mají pouze informativní charakter.
