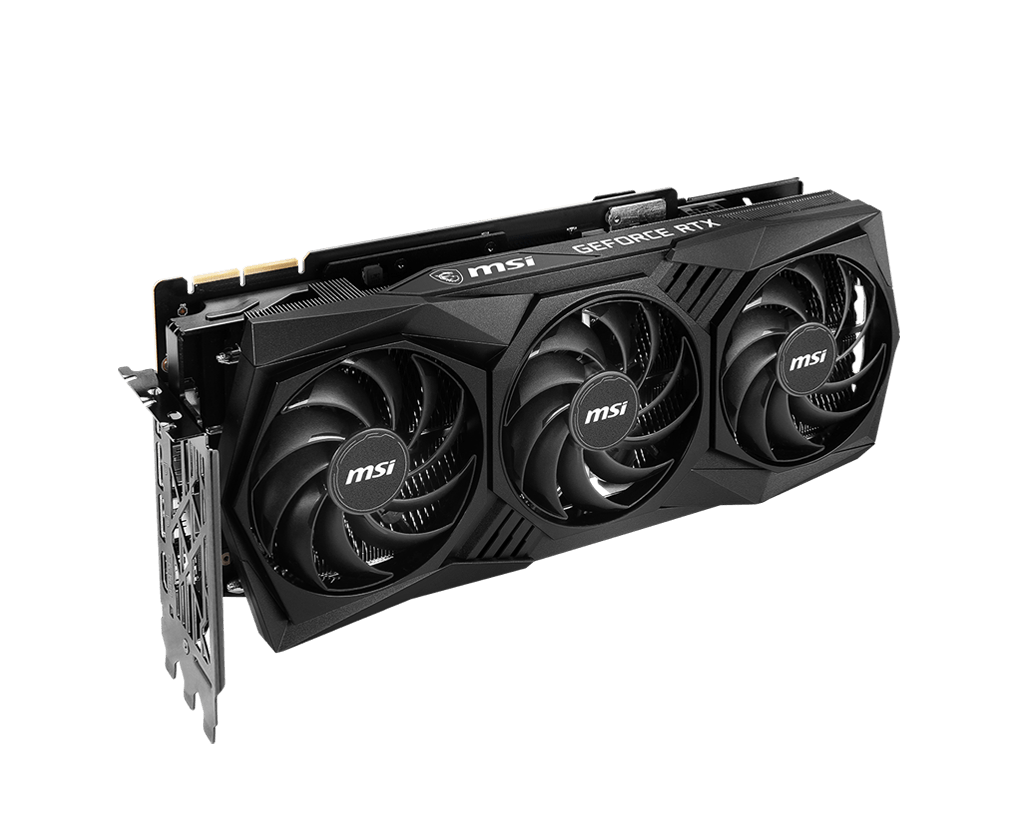

GeForce RTX™ 3090 Ti BLACK TRIO 24G
The GeForce RTX™ 3090 Ti is colossally powerful in every way, giving you a whole new tier of performance. It’s powered by the NVIDIA Ampere architecture, which doubles down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors.
Boost Clock / Memory Speed
- 1860 MHz / 21 Gbps
- 24GB GDDR6X

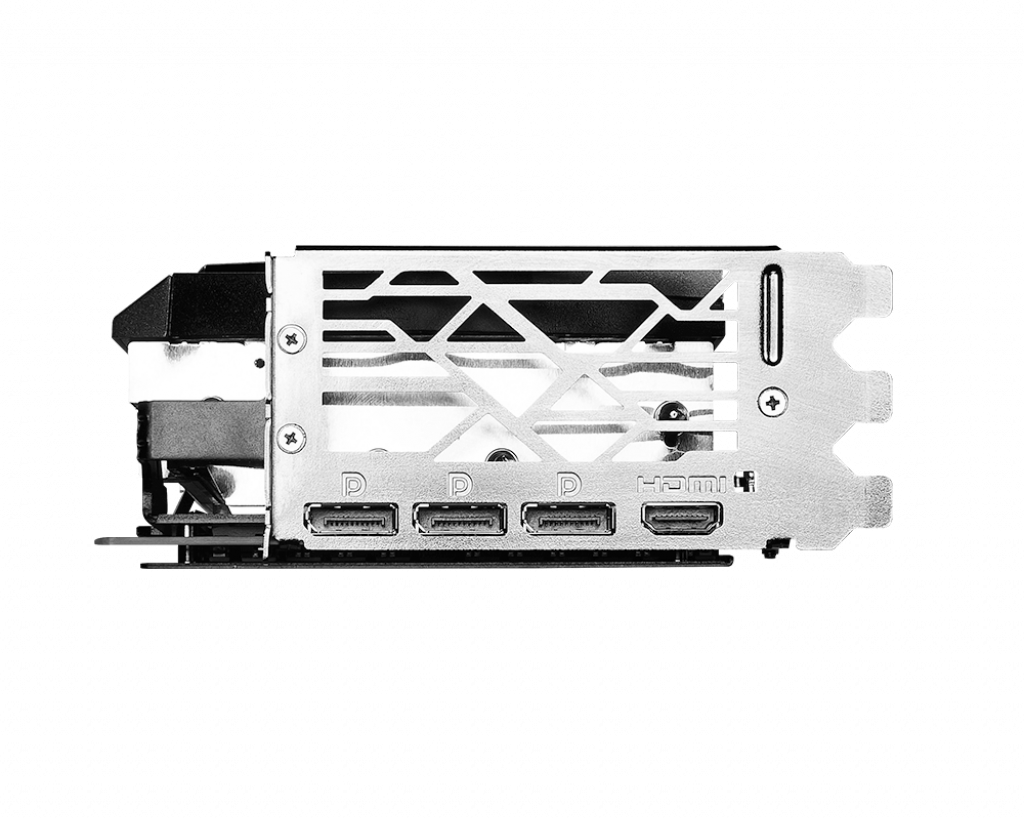

- DisplayPort x 3 (v1.4a)
- HDMI x 1 (Supports 4K 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1)

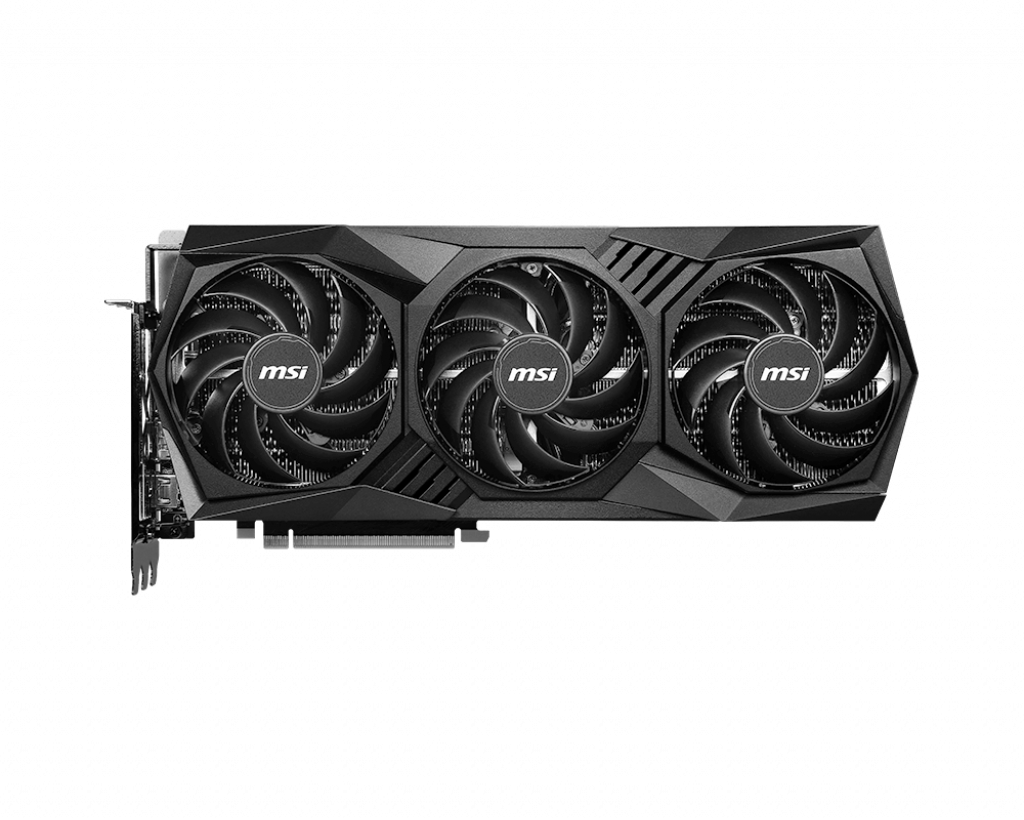

TRI FROZR 2 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Optional BIOS available to download in SUPPORT (BIOS) – Low-Temperature BIOS or Default Low-Noise BIOS
MODEL NAME
GeForce RTX™ 3090 Ti BLACK TRIO 24G
GRAPHICS PROCESSING UNIT
NVIDIA GeForce RTX™ 3090 Ti
INTERFACE
PCI Express Gen 4
CUDA CORES
10752 Units
CORE CLOCKS
Boost: 1860 MHz
MEMORY SPEED
21 Gbps
MEMORY
24GB GDDR6X
MEMORY BUS
384-bit
OUTPUT
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K 120Hz HDR, 8K 60Hz HDR and Variable Refresh
Rate as specified in HDMI 2.1)
HDCP SUPPORT
Y
POWER CONSUMPTION
450W
POWER CONNECTORS
16-pin x1
RECOMMENDED PSU
850 W
CARD DIMENSION (MM)
325 x 140 x 62 mm
WEIGHT (CARD / PACKAGE)
1670g / 2623g
DIRECTX VERSION SUPPORT
12 Ultimate
OPENGL VERSION SUPPORT
4.6
NVLINK SUPPORT
Y
MAXIMUM DISPLAYS
4
VR READY
Y
G-SYNC TECHNOLOGY
Y
DIGITAL MAXIMUM RESOLUTION
7680x4320
