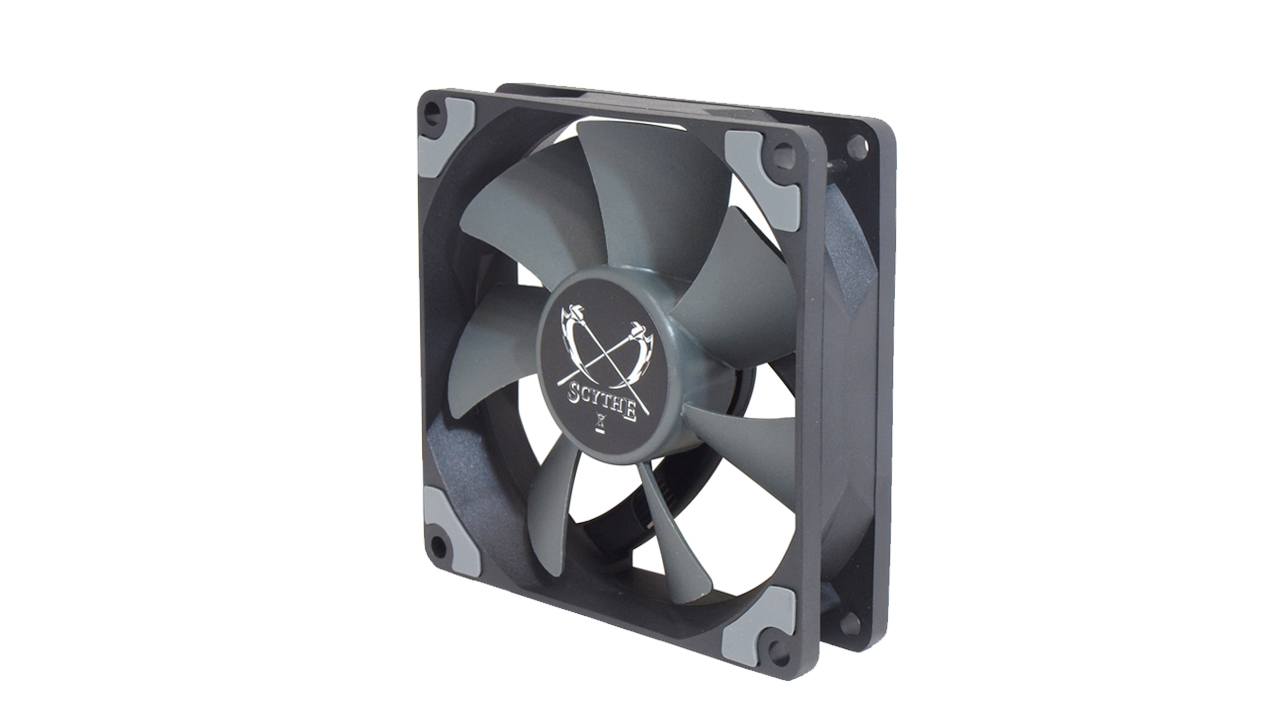

KAZE-FLEX 92mm PWM
Model number: KF9225FD23-P / JAN: 4571225057477
92mm case fan "KAZE FLEX" normal model
· Uses a high-density sealed FDB (Sealed Precision FDB) with long
life
-92mm case fan "KAZE FLEX"
Sealed Precision FDB
· Highly oil-retaining ability that suppresses volatilization and
leakage due to the completely sealed bearing structure with the
oil-filled cap removed.
· The fluid bearing structure that stores oil in the space between
the rotating shaft and the bearing provides a high lubrication
effect and quietness. The bearing uses a high-strength and
high-durability high alloy to achieve low friction and long life.
· Uses high-quality lubricating oil that can withstand high
temperatures of 200-250C
Shock absorbing rubber pad
-Excellent vibration absorption and fan stability.
Extender cable specifications
· The fan cable is usually 30 cm. Can be extended up to 50 cm with
an extension cable
Accessories
-Fan extender cable, mounting screws
Package
· 100 (W) × 170 (H) × 28 ( D) mm · 130 g
92mm case fan "KAZE FLEX"
Variable PWM / 2300 rpm
Sealed Precision FDB
Adopts a completely sealed bearing structure that eliminates the
oil-sealed cap.
This realizes a high holding capacity that minimizes oil
volatilization and leakage
Oil in the space between the rotating shaft and the bearing Highly
effective lubrication and quietness are achieved by the fluid
bearing structure that stores water. By using a
high alloy with high strength and durability in the bearing part,
low friction and long life are realized.
Uses oil.
Shock absorption rubber pad
By adopting "shock absorption rubber pad", it has excellent
vibration absorption and fan stability.
Long life
MTBF 120,000 hours long life under 25 ? environment
Extender cable specifications The
fan cable is normally 30 cm, and can be
extended to 50 cm with the extension cable (RGB cable cannot be
extended to 50 cm)
Accessories: Extender cable for fan, mounting screw
4-pin PWM connection automatically changes fan speed
92 x 92 x 26 mm thick, without ribs
Package size / weight: 100 (W) × 170 (H) × 28 (D) mm · 130 g
RoHS compliant eco-friendly product
Model number KF9225FD23-P
JAN 4571225057477
size 92 x 92 x 26 mm thick
Speed ??(variable PWM) 300 (± 200) ~ 2300 rpm (± 10%)
Noise / air volume 7.3 ~ 28.83 dBA / 6.75 ~ 48.88 CFM
Static pressure 00.8 ~ 2.03 mmH2O / 7.85 ~ 19.91 Pa
Rated current 0.2 A
Drive voltage 12 VDC
rib None
weight 90 g
Fan connection PWM 4 pin
cable length Fan cable 30cm (extendable to 50cm)
bearing Sealed Precision FDB
MTBF 120,000 hours (25C)
SCYTHE KF9225FD23-P Kaze Flex 92mm PWM 300-2300rpm
Záruka: 24 měsíců | PN: KF9225FD23-P | Kód: 2754223 | CZ distribuce
KAZE-FLEX 92mm PWM
Model number: KF9225FD23-P / JAN: 4571225057477
92mm case fan "KAZE FLEX" normal model
· Uses a high-density sealed FDB (Sealed Precision FDB) with long life
-92mm case fan "KAZE FLEX"
Sealed Precision FDB
· Highly oil-retaining ability that suppresses volatilization and leakage due to the completely sealed bearing structure…
Cena s DPH | 513,– Kč |
---|---|
Cena s DPH pro registrované | 501,– Kč |
Cena bez DPH | 424,– Kč |
Skladem
Doprava od 160 Kč
Přepravní službou do 9.7.od 160 Kč
Termín dodání závisí na výběru dopravy a vytíženosti přepravní společnosti.
Popis
Technické specifikace mohou být změněny bez předchozího upozornění. Obrázky mají pouze informativní charakter.
