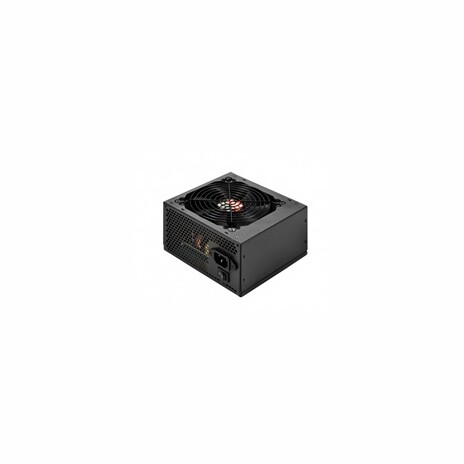

SPIRE zdroj EAGLEFORCE 500W, 12cm, 80+

Záruka: 24 měsíců | PN: SP-ATX-500W-80+ | Kód: 2865825 | CZ distribuce

Master Carton Dimension (cm) 56 x 54 x 24 Package Weight 1.9 Package Dimension (cm) 18 x 16 x 10 Quantity (PCS) / Block Pallet 200 Release Date 08 / 18 / 2020 Unit Weight 1.8 Unit Dimension (cm) 14 x 15 x 8.6 Form Factor Type ATX Accessories 1. User manual 2. Mounting set screws and includes Auto Fan…

Momentálně nedostupné

Popis

Master Carton Dimension (cm)	56 x 54 x 24
Package Weight	1.9
Package Dimension (cm)	18 x 16 x 10
Quantity (PCS) / Block Pallet	200
Release Date	08 / 18 / 2020
Unit Weight	1.8
Unit Dimension (cm)	14 x 15 x 8.6
Form Factor Type	ATX
Accessories	1. User manual 2. Mounting set screws and includes
Auto Fan Speed	Yes
Bearing Type	Sleeve
Budget	No
Cable Length	500mm
Cable Type	Flat - Sleeved
Certification	80PLUS
Color	black
Connectors	1* 20+4P, 500mm 1* P8 (4+4) 500mm 1* P6 (2+4) 600mm 1* SATA+SATA+IDE, 500mm 1* IDE+IDE+SATA, 500mm 1* IDE+SATA+SATA, 500mm
Cooling	12V DC
Dual Rail 12V	Yes
Efficiency	80 PLUS * Certified
Fan Size (cm)	12 x 12 x 2.5
Fan Type	Silent - Black
Features	OCP / OVP / UVP / OPP / OTP / SCP
Frequency	50~60Hz
Gaming	Yes
Hold Up Time	t5>17 mS at 100% Load
Housing	Steel
LED Fan	No
Life Expectancy (HRS)	100.000
Material	SPCC
Material Thickness (mm)	0.8
Modular Cables	No
Noise Level (dBA)	27.0
Nominal Power (w)	500
Operating Temperature (°C)	0~40
Packaging Includes	User manual QR code Mounting screws Power lead cable
Packaging	Brown carton
Packaging Type	Retail box
P.G. Signal	100-500ms
Rated Current (A)	230VAC, 4A
Remark	CE/ROHS/WEEE
Silent	Yes
Specifications	V2.31
Storage Temperature (°C)	-20 ~ 40
Total Output Power / RMS (W)	500
Voltage AC (INPUT)	200 ~ 240
Voltage Protection	+12V trip point 13.4V - 15.6V +5V trip point 5.74V - 7.0V +3.3V trip point 3.76V - 4.3V
Warranty	2 years
