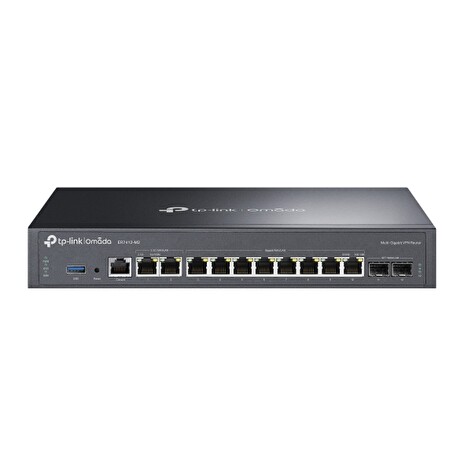

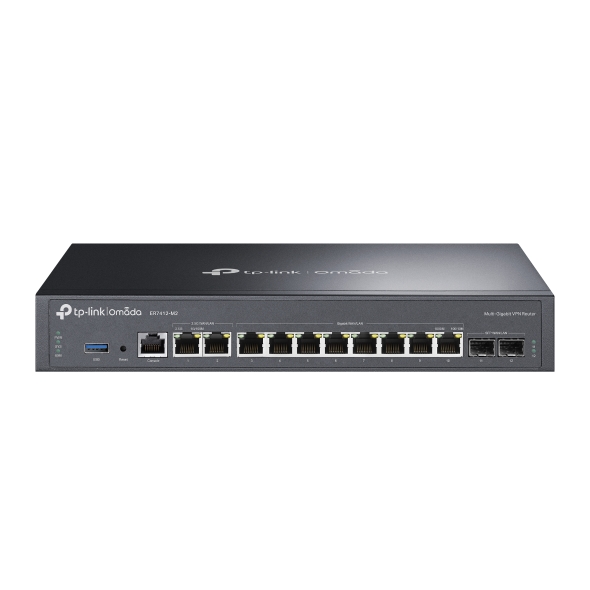

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

ER7412-M2
Omada Multi-Gigabit VPN Router *Čtyřjádrový procesor @2.0GHz *2× 2,5G RJ45 WAN/LAN porty *10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45) *1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle) *Až 11 WAN portů *Multi-WAN Load Balancing zvyšuje míru využití vícelinkového širokopásmového připojení *Vysoce zabezpečené SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN *Centralizovaná správa cloudu přes web nebo aplikaci Omada *Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.

Specifikace

BezpečnostAccess Control *Source/Destination IP-Based ACL *Stateful ACL *IPv4/IPv6 ACL *National Based ACL Filtering *WEB Group Filtering§ *URL Filtering *Web Security ARP Inspection *Sending GARP Packets *ARP Scanning *IP-MAC Binding Attack Defense *TCP/UDP/ICMP Flood Defense *Block TCP Scan (Stealth FIN/Xmas/Null) *Block Ping from WANHardwareStandards and Protocols *IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q *TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interface *1× 2.5G RJ45 WAN/LAN Port *1× 2.5G RJ45 WAN/LAN Port *2× Gigabit SFP WAN/LAN Ports *8× Gigabit RJ45 WAN/LAN Ports *1× RJ45 Console Port *1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) Network Media *10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) *2500BASE-T: UTP category 5e, 6 cable (Max 100 m) Button *Reset Button Power Supply *100–240 VAC, 50/60 Hz Flash *128MB NAND DRAM *1 GB DDR4 Dimensions ( W x D x H ) *294×180×44 mm Protection *4 kV surge protection Enclosure *Steel Mounting *Desktop *Rackmountable Max Power Consumption *18.5W (With USB 3.0 connected)Základní funkceWAN Connection Type *Static IP/Dynamic IP *PPPoE (supports MRU Configuration) *PPTP *L2TP *Mobile Broadband: 4G/3G modem for backup via USB port MAC Clone *Modify WAN/LAN MAC Address DHCP *DHCP Server *DHCPv6 PD Server (only in Standalone Mode) *DHCP Options Customization *DHCP Address Reservation *Multi-IP Interfaces *Multi-Net DHCP IPv6 *StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN *802.1Q VLAN IPTV *IGMP v2/v3 Proxy, Custom Mode, Bridge ModePokročilé funkceAdvanced Routing *Static Routing *Policy Routing *RIP (available in Standalone Mode) *OSPF (available in Standalone Mode) Bandwidth Control *IP/Port-based Bandwidth Control Load Balance *Intelligent Load Balance *Application Optimized Routing *Link Backup (Timing, Failover) *Online Detection NAT *One-to-One NAT *Multi-Net NAT *Virtual Server *Port Triggering *NAT-DMZ *FTP/H.323/SIP/IPSec/PPTP ALG *UPnP Session Limit *IP-based Session LimitVPNGRE *Only in Standalone Mode SSL VPN *80 Tunnels IPsec VPN *150 IPSec VPN Tunnels *LAN-to-LAN, Client-to-LAN *Main, Aggressive Negotiation Mode *DES, 3DES, AES128, AES192, AES256 Encryption Algorithm *IPsec Failover *IKE v1/v2 *MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm *NAT Traversal (NAT-T) *Dead Peer Detection (DPD) *Perfect Forward Secrecy (PFS) PPTP VPN *PPTP VPN Server *PPTP VPN Client (15) *150 Tunnels *PPTP with MPPE Encryption L2TP VPN *L2TP VPN Server *L2TP VPN Client (15) *150 Tunnels *L2TP over IPSec OpenVPN *OpenVPN Server *OpenVPN Client (11) *121 OpenVPN Tunnels *"Certificate + Account" Mode *Full Mode
