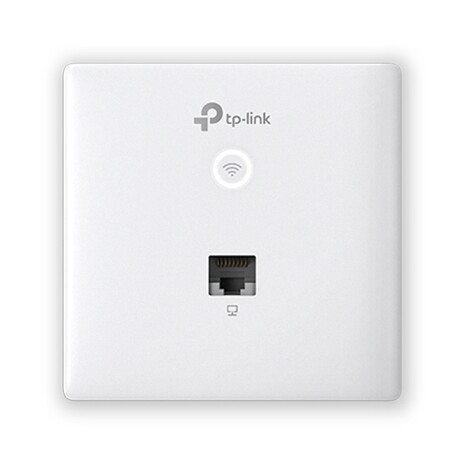

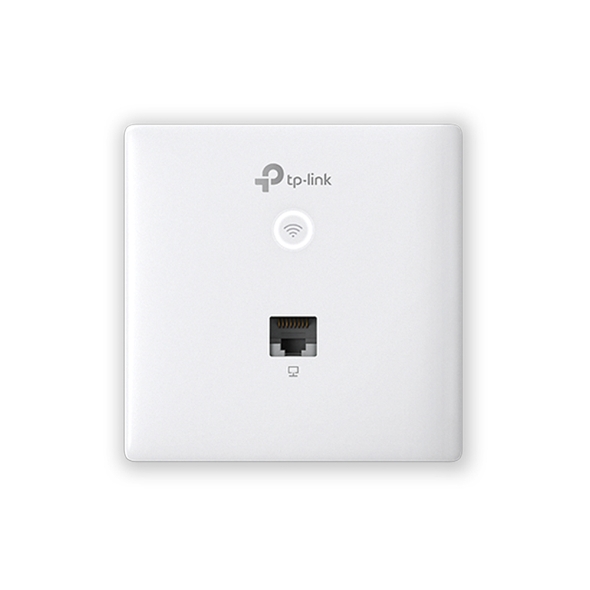

TP-Link Omada EAP230 - V1 - bezdrátový router - GigE, 802.11ac Wave 2 - 802.11a/ b/g/ n/ac Wave 2 - Dual Band - pro připevnění na zeď

Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

Interface
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port

Physical Security Lock
No

Button
LED/Wi-Fi Button, RESET
Power Supply
802.3af/802.3at PoE
Power Consumption
7 W
Dimensions
3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna
2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi
Mounting
Wall Plate Mounting
Hardware Watch Dog
Yes

WIRELESS FEATURES
Wireless Standards
IEEE 802.11n/g/b/ac
Frequency
2.4 GHz and 5 GHz
Signal Rate
• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps

Wireless Functions
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming
Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power
CE:
• =20 dBm (2.4 GHz, EIRP)
• =23 dBm (5 GHz, EIRP)
MANAGEMENT
Omada App
Yes

Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1,v2c
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes

OTHERS

Certification
CE, RoHS

Package Contents
• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
